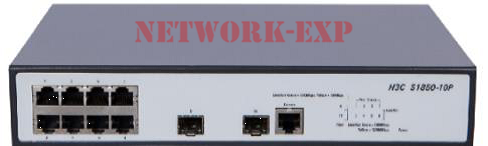

S1850-10P, 10-Port Gigabit Ethernet Switch
Product Feature
- Management
- Single IP Management
- SNMPv1, v2c, and v3
- Management Security
- Complete Session Logging
- Port Mirroring
- Description
- Reviews
-
Product Overview
- H3C 1850 Switch Series consists of advanced smart-managed fixed-configuration Gigabit switches designed for small businesses in an easy-to-administer solution. By utilizing the latest design in silicon technology, this series is one of the most power efficient in the market.
- S1850series has 4 models: three non-PoE models and one PoE+ model. All models are equipped with additional Gigabit SFP ports for fiber connectivity
- The series is part of the portfolio of H3C small business networking products. These switches provide a great value, and includes. features to satisfy even the most advanced small business networks. All models support rack mounting or desktop operation. Customizable features include basic Layer 2 features like VLANs and link aggregation, as well as advanced features such as Layer 3 static routing, IPv6, ACLs, and Spanning Tree Protocols.
Click Here to Download Datasheet
Item
S1850-10P
S1850-28P
S1850-28P-PWR
S1850-52P
Fixed ports
8 × 10/100/1000Base-T Ethernet ports
2 × 100/1000 BASE-X SFP ports
24 × 10/100/1000Base-T Ethernet ports
4 × 100/1000 BASE-X SFP ports
48 × 10/100/1000Base-T Ethernet ports
4 × 100/1000 BASE-X SFP ports
Management Ethernet ports
1 RJ-45 console port to access limited CLI port
Dimensions (H × W × D)
44 × 266 × 162 mm
44 × 440 × 173 mm
44 × 440 × 238 mm
44 × 440 ×238 mm
Weight
0.9 kg
2.25 kg
3.4 kg
3.15 kg
Fan
Fanless
Fanless
2
1
Switching capacity
20 Gbps
56 Gbps
56 Gbps
104 Gbps
Packet forwarding rate
15 Mpps
42 Mpps
78 Mpps
MAC table
8K
16K
Lightning protection level
6 KV
PoE power
Not support
Maximum per switch 190W
Maximum per port 30W
Not support
AC input voltage
AC：100V～240V AC，50/60Hz
Power consumption
≤ 9W
≤ 19W
≤ 235W
≤ 32W
Operating temperature
0ºC to 40ºC
Operating humidity
10% RH to 90% RH, non-condensing
-
