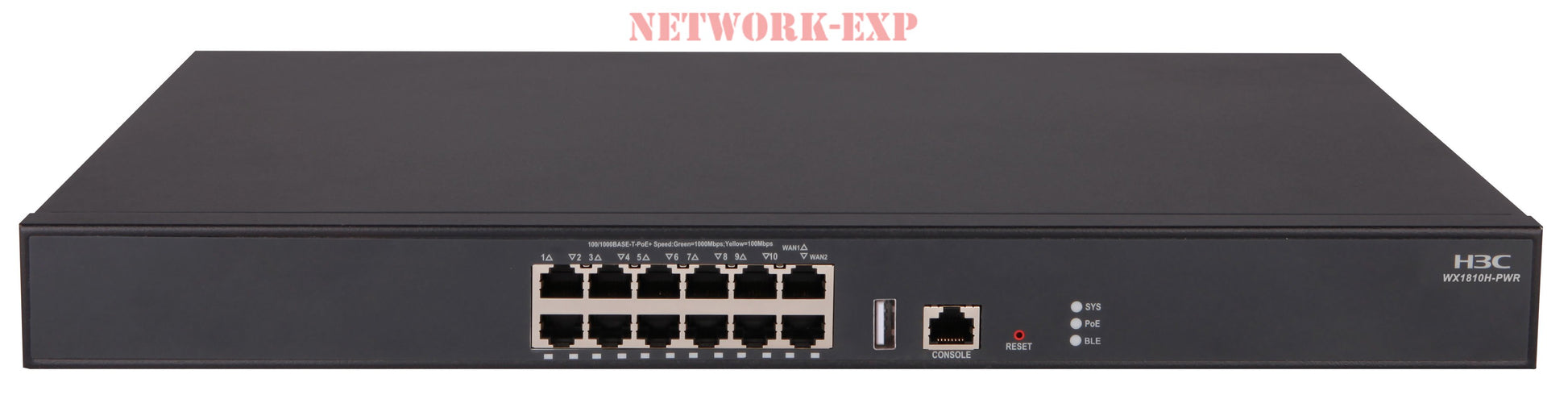

EWP-WX1810H-PWR
Product Feature
- All-in-one Gateway, All Inclusive AP License
- 802.11ac AP Management, H3C Oasis Wireless Cloud Platform Management
- Carrier-Class Wireless User Access Control and Management
- Intelligent Channel Switching, Intelligent AP Load Sharing, Flexible Forwarding Modes
- Layer 7 Wireless Intrusion Detection and Prevention Systems (wIDS / wIPS)
- Embedded PoE+ Capability
- Layered AC Architecture
- RealTime Spectrum Guard
- Description
- Reviews
-
Product Overview
The H3C WX1800H wireless Access Controller (AC) is well designed and positioned for SME network. It features gateway and AC function integration, reducing the number of devices and TCO in network. It adopts the innovative Comware V7 platform (referred to as V7 hereafter). V7 comes with the standard granular user control management, comprehensive RF resource management, 7x24 wireless security control, fast layer-2 and layer-3 roaming, strong QoS and IPv4/IPv6 dual stack. V7 adds in various novel wireless technologies such as multi-core control plane, Bonjour and Hotspot 2.0. It also supports multiple network configurations such as cloud management and layered AC.
Click Here to Download Datasheet
Hardware Specifications
Item
WX1804H-PWR
WX1810H-PWR
WX1820H
Dimensions (WxDxH)
220*145.5*27mm
440*260*43.6mm
220*145*22mm
Weight
0.6kg
3.6kg
0.95kg
Wireless throughput
500Mbps
800Mbps
800Mbps
Port
WAN 1*GE + LAN 4*GE(PoE+) + 1*USB
WAN 2*GE + LAN 10*GE (PoE+) + 1*USB
WAN 1*GE + LAN 4*GE + 1*USB+ 1*SD Card slot
Power supplies
100V AC～240V AC；50/60Hz
Operating and storage
temperature
0°C~40°C/-40°C~70°C
Operating and storage relative humidity
5%～95%
Safety compliance
UL 60950-1
CAN/CSA C22.2 No 60950-1
IEC 60950-1
EN 60950-1/A11
AS/NZS 60950
EN 60825-1
EN 60825-2
EN60601-1-2
FDA 21 CFR Subchapter J
EMC
ETSI EN 300 386 V1.3.3:2005
EN 55024: 1998+ A1: 2001 + A2: 2003
EN 55022 :2006
VCCI V-3:2007
ICES-003:2004
EN 61000-3-2:2000+A1:2001+A2:2005
EN 61000-3-3:1995+A1:2001+A2:2005
AS/NZS CISPR 22:2004
FCC PART 15:2005
GB 9254:1998
GB/T 17618:1998
MTBF
≥154 years
-
