EWP-WX1810H-PWR
EWP-WX1810H-PWR
Couldn't load pickup availability
Product Feature
- All-in-one Gateway, All Inclusive AP License
- 802.11ac AP Management, H3C Oasis Wireless Cloud Platform Management
- Carrier-Class Wireless User Access Control and Management
- Intelligent Channel Switching, Intelligent AP Load Sharing, Flexible Forwarding Modes
- Layer 7 Wireless Intrusion Detection and Prevention Systems (wIDS / wIPS)
- Embedded PoE+ Capability
- Layered AC Architecture
- RealTime Spectrum Guard
[qiege]
Product Overview

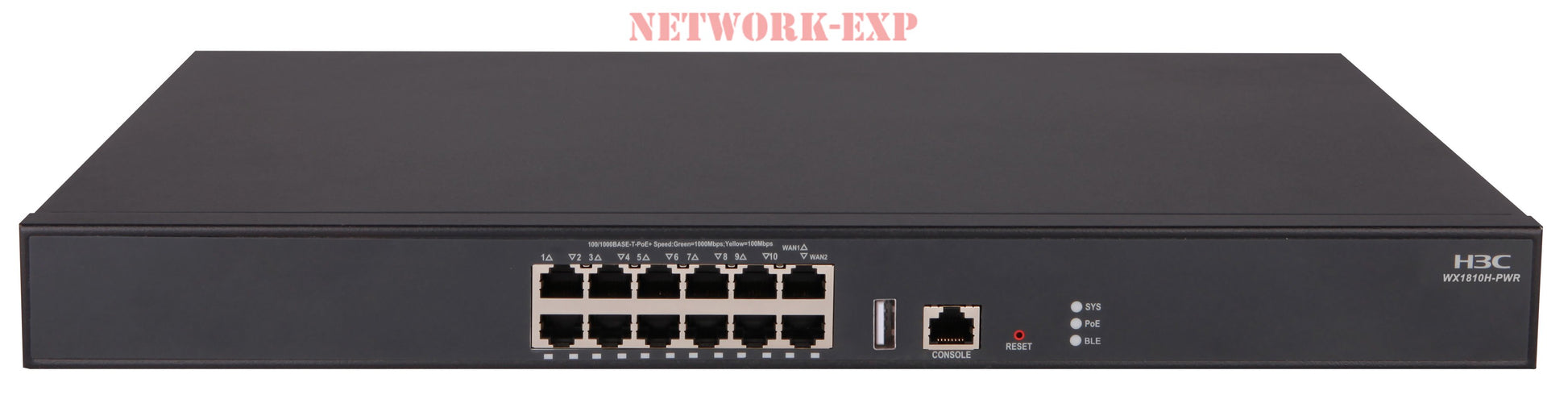

The H3C WX1800H wireless Access Controller (AC) is well designed and positioned for SME network. It features gateway and AC function integration, reducing the number of devices and TCO in network. It adopts the innovative Comware V7 platform (referred to as V7 hereafter). V7 comes with the standard granular user control management, comprehensive RF resource management, 7x24 wireless security control, fast layer-2 and layer-3 roaming, strong QoS and IPv4/IPv6 dual stack. V7 adds in various novel wireless technologies such as multi-core control plane, Bonjour and Hotspot 2.0. It also supports multiple network configurations such as cloud management and layered AC.
Click Here to Download Datasheet
Hardware Specifications
Item |
WX1804H-PWR |
WX1810H-PWR |
WX1820H |
Dimensions (WxDxH) |
220*145.5*27mm |
440*260*43.6mm |
220*145*22mm |
Weight |
0.6kg |
3.6kg |
0.95kg |
Wireless throughput |
500Mbps |
800Mbps |
800Mbps |
Port |
WAN 1*GE + LAN 4*GE(PoE+) + 1*USB |
WAN 2*GE + LAN 10*GE (PoE+) + 1*USB |
WAN 1*GE + LAN 4*GE + 1*USB+ 1*SD Card slot |
Power supplies |
100V AC~240V AC;50/60Hz |
||
Operating and storage temperature |
0°C~40°C/-40°C~70°C |
||
Operating and storage relative humidity |
5%~95% |
||
Safety compliance |
UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 EN60601-1-2 FDA 21 CFR Subchapter J |
||
EMC |
ETSI EN 300 386 V1.3.3:2005 EN 55024: 1998+ A1: 2001 + A2: 2003 EN 55022 :2006 VCCI V-3:2007 ICES-003:2004 EN 61000-3-2:2000+A1:2001+A2:2005 EN 61000-3-3:1995+A1:2001+A2:2005 AS/NZS CISPR 22:2004 FCC PART 15:2005 GB 9254:1998 GB/T 17618:1998 |
||
MTBF |
≥154 years |
