25G SFP28 SR Transceiver Hot Pluggable, Duplex LC, 850nm VCSEL, Multi-Mode, 100M, DDM

• Applications:
• 25GBase-SR Ethernet
• High speed I/O for file server
• Mass storage system I/O
• Bus extension application
• Features:
• Compliant with SFP28 MSA
• Compliant with SFF8472 diagnostic monitoring interface
• Up to 25.78Gb/s bi-directional data links
• Built-in CDR on both Transmitter and Receiver
• Hot Pluggable
• 850nm VCSEL laser transmitter
• Duplex LC connector
• 2-wire interface for management and diagnostic monitor
• Single +3.3V power supply
• Transmission distance of 70m over multi-mode OM3 fiber and 100m over multi-mode OM4 fiber
• RoHS Compliant

[qiege]

Overview:

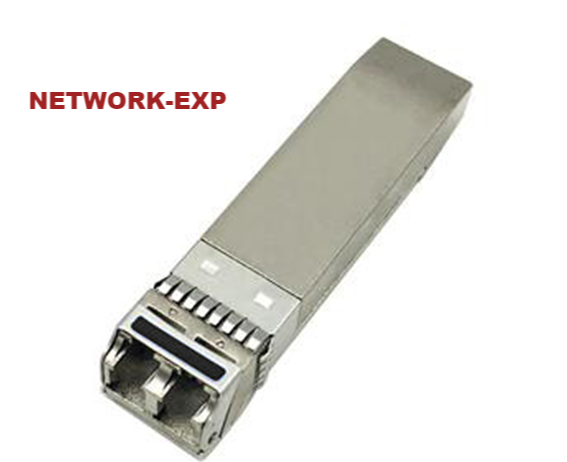

AS-SPP-N7-M85-X1D Small Form Factor Pluggable SFP28
transceivers are compliant with the current SFP28
Multi-Source Agreement (MSA) Specification. The high
performance uncooled 850nm VCSEL transmitter and
high sensitivity PIN receiver provide superior performance
for 25GBase Ethernet application up to 100m optical links.
