2540 24G 48G PoE+ 4SFP+ Switches: JL256A JL357A

2540 24G 48G PoE+ 4SFP+ Switches: JL256A JL357A

Price available upon request

Model

This product requires a quote. for pricing and availability.

Feature

  • Reliable and secure access

    Enhanced access security, ACLs, traffic prioritization, sFlow, and IPv6 host support.

  • Cloud management

    Speed remote deployment with Aruba Central.

  • Single view of the network

    Consistent wired and wireless experience with Aruba ClearPass Policy Manager and AirWave Network Management.

 Overview

Designed for the digital workplace, the Aruba 2540 Switch Series is optimized for mobile users. With advanced security and network management tools — Aruba ClearPass Policy Manager and Aruba AirWave — this layer-2 access switch is easy to deploy and manage.

With support from cloud-based Aruba Central, you can quickly set up remote branch sites with little or no IT help.



Specifications

  • 2540 24G PoE+ 4SFP+ Switch (JL356A):
    • 24 RJ-45 auto-sensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASE- TX, IEEE 802.3ab Type 1000 BASE-T, IEEE 802.3at PoE+); Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less

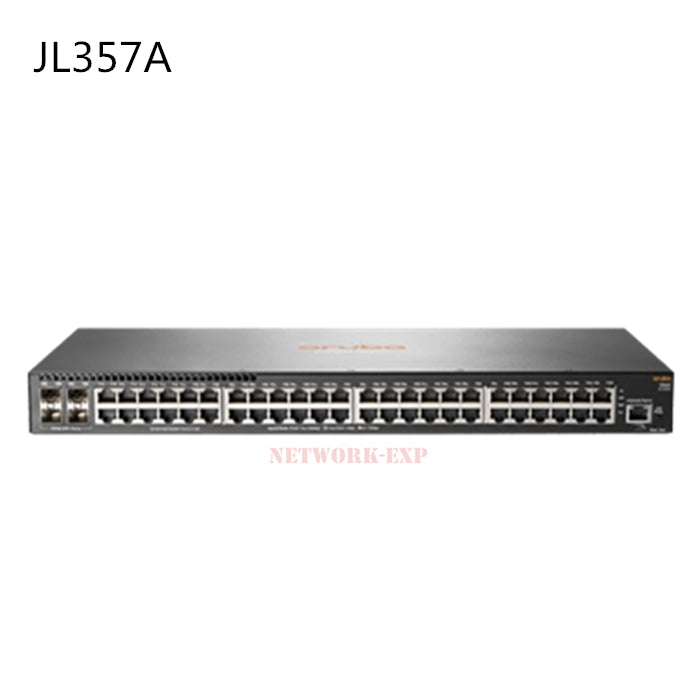

  • 2540 48G PoE+ 4SFP+ Switch (JL357A):
    • 48 RJ-45 auto-sensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10 BASE-T, IEEE 802.3u Type 100 BASE- TX, IEEE 802.3ab Type 1000 BASE-T, IEEE 802.3at PoE+); Duplex: 10 BASE-T/100 BASE-TX: half or full; 1000 BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less
Additional ports and slots
Memory and processor
  • Dual Core ARM Coretex A9 @ 1016 MHz, 1 GB DDR3 SDRAM
  • Packet buffer size: 12.38 MB 4.5 MB Ingress/7.785 MB Egress, 4 GB eMMC
