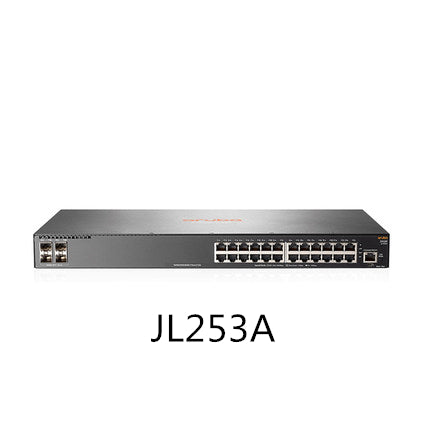

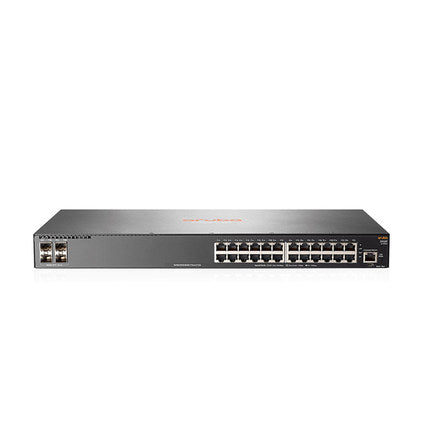

2930F 24G 4SFP+ Switch - JL253A Ethernet Switch 24-port Gigabit Layer 3 Enterprise Switch
Quick Details:
Products Status:Stock
Ports:24
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex & Half-Duplex
Certification:RADIUS
Switch Capacity:128 Gbps
Brand Name:H3C
Model Number:JL253A
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H):44.25*20.02*4.39cm
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
size
|
JL253A
|
Physical interface
|
24 or 48 RJ-45 auto-sensing 10/100/1000 ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type
1000BASE-T); duplex: 10BASE-T / 100BASE-TX : Half-duplex or full-duplex; 1000BASE-T: full-duplex only 4 SFP + 1 / 10GbE ports; no physical layer |
Additional ports
and slots |
1 dual-purpose port (RJ-45 or USB micro-B)
Serial console port |
Memory and processor
|
Dual-core ARM Cortex @ 1016MHz
1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB receive / 7.875MB send 4 GB eMMC |
Difference
|
Aruba 24-port 1 Gigabit switch,
With 4 10 Gigabit SFP + uplinks |
Delay
|
1000 Mb latency: less than 3.8 microseconds; 10 Gbps latency: less than 1.6 microseconds
|
Throughput
|
Up to 95.2 Mpps
|
Exchange capacity
|
128 Gbps
|
Management
characteristics |
Aruba AirWave; Central Network Management; IMC-Intelligent Management Center
Command line interface; Web browser; Configuration menu; SNMP manager; Telnet; RMON1; FTP; Out-of-band management (serial RS-232C or Micro USB) |
Input voltage
|
100 to 127/200 to 240 volts AC, rated value;
|
Power consumption
|
29.3 watts (maximum)
|
Cooling
|
100 British thermal units / hour (105.5 kJ / h)
|
Minimum specifications
(Width x depth x height) |
44.25 x 20.02 x 4.39 cm
|
weight
|
2.41 KG
|
