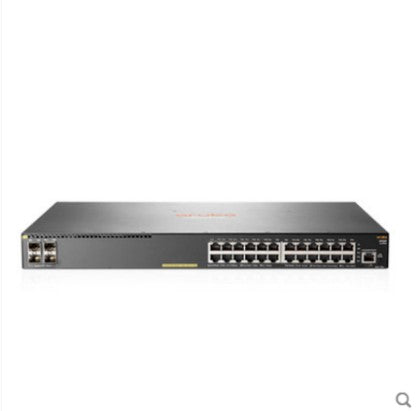

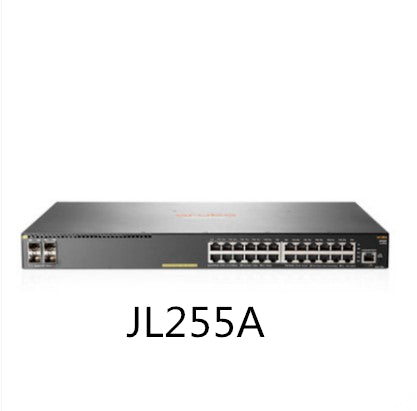

2930F 24G PoE + 4SFP + Switch (JL255A) Layer 3 10 Gigabit Switch
Quick Details:
Products Status:Stock
Ports:24
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex & Half-Duplex
Switch Capacity:128 Gbps
Brand Name:Aruba
Model Number:JL255A
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H):4.39 *44.25 *30.42 cm
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
Model
|
JL255A
|
Network port
|
24 or 48 RJ-45 auto-sensing 10/100/1000 PoE + ports (IEEE 802.3 type 10BASE-T, IEEE 802.3u type 100BASE-TX, IEEE 802.3ab type
1000BASE-T, IEEE 802.3at PoE +); duplex: 10BASE -T / 100BASE-TX: half-duplex or full-duplex; 1000BASE-T: full-duplex only 4 SFP + 1 / 10GbE ports; no physical layer |
size
|
44.25 x 30.42 x 4.39 cm
|
Environment
|
range of working temperature:
32 ° F to 113 ° F (0 ° C to 45 ° C); Up to 5000 feet, 0 ° C to 40 ° C (32 ° F to 104 ° F) up to 10,000 feet Operating relative humidity: 15% to 95%, non-condensing Storage temperature range: -40 ° F to 158 ° (-40 ° C to 70 ° C); up to 15000 feet Storage humidity: 15% to 95%, 149 ° F (65 ° C) |
Electrical
characteristics |
Frequency: 50/60 Hz
Voltage: 100-127/200-240 VAC, rated Maximum heat output: see product description Current: see product description Rated power: see product description Idle power: see product description PoE power: 125W PoE + (8G PoE + switch, JL258A) 370W PoE + (24G / 48G PoE + switch) |
Safety
certificate |
UL 69050-1: Second edition; EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013;
IEC 60950-1: 2005 + A1: 2009 + A2: 2013; CSA 22.2 No. 60950-1-07 2nd; EN 60825-1: 2007 / IEC 60825-1: 2007 Class 1 |
Radiation
|
EN 55022:2010/CISPR 22 Class A;
FCC CFR 47 Part 15 Class A;VCCI Class A; ICES-003 Class A;CNS 13438 |
Immunity
|
General: EN 55024: 2010 / CISPR 24
ESD: IEC 61000-4-2 Radiation: IEC 61000-4-3 EFT / Outbreak: IEC 61000-4-4 Surge: IEC 61000-4-5 Conduction: IEC 61000-4-6 Power frequency magnetic field: IEC 61000-4-8 Voltage dips and interruptions: IEC 61000-4-11 Harmonics: IEC 61000-3-2 Voltage flicker: IEC 61000-3-3 |
Management
and monitoring |
General: EN 55024: 2010 / CISPR 24
ESD: IEC 61000-4-2 Radiation: IEC 61000-4-3 EFT / Outbreak: IEC 61000-4-4 Surge: IEC 61000-4-5 Conduction: IEC 61000-4-6 Power frequency magnetic field: IEC 61000-4-8 Voltage dips and interruptions: IEC 61000-4-11 Harmonics: IEC 61000-3-2 Voltage flicker: IEC 61000-3-3 |
Plug-in ports
and slots |
1 dual-purpose port (RJ-45 or USB micro-B)
Serial console port |
Memory and
processor |
Dual-core ARM Coretex @ 1016MHz (48G model) or dual-core ARM Coretex A9 @ 1016MHz (8G / 24G model)
1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB receive / 7.875MB send 4 GB eMMC |
weight
|
3.9 kg
|
