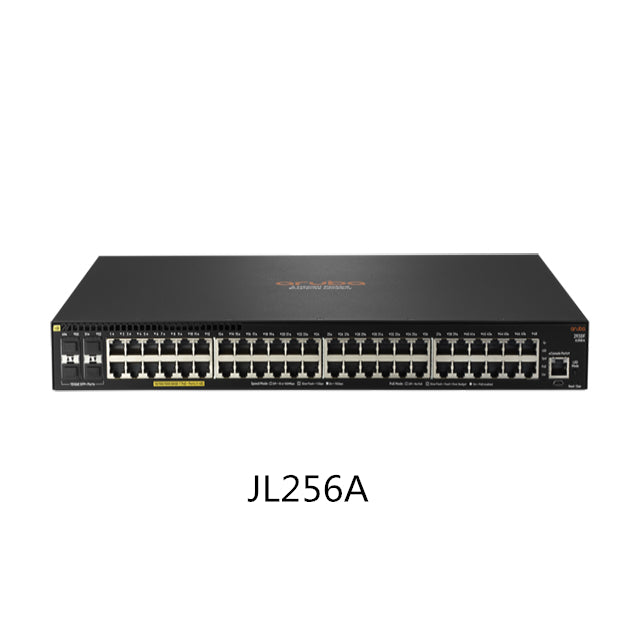

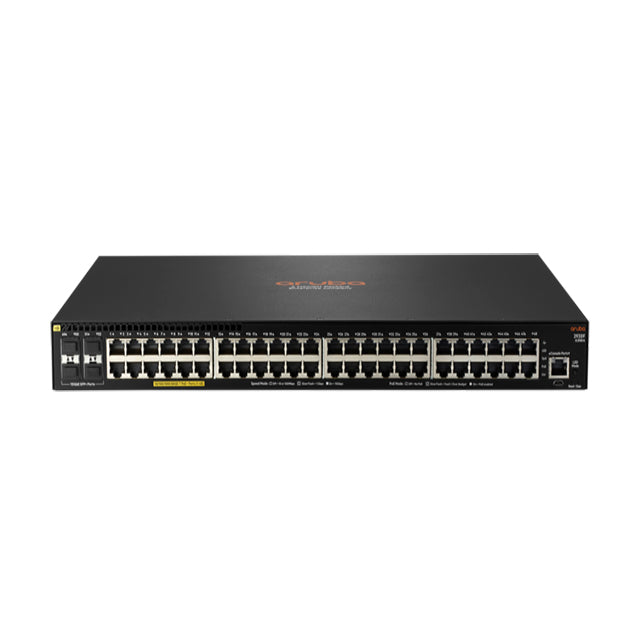

2930F 48G POE + 4SFP Switch-JL256A Layer 3 10 Gigabit Switch
Quick Details:
Products Status:Stock
Ports:≥ 48
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex & Half-Duplex
Certification:CE & RoHS
Switch Capacity:176 Gbps
Brand Name:H3C
Model Number:JL256A
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H):4.39*44.25*30.42 cm
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
I/O PORTS AND SLOTS
|
2930F 48G PoE+ 4SFP+ Switch (JL256A)
24 or 48 RJ-45 autosensing 10/100/1000 PoE+ ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T, IEEE 802.3at PoE+); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 4 SFP+ 1/10GbE ports; PHY-less |
ADDITIONAL PORTS AND SLOTS
|
1 dual-personality (RJ-45 or USB micro-B) serial console port
|
PERFORMANCE
|
1000 Mb Latency: < 3.8 µs (64-byte packets)
10 Gbps Latency (JL253A-JL258A): < 1.6 µs (64-byte packets) Routing table size: 10000 entries (IPv4), 5000 entries (IPv6) MAC address table size: 32768 entries 48G 4SFP+ models (JL254A, JL256A): Throughput: up to 112.0 Mpps Switching capacity: 176 Gbps 24G 4SFP+ models (JL253A, JL255A): Throughput: up to 95.2 Mpps Switching capacity: 128 Gbps 48G 4SFP models (JL260A, JL262A, JL557A): Throughput: up to 77.4 Mpps Switching capacity: 104 Gbps Other switches (JL258A, JL259A, JL261A): Throughput: up to 41.7 Mpps Switching capacity: 56 Gbps |
MEMORY AND PROCESSOR
|
Dual Core ARM Coretex @ 1016 MHz (48G models) or Dual Core ARM Coretex A9 @ 1016 MHz (8G/24G models)
1 GB DDR3 SDRAM Packet buffer size: 12.38 MB 4.5MB Ingress/7.875MB Egress 4 GB eMMC |
PHYSICAL CHARACTERISTICS
|
(H) 4.39 cm x (W) 44.25 cm x (D) 30.42 cm
(1.73" x 17.42" x 11.98") (1U height) |
ENVIRONMENTAL
|
Operating temperature range:
32°F to 113°F (0°C to 45°C); up to 5000 Feet, 0°C to 40°C (32°F to 104°F) up to 10000 Feet Operating relative humidity: 15% to 95%, noncondensing Storage temperature range: -40°F to 158°F (-40°C to 70°C); up to 15000 Feet Storage humidity: 15% to 95% @ 149°F (65°C) Acoustic: See data sheet |
ELECTRICAL CHARACTERISTICS
|
Frequency: 50/60 Hz
Voltage: 100 - 127 / 200 - 240 VAC, rated Maximum heat dissipation: See data sheet Current: See data sheet Maximum power rating: See data sheet Idle power: See data sheet PoE power: 125 W PoE+ (8G PoE+ switch, JL258A) 370 W PoE+ (24G/48G PoE+ switches) Notes: Maximum power rating and maximum heat dissipation are the worst-case theoretical maximum numbers provided for planning the infrastructure with fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all modules populated. Idle power is the actual power consumption of the device with no ports connected (not applicable to the 8G switch). |
SAFETY CERTIFICATIONS
|
UL 69050-1: 2nd Edition; EN 60950-1:2006 +A11:2009 +A1:2010 +A12:2011+A2:2013; IEC 60950-1:2005 +A1:2009 +A2:2013; CSA 22.2 No.
60950-1-07 2nd; EN 60825-1:2007 / IEC 60825-1:2007 Class 1 |
EMISSIONS
|
EN 55022:2010/CISPR 22 Class A; FCC CFR 47 Part 15 Class A; VCCI Class A; ICES-003 Class A; CNS 13438
|
MANAGEMENT AND MONITORING
|
Aruba AirWave Network Management
IMC - Intelligent Management Center Command line interface Graphical user interface (Web browser) Configuration menu SNMP manager Telnet; RMON1; FTP Out-of-band management (serial RS-232C or micro USB) |
WARRANTY AND SUPPORT
|
Limited lifetime warranty
See www.hpe.com/networking/warrantysummary for warranty and support information included with your product purchase. Software releases To find software for your product, refer to www.hpe.com/networking/support; for details on the software releases available with your product purchase, refer to www.hpe.com/networking/warrantysummary. Documentation For documentation including manuals for your product, refer to www.hpe.com/networking/library. |
