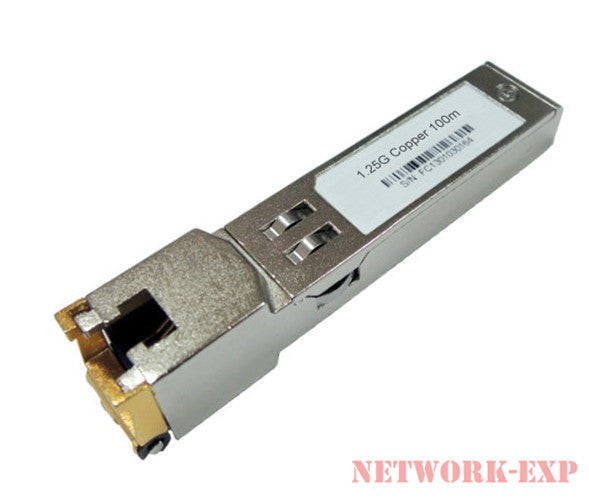

AS-SFP-CJ-Txx-X1( SFP-1000T ) 1.25G SFP-10/100/1000T Transceiver Hot Pluggable, RJ-45, Active Copper SFP

Features:

• 10/100/1000Base-T Application
• High speed I/O for file server
•  Mass storage system I/O
•  Bus extension application
•  Compliant with IEEE802.3-2002 and 802.3ab Standard
•  Compliant with SFP MSA
•  Hot Pluggable
•  Auto-detect MDI/MDI-X
•  Compatible with 1000BASE-X and 1000Base-T auto-negotiation
•  10/100/1000Base-T operation in host system with SGMII interface
•  RJ-45 connector
•  Single +3.3V power supply voltage
•  Link length up to 100m with four-pair Cat.5 UTP cable
•  RoHS Compliant

[qiege]

Overview:
AS-SFP-CJ-Txx-X1 Small Form Factor Pluggable SFP
Copper transceivers are compliant with the current SFP
Multi-Source Agreement ( MSA ) Specification. The high
performance designed is integrated full duplex data link at
1.25Gbps over four pair Category 5 UTP cable up to 100m
links. User can be accessed SFP serial ID information with
address of A0h via the 2-wire serial bus I2C protocol.
The PHY IC can also be accessed via 2-wire serial bus at
address ACh.
