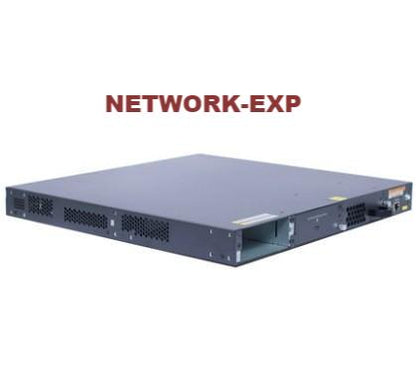

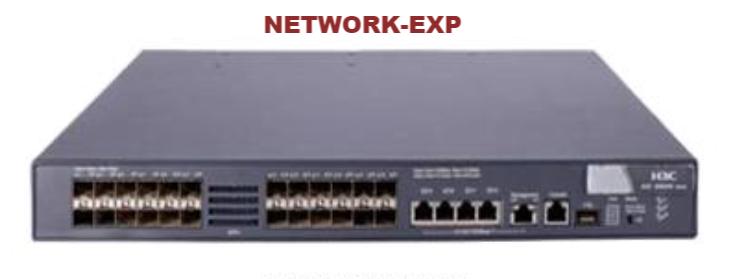

LS-5820X-28S-H3 Ethernet Switch

Dimensions

(length × width × height) (unit: mm)

440×467×86

440×427×43.6

440×427×43.6

weight

≤17kg

≤8.5kg

≤11.2kg

Management port

1 console port

1 console port, 1 outlet port

1 console port, 1 outlet port

USB interface

1

1

1

Fixed service port

14 1/10G SFP+ ports

4 10/100/1000M electrical ports

24 1/10G SFP+ ports

4 10/100/1000M electrical ports

24 1/10G SFP+ ports

2 10/100/1000M electrical ports

Number of slots in the service

3

0

0

Business card type

4-port 1G/10G SFP+ interface module

2-port 1G/10G SFP+ interface module

Firewall module

IPS module

Wireless control service board (large specification)

no

no

Input voltage

communicate with

Rated voltage range: 100V ~ 240V AC, 50/60Hz

Maximum voltage range: 90V ~ 264V AC, 47/63Hz

DC

Rated voltage range:

-48V to -60V DC

Power consumption (no load)

AC: 105W

DC: 103W

AC: 128W

DC: 124W

135W

Power consumption (full load)

AC: 245W

DC: 241W

AC: 185W

DC: 176W

205W

Working temperature

0°C～45°C

Working environment relative humidity (non-condensing)

10% to 90%

Exchange capacity

680Gbps/6.8Tbps

Packet forwarding rate (machine)

336Mpps

366Mpps

363Mpps

Forwarding mode

Store-forward mode

Store-forward mode, cut through mode

Link aggregation

Supports GE port and 10GE port aggregation.

Support static aggregation, dynamic aggregation

flow control

Support IEEE802.3x flow control, support back pressure

Jumbo Frame

stand by

MAC address table

Support black hole MAC address

Supports setting the maximum number of port MAC addresses.

VLAN

Supports VLANs based on ports, protocols, MACs, and IP subnets (4094)

Support QinQ and flexible QinQ

Support for Voice VLAN

VLAN mapping

Support 1:1 VLAN Mapping

Support N:1 VLAN Mapping

Support 2:2 VLAN Mapping

DHCP

Support DHCP Client

Support DHCP Snooping

Support DHCP Relay

Support DHCP Server

Support DHCPv6

IRF2 intelligent flexible architecture

Support IRF2 intelligent flexible architecture

Support distributed device management, distributed link aggregation, distributed elastic routing

Support for stacking via standard 10 Gigabit Ethernet interfaces

Support local stacking and remote stacking

IPv4 routing

Support static routing, RIP, OSPFv2, BGP, ISIS

Support equal cost routing, routing policy, VRRP, policy routing

IPv6 routing

Support static routing, RIPng, OSPFv3, BGP4+ for IPV6, ISISv6

Support equal cost routing, routing policy, VRRP, policy routing

URPF

Support reverse route check

BFD

OSPF, BGP, IS-IS, Static Route, RSVP-TE, VRRP

Tunnel

Supports IPv6 manual tunnels, 6to4 tunnels, ISATAP tunnels, IPv4 over IPv4 tunnels, IPv4 over IPv6 tunnels,IPv6 over IPv6 tunnel, GRE tunnel

IPv4 multicast

Support IGMP Snooping v2/v3

Support IGMP v1/v2/v3

Support PIM-DM/SM/SSM

Support MSDP, MBGP

Support multicast VLAN, multicast VLAN+

Support for multicast policies

IPv6 multicast

Support MLD Snooping v1/v2

Support MLD v1/v2

Support PIM-DM/SM/SSM for IPV6

Support MBGP for IPv6

Support IPv6 multicast VLAN, IPv6 multicast VLAN+

MPLS VPN (S5800 series)

Support MPLS

Support VPLS

Support MCE

Broadcast/multicast/unicast storm suppression

Supports storm suppression based on port rate percentage

Support PPS-based storm suppression

Support kbps-based storm suppression

MSTP

Support STP/RSTP/MSTP protocol

Support STP Root Guard, BPDU Guard

RRPP

Support RRPP protocol and RRPP multi-instance

Smart link and Monitor link

Support Smart Link and Smart Link multi-instance

Support for Monitor link

QoS/ACL

Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, providing source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, port, protocol, VLAN Flow classification

Packet filtering with time range support

Support for large capacity bidirectional ACLs

Limits the rate at which packets are received on the port and the rate at which packets are sent.

Support packet redirection

8 output queues per port

Support flexible queue scheduling algorithm, which can be set based on ports and queues at the same time, supporting SP, WDRR, WFQ, SP+WDRR four modes

Supports 802.1p and DSCP priority re-marking of packets

Support WRED congestion avoidance mechanism

Mirror

Support N:1 port mirroring and flow mirroring

Support multiple mirrored viewing ports

Support port remote mirroring (RSPAN)

Support for remote mirroring of enhanced ports (ERSPAN)

Safety features

Support user hierarchical management and password protection

Support AAA authentication and RADIUS authentication

Supports MAC address authentication, 802.1x authentication, and portal authentication.

Support HWTACACS

Support for SSH 2.0

Support IP+MAC+ port binding

Support for IP Source Guard

Support for HTTPs, SSL

Support PKI (Public Key Infrastructure)

Support EAD

ARP detection can be performed based on DHCP snooping security entries, 802.1x entries, or IP/MAC static binding entries.

DHCP snooping support to prevent fraudulent DHCP servers

Support BPDU guard, Root guard

Supports plain text and MD5 cipher text authentication for OSPF and RIPv2 packets.

OAA

Firewall card

IPS card

Wireless control service board

Traffic management

Support IPFIX (only supported by S5800 series)

Support sFlow

Loading and upgrading

Support XModem protocol, FTP, TFTP to implement load upgrade

management

Supports the configuration of the command line interface (CLI), Telnet, and console port.

Support SNMPv1/v2/v3

Support RMON (Remote Monitoring) alarms, events, history

Support iMC network management system and support WEB network management

Support system logs and hierarchical alarms

Support cluster management HGMPv2

Support power alarm function

Support fan and temperature alarm

Support NTP

maintain

Support Ping, Tracert, NQA, Track

Support Virtual Cable Test, DLDP

Support 802.1ag, support 802.3ah

Support USB for file upload and download
