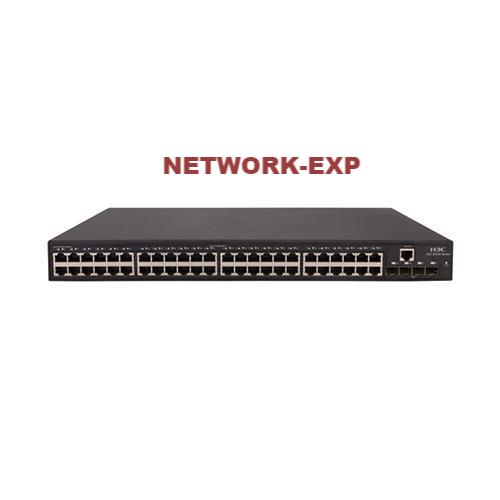

H3C S5130S-52P-EI-GL Ethernet Switch
H3C S5130S-52P-EI-GL Ethernet Switch
Couldn't load pickup availability
Product Feature
- Software Defined Network (SDN)
- Intelligent Resilient Framework 2 (IRF2)
- Intelligent Resilient Framework 3.1 (IRF3.1)
- Comprehensive Security Control Policies
- Abundant QoS
- Excellent manageability
- Smart Management Center (SmartMC)
- High Availability
- Professional Anti-lightning
[qiege]
Click here to jump to Amazon to buy
Overview
H3C S5130S-EI Switch Series –A simple, cost-effective and easy to deploy Layer 2+ access switching solution with POE+ that offers enhanced security, high-density GEand 10GbE uplinks, static route, RIP, OSPF, SDN and IRF enabled, flexible management, which meet the requirements for SME access, enterprise desktop access and high density campus access.
Click Here to Download Datasheet
Hardware Specifications
|
Feature |
S5130 S-10P- EI |
S5130 S-12TP-EI |
S5130 S-20P-EI |
S5130 S-28P- EI |
S5130 S-52P- EI |
S5130 S-10P-HPWR-EI |
S5130 S-12TP-HPWR-EI |
S5130 S-20P- PWR- EI |
S5130S-28P-PWR- EI |
S5130S-28P-HPWR-EI |
S5130S-52P-PWR- EI |
|
Switching capacity |
20Gbps |
24Gbps |
40Gbps |
56Gbps |
104Gbps |
20Gbps |
24Gbps |
40Gbps |
56Gbps |
56Gbps |
104Gbps |
|
Forwarding capacity |
15 Mpps |
18 Mpps |
30 Mpps |
42 Mpps |
78 Mpps |
15 Mpps |
18 Mpps |
30 Mpps |
42 Mpps |
42 Mpps |
78 Mpps |
|
Dimensions (W × D × H) |
266× 161× 43.6 |
266× 161× 43.6 |
330× 230× 43.6 |
440× 160× 43.6 |
440× 230× 43.6 |
330× 230× 43.6 |
330× 230× 43.6 |
330× 230× 43.6 |
440× 260× 43.6 |
440× 260× 43.6 |
440× 400× 43.6 |
|
Weight |
≤1.5 kg |
≤1.5 kg |
≤2 kg |
≤2.5 kg |
≤3.5 kg |
≤3kg |
≤3kg |
≤3kg |
≤4kg |
≤4.5kg |
≤6kg |
|
10/100/1000B ase-T port |
8 |
8+2 (Combo with first 2 SFP ports) |
16 |
24 |
48 |
8 |
8+2 (Combo with first 2 SFP port) |
16 |
24 |
24 |
48 |
|
SFP port |
2 |
4 |
4 |
4 |
4 |
2 |
4 |
4 |
4 |
4 (Combo) |
4 |
|
Input voltage |
AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range -54V～-57V DC (S5130S-52P-PWR-EI, S5130S-28P-HPWR-EI with RPS1600-A) |
||||||||||
|
Flash/SDRAM |
256MB/512MB |
||||||||||
|
Power consumption (full configuration) |
12W |
15W |
19W |
23W |
41W |
153W (includ- ing 125W PoE) |
156W (include- ing 125W PoE) |
263W (include- ing 210W PoE) |
240W (include-ing 190W PoE) |
446W (include-ing 370W PoE) |
467W (include-ing 370W PoE) |
|
Operating temperature |
0°C~45°C |
||||||||||
|
Operating relative humidity(noncondensing) |
5%~95% |
||||||||||
