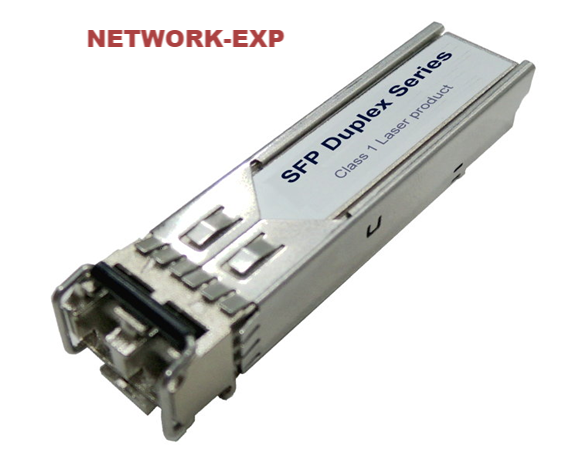

SFP-SX 1.25G SFP-1000SX Transceiver Hot Pluggable, Duplex LC, 850nm VCSEL, Multi Mode, 550M, DDM

Features:

• Compliant with IEEE802.3z Gigabit Ethernet Standard
•  Compliant with SFF8472 diagnostic monitoring interface
•  Compliant with SFP MSA
•  Hot Pluggable
•  850nm VCSEL laser transmitter.
•  Duplex LC connector
• 2-wire interface for management and diagnostic monitor
• Single +3.3V power supply voltage
• Transmission distance of 550m over MM fiber

 [qiege]

Overview:

AS-SFP-C7-M85-X5D Small Form Factor Pluggable SFP transceivers are compliant with the current SFP Multi-Source Agreement ( MSA ) Specification. The high performance 850nm VCSEL transmitter & high sensitivity PIN receiver provide superior performance for Ethernet applications up to 550m MMF optical links.

Applications: Features:

• 1000Base-SX Ethernet
• 1x Fiber Channel
• High speed I/O for file server
• Mass storage system I/O
• Bus extension application
