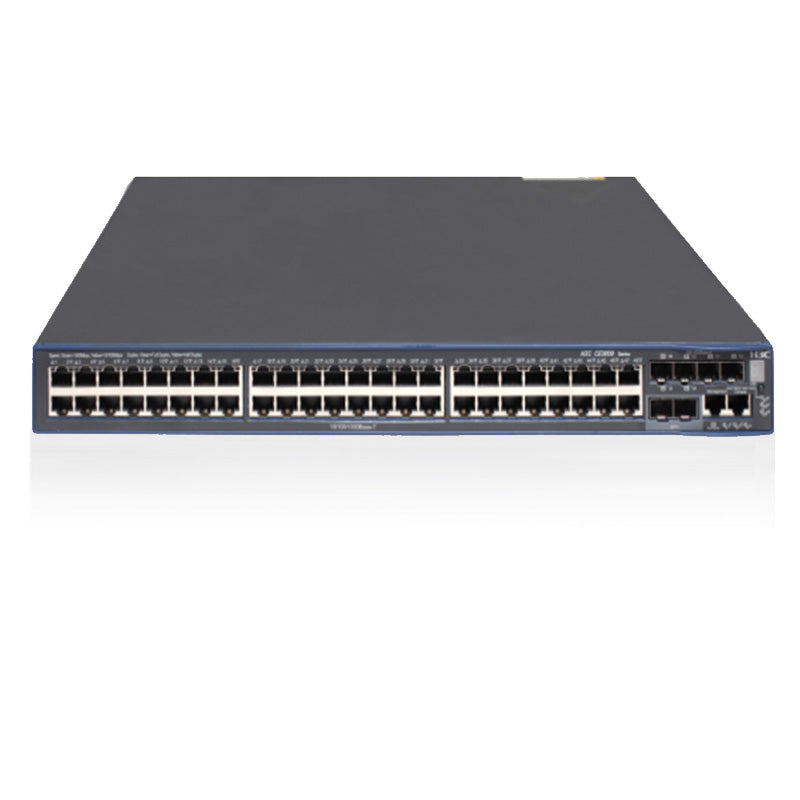

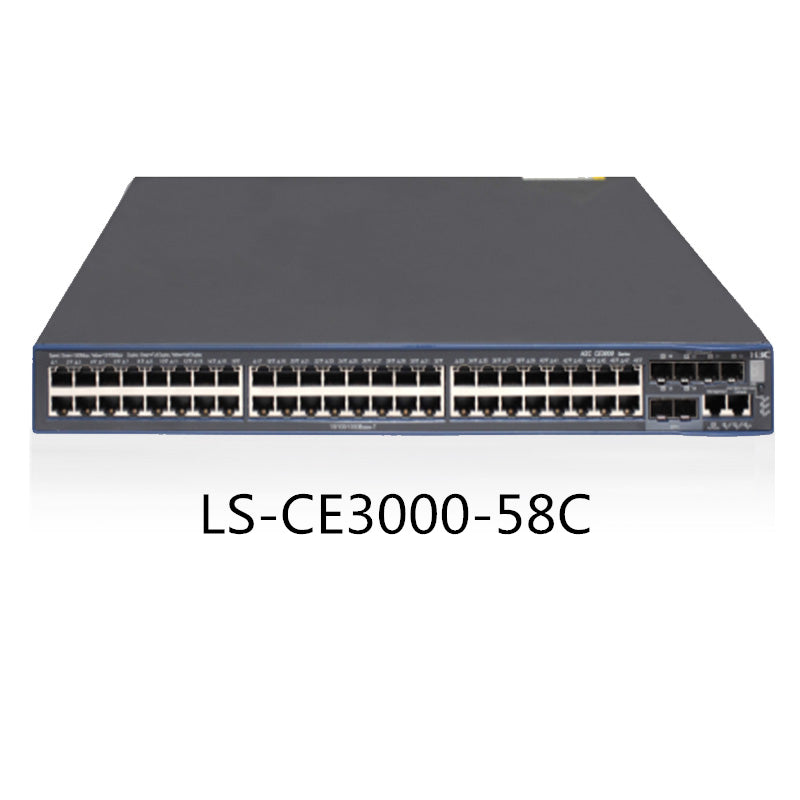

CE3000-58C L3 Ethernet Switch Host 48-port Gigabit Switch is suitable for carrier-specific

$2,990.00
SKU LS-CE3000-58C

Quick Details:

Products Status:Stock

Ports:≥ 48

Transmission Rate:10/100/1000Mbps

Function:QoS

Communication Mode:Full-Duplex

Certification:RADIUS

Switch Capacity:368Gbps

Brand Name:H3C

Model Number:LS-CE3000-58C

Place of Origin:Guangdong, China

Warranty:1year

Dimensions (W x D x H):440*420*43.6mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :

Quantity(Pieces)

1 - 1

>1

Est. Time(days)

30

To be negotiated

Product Description:

Support features
CE3000-34C
CE3000-58C
CE3000-32F-EI
Exchange capacity
368Gbps
Packet forwarding rate
132Mpps
168Mpps
156Mpps
Front panel service port
24 10/100/1000Base-T Ethernet ports, 4 100/1000Base-X Gigabit SFP ports, 2 SFP+ ports
48 10/100/1000Base-T Ethernet ports, 4 100/1000Base-X Gigabit SFP ports, 2 SFP+ ports
24 100/1000M SFP ports, 4 1/10G SFP+ ports
Dimensions (width × depth × height) (unit: mm)
440×360×43.6
440×420 ×43.6
441×427×43.6
weight
< 7.5kg
< 8.5kg
< 8.5kg
Expansion slot
2 expansion slots
1 expansion slot
Management port
1 console port, 1 management network port
Optional interface module
Single port 10GE XFP interface module
2-port 10GE XFP interface module
2-port 10GE CX4 interface module
2-port SFP+ interface module
2-port SFP interface module
2-port 1/10G BASE-T Ethernet electrical interface module
8-port SFP interface module (CE3000-34C only supports Slot1)
8-port 10/100/10000Base-T electrical interface module (CE3000-34C is only supported by Slot1)
4-port 1G/10G SFP+ interface module
2-port 1G/10G SFP+ interface module
2-port 1/10G BASE-T Ethernet electrical interface module
4-port 1/10G BASE-T Ethernet electrical interface module
16-port 10/100/1000MBase-T electrical port module
16-port 100/1000M SFP port module
Wireless control service board
Port aggregation
Support LACP
Support manual aggregation
Supports GE port and 10GE port aggregation.
Port characteristics
Support IEEE802.3x flow control (full duplex)
Supports storm suppression based on port rate percentage
Support PPS-based storm suppression
MAC address table
Support black hole MAC address
Supports setting the maximum number of port MAC addresses
VLAN
Support for port-based VLANs
Support for MAC-based VLANs
Protocol-based VLAN
IP subnet-based VLAN
Support QinQ, flexible QinQ
Support VLAN mapping
Support for Voice VLAN
Support GVRP
Layer 2 ring network protocol
Support STP/RSTP/MSTP
Support RRPP
Support Smart link
DHCP
DHCP Client
DHCP Snooping
DHCP Relay
DHCP Server
DHCP Snooping option82/DHCP Relay option82
IRF2
Intelligent flexible architecture
Support IRF2 intelligent flexible architecture
Support distributed device management, distributed link aggregation, distributed elastic routing
Support stacking through standard Ethernet interfaces, etc.
Support local stacking and remote stacking
IP routing
Support static routing
Support RIPv1/v2, RIPng
Support OSPFv2/v3
Support BGP4, BGP4+ for IPv6
Support equal cost routing, policy routing
Support VRRP/VRRPv3
IPv6
Support ND (Neighbor Discovery)
Support PMTU
Support IPv6-Ping, IPv6-Tracert, IPv6-Telnet, IPv6-TFTP
Support manual configuration of the tunnel
Support 6to4 tunnel
Support for ISATAP tunnel
Support IPv6 in IPv6 tunnel
Support IPv4 in IPv6 tunnel
Support GRE tunnel
Multicast
Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2
Support PIM Snooping
Support MLD Proxy
Support for multicast VLAN
Support IGMP v1/v2/v3, MLD v1/v2
Support PIM-DM, PIM-SM, PIM-SSM
Support MSDP, MBGP
MPLS
Support MPLS forwarding, including MPLS LER/MPLS LSR
Support LSP
Support LDP
Support MPLS TE
Support L2VPN
Support L3VPN
Support VPLS
Support MCE
Mirror
Support for flow mirroring
Support N: 4 port mirroring
Support for local and remote port mirroring
Support ACL\QoS
Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, providing source MAC address, destination MAC address, source IP
(IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, VLAN traffic classification
Support Time Range ACL
Supports two-way ACL policies in the inbound and outbound directions
Supports sending ACLs based on VLANs.
Limits the rate at which packets are received on the port and the rate at which packets are sent.
Support packet redirection
Support CAR (Committed Access Rate) function
8 output queues per port
Supports flexible queue scheduling algorithms that can be set based on both ports and queues
Supports 802.1p and DSCP priority re-marking of packets
Safety features
Support user hierarchical management and password protection
Support 802.1X authentication/centralized MAC address authentication
Support Guest VLAN
Support RADIUS authentication
Support for SSH 2.0
Support port isolation
Support port security
Support PORTAL certification
Support EAD
DHCP snooping can be supported to prevent fraudulent DHCP servers
Support dynamic ARP detection to prevent man-in-the-middle attacks and ARP denial of service
Support BPDU guard, Root guard
Support uRPF (unicast reverse path detection), eliminate IP source address spoofing, prevent viruses and attacks
Support IP/Port/MAC binding function
Supports OSPF, RIPv2 packet authentication, and MD5 cipher text authentication.
Management and maintenance
Support XModem/FTP/TFTP load upgrade
Supports command line interface (CLI), Telnet, and console port configuration.
Support SNMPv1/v2/v3, WEB network management
Support RMON (Remote Monitoring) alarms, events, history
Support iMC Intelligent Management Center
Support system log, hierarchical alarm, debugging information output
Support HGMPv2
Support NTP
Support power supply alarm function, fan, temperature alarm
Support Ping, Tracert
Support VCT (Virtual Cable Test) cable detection function
Supports the Device Link Detection Protocol (DLDP) unidirectional link detection protocol.
Support LLDP
Support loopback-detection port loopback detection
Support IPFIX
Input voltage
AC
Rated voltage range: 100V ~ 240V AC, 50/60Hz
Maximum voltage range: 90V ~ 264V AC, 47/63Hz
Rated voltage range: 100V ~ 240V AC, 50/60Hz
Maximum voltage range: 90V ~ 264V AC, 47/63Hz
DC
Rated voltage range: -48V ~ -60V DC
Maximum voltage range: -36V~72V DC
Rated voltage range:
-48V to -60V DC
Power consumption (at full load)
141W
191W
146W
Working temperature
0°C~50°C (up to 45°C when using 40KM/80KM XFP optical module)
0℃~50℃
Working environment relative humidity (non-condensing)
5%~95%
10%~90%
