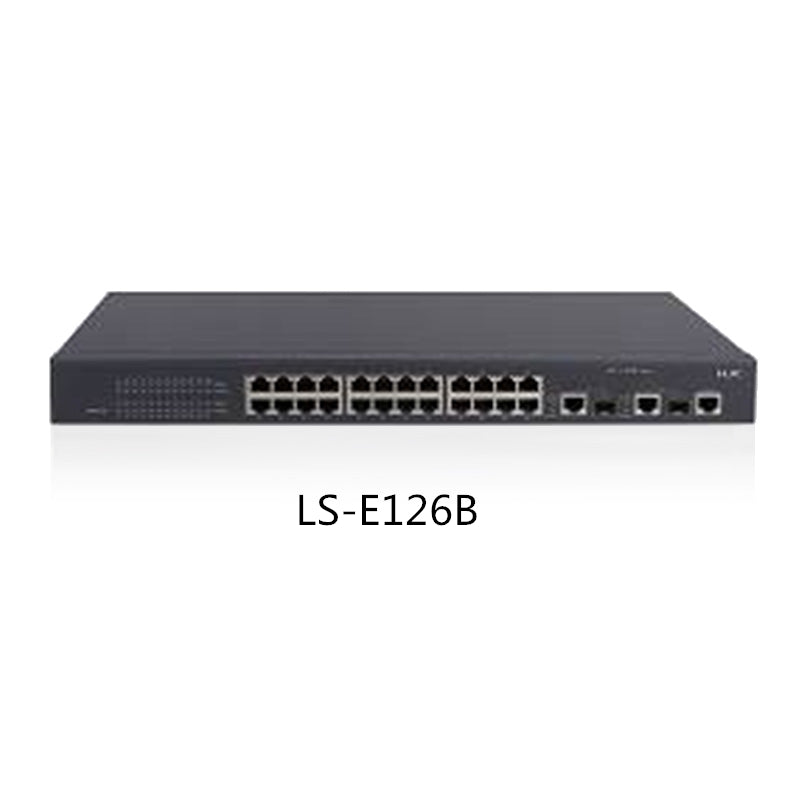

E126 Ethernet Switch 24-port 100M + 2 Gigabit Layer 2 Education Management Switch
$500.00
SKU LS-E126
Quick Details:
Products Status:Stock
Ports:24
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex
Certification:RADIUS
Switch Capacity:19.2Gbps
Brand Name:H3C
Model Number:LS-E126
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*160*43.6
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
H3C E126A / E152 Education Network Switch Specifications Features
|
Item
|
H3C E126A
|
H3C E152
|
|
|
Dimensions (length × width × height)
(Unit: mm) |
440×160×43.6
|
436×260×43.6
|
|
|
Weight
|
≤3kg
|
≤4.0kg
|
|
|
Service port description
|
Fixed port
|
24 10 / 100Base-TX Ethernet ports, 2 10/100 / 1000Base-T Ethernet ports and 2 multiplexed 1000Base-X SFP Gigabit Ethernet ports
|
48 10 / 100Base-TX Ethernet ports, 4 1000Base-X SFP Gigabit Ethernet ports
|
|
Available modules
|
E126A：
SFP-FE-SX-MM1310-A SFP-FE-LX-SM1310-A SFP-GE-SX-MM850-A SFP-GE-LX-SM1310-A SFP-STACK-Kit SFP-FE-LX-SM1310-BIDI SFP-FE-LX-SM1550-BIDI SFP-GE-LX-SM1310-BIDI SFP-GE-LX-SM1490-BIDI E152： SFP-GE-SX-MM850-A SFP-GE-LX-SM1310-A SFP-GE-LH40-SM1310 SFP-GE-LH40-SM1550 SFP-GE-LH70-SM1550 SFP-GE-T SFP-GE-LX-SM1310-BIDI SFP-GE-LX-SM1490-BIDI |
||
|
Management port
|
1 Console port
|
||
|
Power supply
|
With AC input:
Rated voltage range: 100V ～ 240V AC; 50 / 60Hz Maximum voltage range: 90V ～ 264V AC; 47Hz ～ 63Hz |
||
|
Maximum power consumption of the whole machine
|
17W
|
50W
|
|
|
Working temperature
|
0℃～45℃
|
||
|
Relative humidity in the working environment (non-condensing)
|
10%～90%
|
||
|
Environmental standards
|
Meet EU RoHS standards Meet the current requirements of the "Administrative Measures for the Pollution Control of Electronic Information Products" |
||
H3C E126A / E152 Education Network Switch Business Features
|
Characteristic
|
H3C E126A
|
H3C E152
|
|||
|
Wire-speed Layer 2 switching
|
Exchange capacity
|
All ports support wire-speed forwarding
19.2Gbps |
|||
|
Packet forwarding rate
|
6.55Mpps
|
13.2Mpps
|
|||
|
Exchange mode
|
Store and forward mode (Store and Forward)
|
||||
|
Port characteristics
|
Support IEEE 802.3x flow control (full duplex)
Support broadcast storm suppression based on port bandwidth percentage |
||||
|
Port aggregation
|
Support LACP
Support manual aggregation Supports up to 13/8 aggregation groups, each aggregation group supports 8 port aggregation |
||||
|
MAC address
|
Support black hole MAC
Support setting port maximum MAC address learning |
||||
|
VLAN
|
Support port-based VLAN (4K)
Support VLAN VPN (QinQ) Support GVRP |
||||
|
DHCP
|
Support DHCP client
Support DHCP Snooping Support DHCP Snooping trust Support DHCP Snooping option 82 |
||||
|
Layer 2 ring network protocol
|
Support STP / RSTP / MSTP
Support Smart Link |
||||
|
Stacked
|
Supports up to 16 devices stacked
|
||||
|
Multicast
|
IGMP v1/v2/v3 Snooping
|
||||
|
Port mirroring
|
Support N: 1 port mirroring
Support RSPAN (Remote Switched Port Analyzer) |
||||
|
QoS/ACL
|
Support ACL
|
Supports L2 (Layer 2) to L4 (Layer 4) packet filtering function, which can match the first 80 bytes of the message, and provides
source MAC address, destination MAC, source IP address, destination IP address, IP protocol type, TCP / UDP Define ACLs for port, TCP / UDP port range, VLAN, etc. Support ACL based on Time Range Support batch ACL distribution based on port group, global and VLAN |
|||
|
Supports QoS
|
Supports 4 output queues per port
|
Supports 8 output queues per port
|
|||
|
Support 802.1p / SCP priority
Support port queue-based scheduling (SP, WRR, SP + WRR) Supports stream-based redirects Supports flow-based flow rate limiting Supports flow-based packet filtering Supports flow-based priority remarking Supports stream-based mirroring Supports QoS profile management, allowing users to customize QoS service solutions |
|||||
|
Safety features
|
User hierarchical management and password protection
Guest VLAN support Support IEEE 802.1X authentication Support centralized MAC address authentication User hierarchical management and password protection Support AAA & RADIUS & HWTACACS authentication Support MAC address learning limit Support Security MAC Support Sticky MAC Support MAC address black hole Supports SSH 2.0 Support IP source address protection Support ARP intrusion detection function Support ARP packet rate limit function Support port isolation Support IP + port binding Support IP + MAC binding Support port + MAC binding Support IP + MAC + port binding |
||||
|
Management and maintenance
|
Support XModem / FTP / TFTP loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration Support SNMPv1 / v2 / v3, WEB network management Support RMON (Remote Monitoring) 1, 2, 3, 9 MIBs Support H3C iMC Intelligent Management Center Support system log, hierarchical alarm, and debugging information output Support IPv6 host, including IPv6 unicast address configuration, ICMPv6, IPv6 neighbor discovery protocol (ND), IPv6 static routing, IPv6-PING, IPv6-TCP, IPv6-TFTP, IPv6-TELNET, IPv6-TRACERT Support Ping, Traceroute, Multicast Traceroute Support Telnet remote maintenance Support power-on POST Support VCT (Virtual Cable Test) cable detection function Support DLDP (Device Link Detection Protocol) unidirectional link detection protocol Support Loopback-detection port loopback detection |
||||
