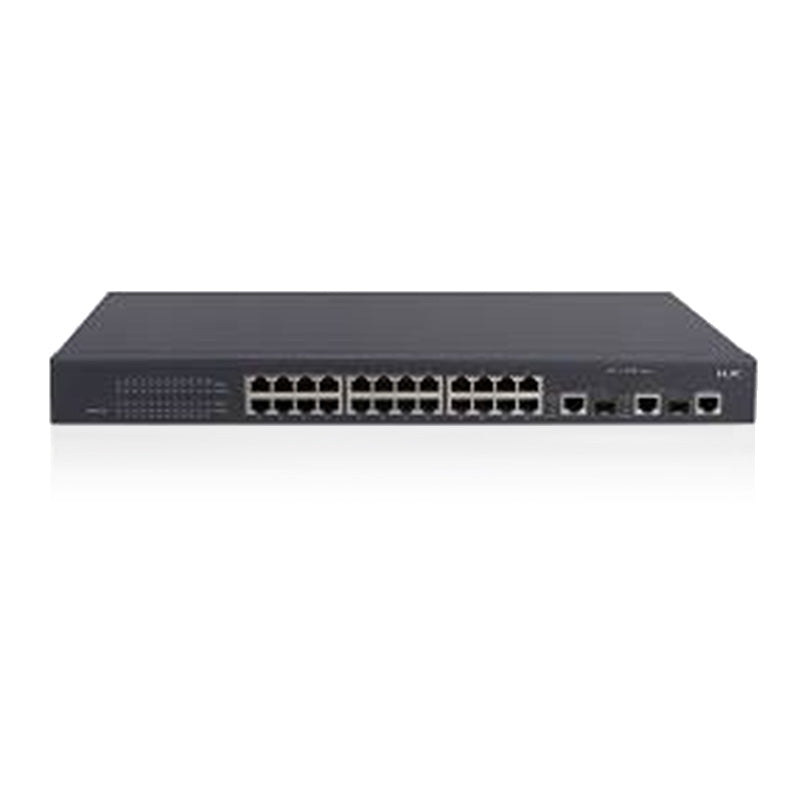

E126B Ethernet Switch 24-port 100M + 2 Gigabit Layer 2 Education Network Switch
$675.00
SKU LS-E126B
Quick Details:
Products Status:Stock
Ports:24
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex
Certification:RADIUS
Switch Capacity:64Gbps
Brand Name:H3C
Model Number:LS-E126B
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*160*43.6
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
H3C E126B / E152B Education Network Switch Specifications Features
|
Item
|
H3C E126B
|
H3C E152B
|
|
|
Dimensions (length × width × height)
(Unit: mm) |
440×160×43.6
|
436×260×43.6
|
|
|
weight
|
≤3kg
|
≤5kg
|
|
|
Service port description
|
Fixed port
|
24 10 / 100Base-TX Ethernet ports, 2 10/100 / 1000Base-T and 1000Base-X SFP Combo Ethernet ports
|
48 10 / 100Base-TX Ethernet ports, 4 1000Base-X SFP and 2 1000Base-T (Combo) Ethernet ports
|
|
Management port
|
1 Console port
|
||
|
power supply
|
With AC input:
l Rated voltage range: 100V ～ 240V AC; 50 / 60Hz l Maximum voltage range: 90V ~ 264V AC; 47Hz ~ 63Hz |
||
|
Maximum power consumption of the whole machine
|
13W
|
41W
|
|
|
Working temperature
|
0℃～45℃
|
||
|
Relative humidity in the working environment (non-condensing)
|
10%～90%
|
||
|
Environmental standards
|
Meet EU RoHS standards
Meet the current requirements of the "Administrative Measures for the Pollution Control of Electronic Information Products" |
||
H3C E126B / E152B Education Network Switch Business Features
|
Characteristic
|
H3C E126B
|
H3C E152B
|
|||
|
Layer 2 forwarding
|
Exchange capacity
|
64Gbps
|
|||
|
Packet forwarding rate
|
6.6Mpps
|
17.6Mpps
|
|||
|
Exchange mode
|
Store and forward mode (Store and Forward)
|
||||
|
Port characteristics
|
Support IEEE 802.3x flow control (full duplex)
Support broadcast storm suppression based on port bandwidth percentage |
||||
|
Port aggregation
|
Support LACP
Support manual aggregation Supports up to 13/8 aggregation groups, each aggregation group supports 8 port aggregation |
||||
|
MAC address
|
Support black hole MAC
Support setting port maximum MAC address learning |
||||
|
VLAN
|
Support port-based VLAN (4K)
Support QinQ Supports flexible QinQ Support VLAN mapping Support GVRP |
||||
|
DHCP
|
Support DHCP client
Support DHCP Snooping Support DHCP Snooping trust Support DHCP Snooping option 82 |
||||
|
Layer 2 ring network protocol
|
Support STP / RSTP / MSTP
Support Smart Link Support RRPP (E152B) |
||||
|
Stacked
|
Supports up to 16 devices stacked
|
||||
|
Multicast
|
IGMP v1/v2/v3 Snooping；MLD Snooping
|
||||
|
Port mirroring
|
Support N: 1 port mirroring (E126B)
Support N: 4 port mirroring (E152B) Support RSPAN (Remote Switched Port Analyzer) |
||||
|
QoS/ACL
|
Support ACL
|
Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing source MAC address, destination MAC, source IP
address, destination IP address, IP protocol type, TCP / UDP port, TCP / UDP port range, VLAN, etc. Define ACL Support ACL based on Time Range Support batch ACL distribution based on port group, global and VLAN Supports hardware-based IPv6 ACLs |
|||
|
Supports QoS
|
Supports 4 output queues per port
|
Supports 8 output queues per port
|
|||
|
Support 802.1p / DSCP priority
Support port queue-based scheduling (SP, WRR, SP + WRR) Supports stream-based redirects Supports flow-based flow rate limiting Supports flow-based packet filtering Supports flow-based priority remarking Supports stream-based mirroring Supports QoS profile management, allowing users to customize QoS service solutions |
|||||
|
Safety features
|
User hierarchical management and password protection
Guest VLAN support Support IEEE 802.1X authentication Support centralized MAC address authentication Support triple authentication Support SAVI certification User hierarchical management and password protection Support AAA & RADIUS & HWTACACS authentication Support MAC address learning limit Support Security MAC Support Sticky MAC Support MAC address black hole Supports SSH 2.0 Support IP source address protection Support ARP intrusion detection function Support ARP packet rate limit function Support port isolation Support IP + port binding Support port + MAC binding Support IP + MAC + port binding |
||||
|
Management and maintenance
|
Support XModem / FTP / TFTP loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration Support SNMPv1 / v2 / v3, WEB network management Support RMON (Remote Monitoring) 1, 2, 3, 9 MIBs Support H3C iMC Intelligent Management Center Support system log, hierarchical alarm, and debugging information output Support IPv6 host, including IPv6 unicast address configuration, ICMPv6, IPv6 neighbor discovery protocol (ND), IPv6 static routing, IPv6-PING, IPv6-TCP, IPv6-TFTP, IPv6-TELNET, IPv6-TRACERT Support Ping, Traceroute, Multicast Traceroute Support Telnet remote maintenance Support power-on POST Support VCT (Virtual Cable Test) cable detection function Support DLDP (Device Link Detection Protocol) unidirectional link detection protocol Support Loopback-detection port loopback detection |
||||
