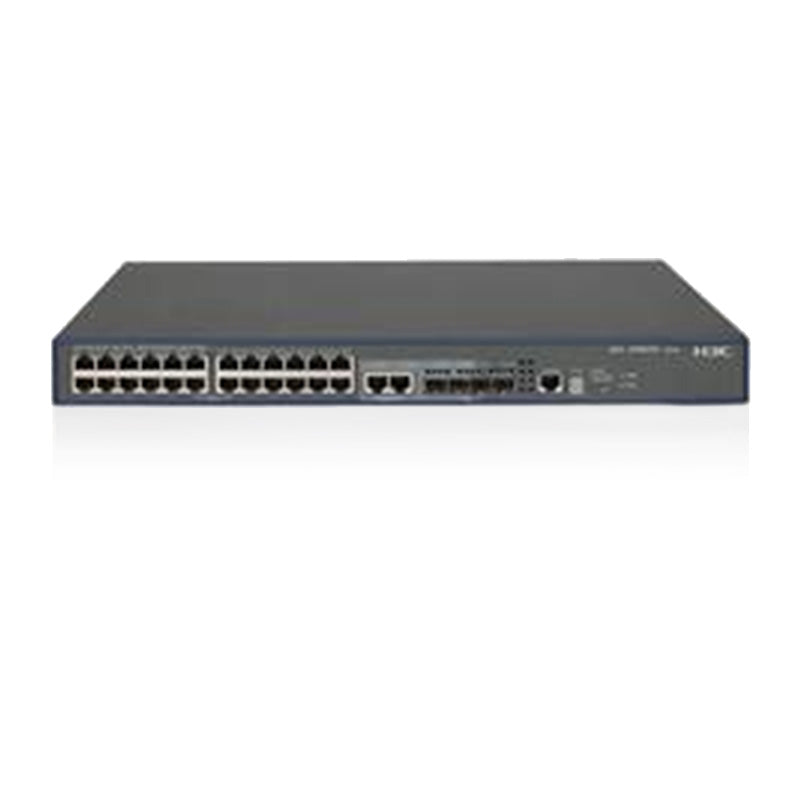

E328B 24-port Layer 3 Gigabit Ethernet Education Network Intelligent VLAN Access Switch
$980.00
SKU LS-E328B
Quick Details:
Products Status:Stock
Ports:24
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex
Certification:RADIUS
Switch Capacity:64G
Brand Name:H3C
Model Number:LS-E328B
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)： H):440*260*43.6
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
H3C E328B / E352B Education Network Switch Specifications Features
|
Item
|
E328B
|
E352B
|
|
|
Management port
|
1 Console port
|
||
|
Service port description
|
Fixed port
|
24 10 / 100Base-TX Ethernet ports, 4 1000Base-X SFP and 2 1000Base-T (combo) Ethernet ports
|
48 10 / 100Base-TX Ethernet ports, 4 1000Base-X SFP and 2 1000Base-T (combo) Ethernet ports
|
|
Optional module
|
1000BASE-SX-SFP
1000BASE-LX-SFP 1000BASE-LH-SFP 1000BASE-ZX-LR-SFP 1000BASE-ZX-VR-SFP 1000BASE-T-SFP_STACK |
||
|
Dimensions (mm)
Width × depth × height |
440×260×43.6
|
||
|
Weight
|
E328B：<5kg. E352B：<5kg
|
||
|
Input voltage
|
Rated voltage range: 100 ～ 240V a.c .; 50 / 60Hz
Maximum voltage range: 90 ～ 264V a.c .; 50 / 60Hz |
||
|
Power consumption (at full load)
|
E328B ：26W E352B ：41W
|
||
|
Working temperature
|
0～50℃
|
||
|
Relative humidity in the working environment (non-condensing)
|
10%～90%
|
||
H3C E328B / E352B Education Network Switch Business Features
|
Characteristic
|
E328B/E352B
|
|
|
Wire-speed Layer 2 / Layer 3 switching
|
All ports support wire-speed forwarding
Switching capacity 64G Packet forwarding rate: 9.6Mpps (E328B) /13.2Mpps (E352B) |
|
|
Exchange mode
|
Store and forward mode (Store and Forward)
|
|
|
Port characteristics
|
Support IEEE 802.3x flow control (full duplex)
Support broadcast storm suppression based on port rate percentage Support pps-based broadcast storm suppression Support bps-based broadcast storm suppression |
|
|
Port aggregation
|
Support LACP
Support manual aggregation Supports up to 128 aggregation groups with a maximum of 8 ports per aggregation group |
|
|
MAC address
|
Support black hole MAC
Support setting the maximum number of port MAC learning |
|
|
VLAN
|
Support port-based VLAN (4K)
Supports protocol-based VLAN Support Voice VLAN Support VLAN VPN (QinQ), flexible QinQ Support GVRP protocol |
|
|
DHCP
|
Supports DHCP CLIENT
Support DHCP Snooping Supports DHCP Snooping Option82 / DHCP Relay Option82 |
|
|
IPv4 / v6 routing
|
Support static routing, RIPv1 / 2, RIPng
|
|
|
Multicast
|
IGMP Snooping v1 / v2 / v3; MLDv1 Snooping
Multicast VLAN |
|
|
Layer 2 ring network protocol
|
Support STP / RSTP / MSTP protocol
Support Smart Link Support RRPP |
|
|
Mirror
|
Support N: 4 port mirroring
Supports flow mirroring Support RSPAN |
|
|
QoS/ACL
|
Support ACL
|
Support L2 ~ L4 packet filtering function, provide filtering based on source MAC address, destination MAC address, source IP
address, destination IP address, TCP / UDP port number, protocol type, VLAN, VLAN range and illegal frame Supports ACL based on source IPv6 address, destination IPv6 address, TCP / UDP port number, protocol type, etc. Support time-based ACL / QoS Supports inbound and outbound bidirectional ACL policies Support VLAN-based ACL |
|
Supports QoS
|
Supports 802.1p and DSCP priority remarking of packets
Supports limiting the rate at which a port receives and sends packets Support message redirection Support CAR function Support 8 port output queues Support port queue-based scheduling (SP, WRR, WFQ, SP + WFQ, SP + WRR) Supports QoS Profile management, allowing users to customize QoS service solutions |
|
|
Safety features
|
User hierarchical management and password protection
Support IEEE 802.1X authentication / centralized MAC address authentication / WEB authentication Support Triple Authentication Support SAVI certification Support AAA & RADIUS authentication Support MAC address learning limit Support MAC address binding with port and IP Support SSH2.0 Support IP source address protection Support ARP intrusion detection function Support ARP packet rate limit Support port isolation Support MAC address black hole |
|
|
Management and maintenance
|
Support XModem / FTP / TFTP loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration Support SNMPV1 / V2 / V3, WEB network management Supports RMON 1, 2, 3, 9 MIBs Support iMC Intelligent Management Center Supports HGMPv2 cluster management Support system log, hierarchical alarm, and debugging information output Support PING, Tracert Support VCT (Virtual Cable Detection) to quickly locate cable failure points Support port loopback detection Support IPV6 host management feature family |
|
