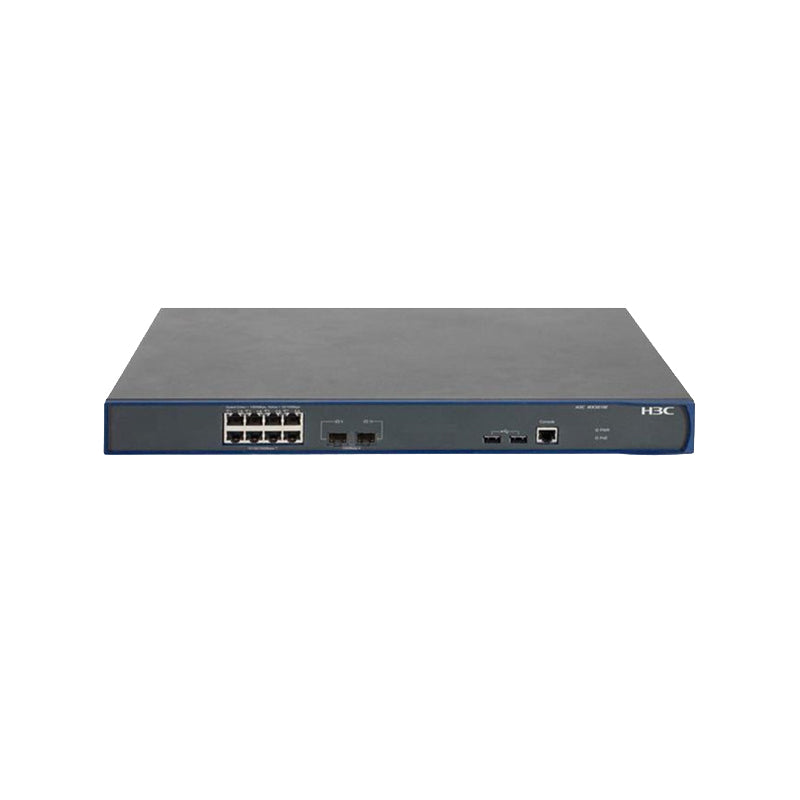

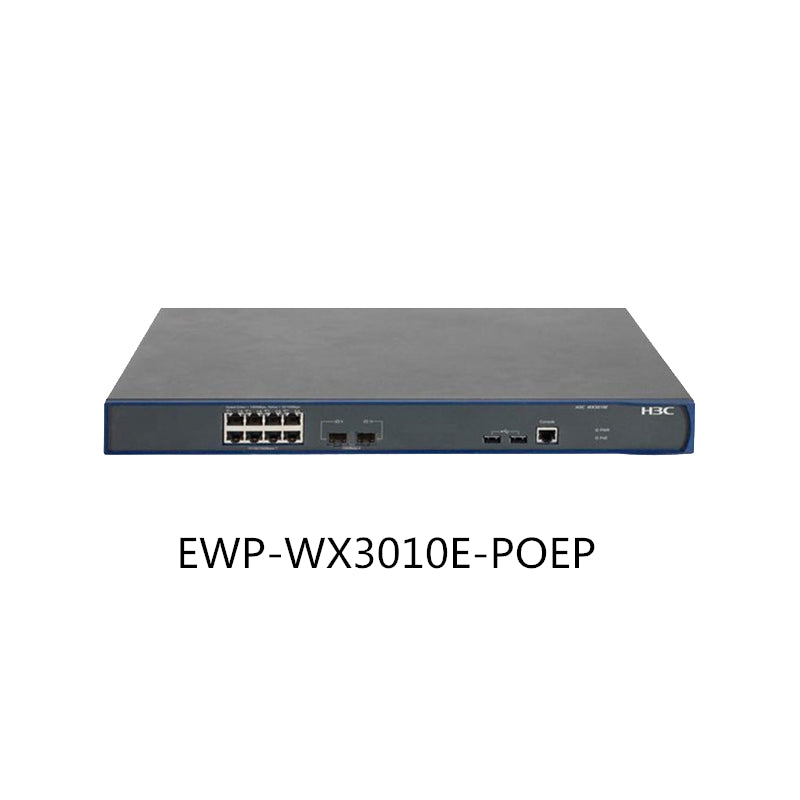

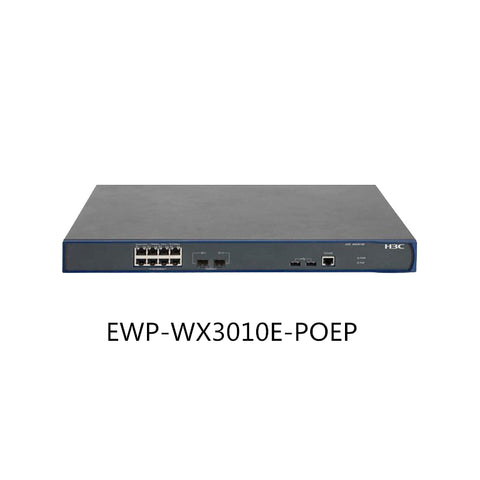

EWP-WX3010E-POEP 10-Port Gigabit (8GE-T + 2SFP) Wired and Wireless Integrated Switch POE Power Supply Controller
$2,080.00
SKU EWP-WX3010E-POEP
Quick Details:
Products Status:Stock
Ports:10
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex & Half-Duplex
Certification:RADIUS
Switch Capacity:20G
Brand Name:H3C
Model Number:EWP-WX3010E-POEP
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*270*43.6
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
|
Item
|
WX3024E
|
WX3010E
|
|
Dimensions (length x width x height)mm
|
440×429×43.6(mm3)
|
440×270×43.6(mm3)
|
|
weight
|
<7.2kg
|
<4kg
|
|
Management port
|
1 Console port
|
|
|
Service port description
|
24 10/100 / 1000M electrical ports
|
Eight 10/100 / 1000M electrical ports
|
|
4 Gigabit SFP Combo ports
|
2 Gigabit SFP optical ports
|
|
|
Two 10GE XFP optical ports
|
—
|
|
|
Input voltage
|
AC:
Rated voltage range: 100V ～ 240V AC; 50 / 60Hz Maximum voltage range: 90V ～ 264V AC; 47 / 63Hz |
|
|
DC (only supported by WX3024E):
Rated voltage range: -47V ～ -57V DC Maximum voltage range: -36V ～ -72V DC |
||
|
Power consumption (when all ports are powered by external PoE)
|
AC input: 450W
DC input (external RPS power supply): 720W |
AC input: 450W
|
|
PoE+
|
24 ports / single port up to 30W
|
8 ports / single port up to 25W
|
|
Working / storage ambient temperature
|
-10℃～55℃/-40ºC～70ºC
|
0℃～45℃/-40ºC～70ºC
|
|
Operating / storage environment relative humidity (non-condensing)
|
5%～95%
|
|
|
safety regulations
|
UL 60950-1,
|
|
|
|
||
|
CAN/CSA C22.2 No 60950-1,
|
||
|
|
||
|
IEC 60950-1,
|
||
|
|
||
|
EN 60950-1/A11,
|
||
|
|
||
|
AS/NZS 60950,
|
||
|
|
||
|
EN 60825-1,
|
||
|
|
||
|
EN 60825-2,
|
||
|
|
||
|
FDA 21 CFR Subchapter J
|
||
|
EMC
|
ETSI EN 300 386 V1.3.3:2005
|
|
|
|
||
|
EN 55024: 1998+ A1: 2001 + A2: 2003
|
||
|
|
||
|
EN 55022 :2006
|
||
|
|
||
|
VCCI V-3:2007
|
||
|
|
||
|
ICES-003:2004
|
||
|
|
||
|
EN 61000-3-2:2000+A1:2001+A2:2005
|
||
|
|
||
|
EN 61000-3-3:1995+A1:2001+A2:2005
|
||
|
|
||
|
AS/NZS CISPR 22:2004
|
||
|
|
||
|
FCC PART 15:2005
|
||
|
MTBF
|
>45年
|
>30年
|
Software Specifications-Wired Section
|
Supporting features
|
WX3024E
|
WX3010E
|
|
Switching capacity bit / s (full duplex)
|
88G
|
20G
|
|
Packet forwarding rate pps (whole machine)
|
65.47M
|
14.88M
|
|
Port aggregation
|
(1) Supports dynamic aggregation of GE (Gigabit Ethernet) ports
|
|
|
(2) Support 10GE port dynamic aggregation (WX3024E only)
|
||
|
(3) Support dynamic LACP link aggregation
|
||
|
(4) Support manual aggregation
|
||
|
(5) Support static aggregation
|
||
|
12 groups (12 * GE / 2 * 10GE)
|
4 groups (8 * GE)
|
|
|
Port flow control
|
Support port flow control
|
|
|
MAC address table
|
Support 8K MAC address
|
|
|
Support 1K static MAC address
|
||
|
Support 1K multicast MAC address
|
||
|
Support black hole MAC address
|
||
|
VLAN
|
(1) Support port-based VLAN (4094)
|
|
|
(2) Support nested VLAN (VLAN-VPN or QinQ)
|
||
|
(3) Supports flexible QinQ
|
||
|
(4) Support protocol VLAN
|
||
|
(5) Support Voice VLAN
|
||
|
(6) Support GVRP
|
||
|
(7) Support for disabling MAC address learning in VLAN
|
||
|
routing
|
Support static routing
|
|
|
Support RIPv1 / v2
|
||
|
DHCP
|
(1) Support DHCP Server
|
|
|
(2) Support DHCP Client
|
||
|
(3)Support DHCP Snooping, including Option 82
|
||
|
Multicast
|
(1) Supports Internet Group Management Protocol (IGMP) snooping v1 / v2 / v3
|
|
|
(2) A maximum of 256 multicast groups in a single VLAN, and 1024 multicast groups in the entire machine
|
||
|
(3) Support multicast VLAN
|
||
|
(4) Support unknown multicast drop
|
||
|
(5) Support unknown multicast outbound packet filtering
|
||
|
(6) Support manual configuration of multicast MAC addresses
|
||
|
Broadcast storm suppression
|
Support port-based broadcast storm control
|
|
|
MSTP
|
(1) Support STP / RSTP / MSTP protocol
|
|
|
(2) Support the largest spanning tree in the domain (16)
|
||
|
(3) Support STP Root Guard
|
||
|
(4) Support BPDU Guard
|
||
|
QACL
|
(1) Support IEEE 802.1p / DSCP priority
|
|
|
(2) Support priority mapping
|
||
|
(3) Support priority marking
|
||
|
(4) Support traffic statistics
|
||
|
(5) Support port trust mode
|
||
|
(6) Support 8 queues per port
|
||
|
(7) Support queue scheduling with SP / WRR / SP + WRR
|
||
|
(8) Supports traffic shaping for ports and queues
|
||
|
(9) Support port / flow-based rate limiting with a minimum granularity of 1Kbps
|
||
|
(10) Support flow-based redirection
|
||
|
(11) Support digital ACL
|
||
|
(12) Supports digital extended ACL
|
||
|
(13) Supports digital representation of Layer 2 ACL
|
||
|
(14) Support for the configuration of issued ACLs
|
||
|
(15) Support multiple QoS & ACL delivery methods: global delivery, VLAN delivery, port group delivery, port delivery
|
||
|
(16) Support real-time update of ACL based on time period changes
|
||
|
Mirror
|
(1) Support flow mirroring
|
|
|
(2) Support VLAN-based mirroring
|
||
|
(3) Support MAC address-based mirroring
|
||
|
(4) Support port mirroring
|
||
|
(5) Support multiple source port mirroring
|
||
|
(6) Support remote port mirroring
|
||
|
Safety features
|
(1) Support user hierarchical management and password protection
|
|
|
(2) Support AAA authentication
|
||
|
(3) Support Radius authentication
|
||
|
(4) Support HW TACACS authentication
|
||
|
(5) Support SSH 2.0
|
||
|
(6) Support management VLAN
|
||
|
(7) Support port isolation
|
||
|
(8) Support port security
|
||
|
(9) Support centralized MAC address authentication
|
||
|
(10) Support ARP intrusion detection
|
||
|
(11) Support IP address filtering on the port
|
||
|
802.1x
|
(1) Single port supports up to 256 users
|
|
|
(2) Support port-based authentication and MAC-based authentication
|
||
|
(3) Support Guest VLAN
|
||
|
(4) Support TRUNK port authentication
|
||
|
(5) Support dynamic VLAN and ACL rule delivery
|
||
|
JUMBO Frame
|
Supports maximum frame length of 4K
|
|
|
DLDP
|
Support DLDP (Device Link Detection Protocol)
|
|
|
Loading and upgrading
|
(1) Support FTP (File Transfer Protocol) loading and upgrading
|
|
|
(2) Support TFTP (Trivial File Transfer Protocol) loading and upgrading
|
||
|
management
|
(1) Support command line interface (CLI) configuration
|
|
|
(2) Support Telnet remote configuration
|
||
|
(3) Support configuration through the console port
|
||
|
(4) Supports Simple Network Management Protocol (SNMP)
|
||
|
(5) Support RMON (Remote Monitoring) alarm, event, history
|
||
|
(6) Support iMC network management system
|
||
|
(7) Support WEB network management
|
||
|
(8) Support system log
|
||
|
(9) Support hierarchical alarm
|
||
|
(11) Support modem remote dialing
|
||
|
(12) Support NTP
|
||
|
(13) Support power status detection
|
||
|
(14) Support power alarm function
|
||
|
(15) Support fan alarm
|
||
|
maintain
|
(1) Support debugging information output
|
|
|
(2) Support Ping (Packet Internet Groper), Tracert
|
||
|
(3) Support NQA (Network Quality Analysis)
|
||
|
(4) Support Telnet remote maintenance
|
||
Software Specifications-Wireless Part
|
Item
|
Supporting features
|
WX3024E
|
WX3010E
|
|
Basic performance
|
Default management AP number
|
24
|
12
|
|
License step size
|
12
|
12
|
|
|
Maximum number of managed APs
|
60/96*
|
24/36*
|
|
|
Configurable maximum number of APs
|
120/192*
|
64/72*
|
|
|
Maximum number of users
|
1K
|
||
|
Maximum number of users supported by AAA
|
2K
|
||
|
Maximum number of users supported by local authentication
|
1K
|
||
|
Maximum number of users supported during local portal authentication
|
1K
|
||
|
MAC address table depth
|
2K
|
||
|
Number of VLANs
|
4K
|
||
|
ACL number
|
2K
|
||
|
Maximum number of DHCP server leases
|
IPv4: 8K、IPv6: 8K
|
||
|
Maximum number of DHCP server address pools
|
IPv4: 128、IPv6: 128
|
||
|
802.11MAC
|
802.11 protocol suite
|
support
|
|
|
Multiple SSID (per RF port)
|
16
|
||
|
Hide SSID
|
support
|
||
|
11G protection
|
support
|
||
|
11n only
|
support
|
||
|
Number of users
|
Support: SSID, Radio-based user limit
|
||
|
User online detection
|
support
|
||
|
Automatic aging of users without traffic
|
support
|
||
|
Support multi-country code deployment
|
support
|
||
|
Wireless user isolation based on SSID
|
support
|
||
|
Layer 2 isolation for wireless users
|
support
|
||
|
20MHz / 40MHz automatic switching in 40MHz mode
|
support
|
||
|
Local forwarding
|
Support: Local forwarding based on SSID + VLAN
|
||
|
AC-AP tunnel
|
Enter AP serial number automatically
|
support
|
|
|
AC discovery (DHCP option43, DNS method)
|
support
|
||
|
IPv6 tunnel
|
support
|
||
|
Clock synchronization
|
support
|
||
|
Jumbo frame sending
|
support
|
||
|
AP dual uplink tunnel link
|
support
|
||
|
Configure basic AP network parameters (static IP, VLAN, AC address for access) through AC
|
support
|
||
|
NAT between AP and AC
|
support
|
||
|
Tunnel IPSec encryption
|
support
|
||
|
roaming
|
Layer 2 and Layer 3 roaming under different APs in the same AC
|
support
|
|
|
Layer 2 and Layer 3 roaming between different ACs and different APs
|
support
|
||
|
Access control
|
Open system、Shared-Key
|
support
|
|
|
WPA、WPA2
|
support
|
||
|
WEP-64/128、Dynamic WEP
|
support
|
||
|
TKIP
|
support
|
||
|
CCMP
|
Support (11n recommended)
|
||
|
WAPI
|
not support
|
||
|
SSH v1.5/v2.0
|
support
|
||
|
Wireless EAD (Terminal Admission Control)
|
support
|
||
|
Portal authentication
|
Support: remote, external server
|
||
|
Portal page push
|
Support: Portal page push based on SSID and AP
|
||
|
Portal Traversal Proxy
|
support
|
||
|
802.1x authentication
|
stand by:
EAP-TLS, EAP-TTLS, EAP-PEAP, EAP-MD5, EAP-SIM, LEAP, EAP-FAST, EAP offload (only supports TLS, PEAP) |
||
|
Local authentication
|
Support: 802.1X, Portal, MAC authentication
|
||
|
LDAP
(1. Support 802.1X and Portal access 2.When 802.1X access, support EAP-GTC and EAP-TLS) |
support
|
||
|
User access control at basic location
|
support
|
||
|
Guest access
|
support
|
||
|
VIP channel
|
support
|
||
|
ARP anti-attack
|
Support: Wireless SAVI
|
||
|
SSID anti-counterfeiting
|
Support: user name and SSID binding
|
||
|
Select AAA server based on domain and SSID
|
support
|
||
|
AAA server backup
|
support
|
||
|
Local AAA server for wireless users
|
support
|
||
|
TACACS+
|
support
|
||
|
QoS
|
Priority mapping
|
support
|
|
|
L2-L4 flow classification
|
support
|
||
|
Traffic rate limiting
|
Support: flow control granularity 8Kbps
|
||
|
802.11e/WMM
|
support
|
||
|
User profile based access control
|
support
|
||
|
Intelligent Bandwidth Limiting-Based on Bandwidth Equalization Algorithm
|
support
|
||
|
Intelligent Bandwidth Limiting-Algorithm based on per-user specified bandwidth
|
support
|
||
|
Intelligent bandwidth guarantee (when traffic is not congested, ensure that packets under different priority SSIDs can pass
freely; when traffic is congested, ensure that each SSID can maintain its agreed minimum bandwidth) |
support
|
||
|
QoS Optimization for SVP phone
|
support
|
||
|
CAC(Call Admission Control)
|
Support: CAC based on number of users / bandwidth
|
||
|
End-to-end QoS
|
support
|
||
|
AP uplink port speed limit
|
support
|
||
|
Radio Resource Management
|
Country code lock
|
support
|
|
|
Static channel, power setting
|
support
|
||
|
Dynamic channel and power settings
|
support
|
||
|
Dynamic rate adjustment
|
support
|
||
|
Air port black hole detection and compensation
|
support
|
||
|
Load balancing dimension
|
Support: based on traffic, user, frequency band (dual frequency support)
|
||
|
Intelligent load balancing
|
support
|
||
|
AP balanced group
|
Support: automatic discovery and flexible setting
|
||
|
Security defense
|
Number of static blacklists
|
32
|
|
|
Number of dynamic blacklists
|
256
|
||
|
Number of whitelists
|
255
|
||
|
Rogue AP detection
|
Support: based on SSID, BSSID, device OUI, etc.
|
||
|
Countermeasure against illegal AP
|
support
|
||
|
Protection against wireless flooding attacks
|
support
|
||
|
Anti-Spoof Attack
|
support
|
||
|
Weak IV protection
|
support
|
||
|
wIPS
|
Support: 7 layers of mobile security defense
|
||
|
Layer 2 protocol
|
ARP pickup
|
support
|
|
|
802.1p
|
support
|
||
|
802.1q
|
support
|
||
|
802.1x
|
support
|
||
|
Broadcast storm suppression
|
support
|
||
|
IP protocol
|
IPv4
|
support
|
|
|
Native IPv6 (native)
|
support
|
||
|
IPv6 SAVI
|
support
|
||
|
IPv6 Portal
|
Support: Requires H3C iMC UAM user access management component
|
||
|
Multicast protocol
|
MLD Snooping
|
not support
|
|
|
IGMP Snooping
|
support
|
||
|
Number of multicast groups
|
64
|
||
|
Multicast to Unicast (IPv4, IPv6)
|
support
|
||
|
Backup
|
1 + 1, N + 1, N + N backup between ACs
|
support
|
|
|
AP number load sharing between ACs
|
support
|
||
|
Remote AP
|
support
|
||
|
DHCP server dual-system hot backup
|
support
|
||
|
Portal dual-system hot backup
|
support
|
||
|
Network Management and Configuration
|
Management style
|
Support: WEB, SNMP v1 / v2 / v3, RMON, etc.
|
|
|
Configuration method
|
Support: WEB, CLI, TELNET, FTP, etc.
|
||
|
Wireless positioning
|
AeroScout positioning
|
support
|
|
|
green technology
|
Close the AP radio port periodically as needed
|
support
|
|
|
Turn off wireless services on demand
|
support
|
||
|
Packet-by-packet power control (PPC)
|
support
|
||
|
WLAN Comprehensive Application
|
RF Ping
|
support
|
|
|
Remote Probe Analysis
|
support
|
||
|
Real-time spectrum protection (RTSG)
|
support
|
||
|
Intelligent Wireless Service Awareness (wIAA)
|
support
|
||
|
Message sending fair scheduling mechanism
|
support
|
||
|
802.11n message transmission suppression
|
support
|
||
|
Traffic shaping based on connectivity
|
support
|
||
|
Adjust channel sharing between APs
|
support
|
||
|
Adjust channel reuse between APs
|
support
|
||
|
RF interface transmission rate adjustment algorithm
|
support
|
||
|
Ignore weak signal wireless messages
|
support
|
||
|
Disable weak signal client access
|
support
|
||
|
Disable multicast packet buffering
|
support
|
||
|
Blink status detection (some APs)
|
support
|
||
Packing & Delivery:
1. DHL / UPS / FedEx / TNT , Door-to-Door.
2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We will choose the best and safe packaging material to make sure your orders won't be
damaged during delivery.
Company Profie:
TFC is one-stop supplier for quality new, used and refurbished IT hardware. NMI buys, sells, leases, rents, consigns and trades
just about every product line including Sun, HP, IBM, Dell,Lenovo, storage equipment as NetApp and EMC, telecom equipment as
H3C,HUAWEI,CISCO,Juniper etc...
Our Certificates:
