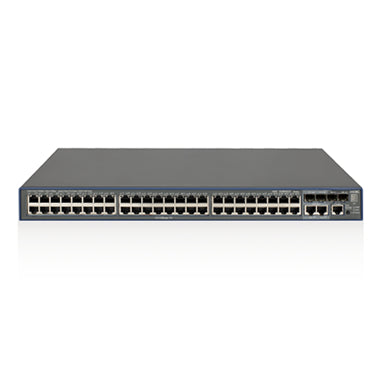

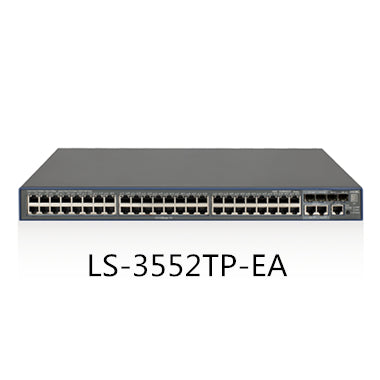

LS-3552TP-EA Ethernet switch 48-port 100M switch carrier-grade campus switch

$1,690.00
SKU LS-3552TP-EA

Quick Details:

Products Status:Stock

Ports:≥ 48

Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:Full-Duplex & Half-Duplex

Certification:RADIUS

Switch Capacity:64Gbps

Brand Name:H3C

Model Number:LS-3552TP-EA

Place of Origin:Guangdong, China

Warranty:1year

Dimensions (W x D x H):440*43.6*260mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :

Quantity(Pieces)

1 - 1

>1

Est. Time(days)

30

To be negotiated

Product Description:

H3C S3500EA Series Ethernet Switch System Features

Item
H3C S3500EA Series
Dimensions (W × H × D)
S3528-EA
440×43.6×260mm
S3528FP-EA
S3552TP-EA
weight
S3528-EA
<5kg
S3528FP-EA
<5kg
S3552TP-EA
<5kg
Management port
1 Console port
Input voltage
H3C S3500EA series supports AC power input and DC power input
AC:
Rated voltage range: 100-240V AC; 50 / 60Hz
Maximum voltage range: 90-264V AC; 50 / 60Hz
DC:
Rated voltage range: -48 to -60V
Maximum voltage range: -36 to -72V
Power consumption (at full load)
S3528-EA
31W
S3528FP-EA
60W
S3552TP-EA
43W
Working temperature
0~50℃
Relative humidity in the working environment (non-condensing)
10%~90%

H3C S3500EA Series Ethernet Switches Business Features

Supporting features
Description
Exchange capacity
64Gbps
Layer 2 and 3 wire speed forwarding
28-port packet forwarding rate: 9.6Mpps
52-port packet forwarding rate: 13.2Mpps
Port aggregation
Support FE (Fast Ethernet) port aggregation
Support GE (Gigabit Ethernet) port aggregation
Support LACP (Link Aggregation Control Protocol)
Support manual aggregation
MAC address
Support black hole MAC address
Support setting the maximum number of port MAC address learning
port
Support IEEE 802.3x flow control (full duplex)
Supports Back-pressure based flow control (half-duplex)
Support storm suppression based on port rate percentage
Support setting port priority
DLDP
Support DLDP (Device Link Detection Protocol)
VLAN
Support port VLAN (4094)
Support protocol VLAN
Based on IPv4 subnet VLAN
Support Voice VLAN
Support GARP / GVRP
Support VLAN VPN (QinQ), flexible QinQ, BPDU tunnel
Support VLAN Translation
Stacked
Support IRF2 intelligent elastic architecture
Support distributed device management, distributed link aggregation
Support distributed elastic routing
Supports stacking through standard Ethernet interfaces, etc.
Support local stacking and remote stacking
DHCP
Support DHCP Server
Supports DHCP-Relay
Support DHCP Client
Support DHCP Snooping
Supports DHCP Option 82 in DHCP-Relay and DHCP Snooping functions
DNS
Supports static domain name resolution
Support for dynamic domain name resolution clients
ARP
Support ARP
Supports free ARP
Supports ARP Proxy
IP routing
Support static route and default route
Supports BFD (Bidirectional Forwarding Detection) on static routes
Support RIP (Routing Information Protocol) v1 / 2
Support RIPng
Support OSPFv1 / v2 (Open Shortest Path First)
Support OSPFv3
Support IS-IS
Support IS-ISv6
Supports Border Gateway Protocol (BGP)
Supports BGP4 + for IPV6
Support IPv4, IPv6 policy routing
Supports equal cost routing
MCE
Support MCE (Multi-CE)
Multicast
IGMP (Internet Group Management Protocol) snooping
Supports multicast VLAN
Support IGMPv1 / v2 / v3
Supports PIM-DM (Protocol Independent Multicast-Dense Mode)
Supports PIM-SM (Protocol Independent Multicast-Sparse Mode)
Supports MSDP (Multicast Source Discovery Protocol)
Support MLD Snooping
Layer 2 ring network protocol
Support STP / RSTP / MSTP
Support Smart Link
Supports RRPP (Rapid Ring Protection Protocol)
IPv6
Support ND (Neighbor Discovery)
Support PMTU
Support IPv6 Ping, IPv6 Tracert
Support IPv6 Telnet
Support IPv6 TFTP
IPv6 over IPv4 Tunnel
Support manual tunnel configuration
Support 6to4 tunnel
Supports ISATAP (Intra-site Automatic Tunneling Protocol) tunnel
Support Auto-tunnel (ie IPv4 compatible tunnel)
QoS/ACL
Support ACL
Supports traffic classification based on source MAC address, destination MAC address, source IP address, destination IP address,
Layer 4 port, protocol type, VLAN and other information
Support basic ACL
Support advanced ACL
Supports Layer 2 ACL
Support user-defined ACL
Support ACL flow template
Support user-defined flow templates
Support system default flow template
Supports QoS
Supports flow-based traffic rate limiting
Supports flow-based tagging priority,
Support flow-based modification packet VLAN ID
Support flow-based packet redirection to port or IP next hop
Supports flow-based traffic statistics
Supports flow-based flow mirroring
Support port queue scheduling (SP / WRR / SP + WRR)
Supports port mirroring and RSPAN (remote port mirroring)
Support port traffic shaping
Support port congestion drop
Support IPv6 ACL
Supports traffic classification based on information such as source IPv6 address, destination IPv6 address, Layer 4 port, and
protocol type
Support basic IPv6 ACL
Supports advanced IPv6 ACL
Support Time Range
Supports policy routing
Safety features
Support user hierarchical management and password protection
Supports IEEE 802.1x authentication
Support AAA
Support Radius authentication
Support HWTacacs
Support centralized MAC address authentication
Support port isolation
Support IP + MAC + port binding
reliability
Support VRRP (Virtual Redundancy Routing Protocol)
Loading and upgrading
Support XModem protocol for loading upgrade
Support FTP (File Transfer Protocol) loading and upgrading
Support TFTP (Trivial File Transfer Protocol) loading and upgrading
management
Support command line interface (CLI) configuration
Support Telnet remote configuration
Support configuration through console port
Supports Simple Network Management Protocol (SNMP) V1 / V2c / V3
Support RMON (Remote Monitoring) 1, 2, 3, 9 MIBs
Support H3C QuidView network management system
Support WEB network management
Support system log
Support hierarchical alarm
Supports cluster management HGMP (Huawei Group Management Protocol) V2
Support Modem remote dialing
Support NTP
Supports SSH 2.0
Support power status detection and alarm
maintain
Support debugging information output
Support Ping, Tracert
Support NQA
Support Telnet remote maintenance
Support VCT Virtual Cable Test (Virtual Cable Test)
Support DLDP (Device Link Detection Protocol)

Packing & Delivery:

1. DHL / UPS / FedEx / TNT , Door-to-Door.

2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We will choose the best and safe packaging material to make sure your orders won't be
damaged during delivery.

Company Profie:

TFC is one-stop supplier for quality new, used and refurbished IT hardware. NMI buys, sells, leases, rents, consigns and trades
just about every product line including Sun, HP, IBM, Dell,Lenovo, storage equipment as NetApp and EMC, telecom equipment as
H3C,HUAWEI,CISCO,Juniper etc...

Our Certificates:

FAQ:

Q1:What's your main product?

TFC mainly produce networking equipment, server , storage equipment etc.

Q2:What's your payment term?
Usually L/C,T/T,D/P,D/A ,it is determined by our negotiation.

Q3:Can you customize product?
Yes, TFC can supply you products according to your requirement .

Q4:What is the MOQ and Leading?
Usually 30~50 working days for delivery.
