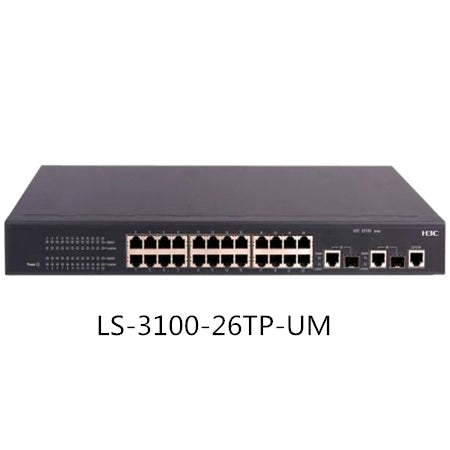

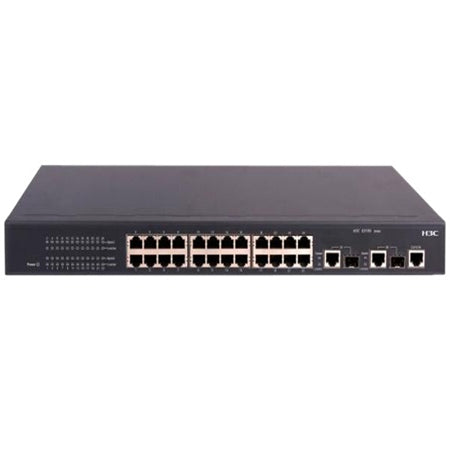

LS-S3100-26TP-UM Ethernet Switch 24-port 100M Layer 2 Security VLAN Network Management Switch

$675.00
SKU LS-3100-26TP-UM

Quick Details:

Products Status:Stock

Ports:24

Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:Full-Duplex

Certification:RADIUS

Switch Capacity:19.2Gbps

Brand Name:H3C

Model Number:LS-3100-26TP-UM

Place of Origin:Guangdong, China

Warranty:1year

Dimensions (W x D x H):440*160*43.6

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :

Quantity(Pieces)

1 - 1

>1

Est. Time(days)

30

To be negotiated

Product Description:

H3C S3100TP-SI (UM) Series Switches Specifications Features

Item
S3100-26TP-SI(UM)
S3100-52TP-SI(UM)
Dimensions (length x width x height) (unit: mm)
440×160×43.6
440×230×43.6
Weight
≤3kg
≤5.5kg
Fixed port
24 10 / 100Base-TX Ethernet ports;
Two 10/100 / 1000Base-T Ethernet ports and two multiplexed 100 / 1000Base-X SFP ports
48 10 / 100Base-TX Ethernet ports;
Two 10/100 / 1000Base-T Ethernet ports and two 100 / 1000Base-X SFP ports
Management port
1 Console port
Exchange capacity
19.2Gbps
Packet forwarding rate
6.6Mpps
13.2Mpps
Exchange mode
Store and forward mode (Store and Forward)
power supply
With AC input:
Rated voltage range: 100V ~ 240V AC; 50 / 60Hz
To large voltage range: 90V ~ 264V AC; 47Hz ~ 63Hz
Machine to large power consumption
17W
23.7W
Fan
Working temperature
0℃~45℃
Relative humidity in the working environment (non-condensing)
10%~90%

S3100TP-SI (UM) Series Ethernet Switch Service Features

characteristic
S3100TP-SI(UM)
Exchange mode
Store and forward mode (Store and Forward)
port
Support IEEE 802.3x flow control (full duplex)
Support broadcast storm suppression based on port bandwidth percentage
MAC address
Support 8K MAC
Support black hole MAC
Support setting port MAC learning to a large number
Port aggregation
Support LACP
Support manual aggregation
VLAN
Support port-based VLAN (4K)
Supports protocol-based VLAN
Support Voice VLAN
Support GVRP
Layer 2 ring network protocol
Support STP / RSTP / MSTP
Support Smart Link
Stacked
Up to 16 devices can be stacked
Multicast
IGMP Snooping v1 / v2 / v3
Multicast VLAN
Mirror
Support N: 1 port mirroring
Support RSPAN
Supports flow mirroring
QoS/ACL
Support ACL
Supports L2 ~ L4 packet filtering function, can match the first 80 bytes of the message, and provides a range based on source MAC
address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP / UDP port, TCP / UDP port ,
VLAN, etc. define ACL.
Support port-based, VLAN-based, global ACL delivery
Support ACL based on Time Range
Supports QoS
Supports 4 output queues per port
Support 802.1p / DSCP priority
Support port queue scheduling (SP, WRR, SP + WRR)
Supports flow-based packet filtering
Supports flow-based traffic statistics
Supports stream-based redirects
Supports flow-based priority marking
Supports flow-based rate limiting
Support traffic shaping
Safety features
User hierarchical management and password protection
Guest VLAN support
Support IEEE 802.1X authentication / centralized MAC address authentication
Support AAA & RADIUS & HWTACACS authentication
Support MAC address learning limit
Support MAC address black hole
Supports SSH 2.0
Support IP source address protection
Support ARP intrusion detection function
Support ARP packet rate limit function
Support port isolation
Support IP + port binding
Support IP + MAC binding
Support port + MAC binding
Support IP + MAC + port binding
DHCP
Support DHCP client
Support DHCP Snooping
Support DHCP Snooping trust
Support DHCP Snooping option 82
Management and maintenance
Support XModem / FTP / TFTP loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration
Supports HGMP v2 cluster management
Support SNMP v1 / v2 / v3, WEB network management
Supports RMON 1, 2, 3, 9 MIBs
Support H3C iMC Intelligent Management Center
Support system log, hierarchical alarm
Support PING, Traceroute, Multicast Traceroute
Support Telnet remote maintenance
Support VCT (Virtual Cable Test) cable detection function
Support DLDP (Device Link Detection Protocol) unidirectional link detection protocol
Support Loopback-detection port loopback detection
Support IPv6 host network management feature family
