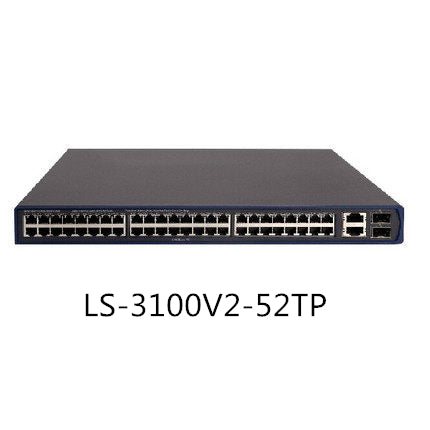

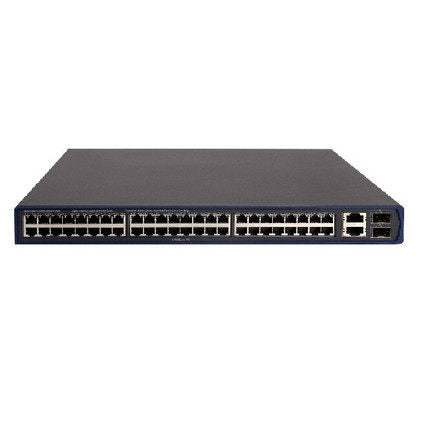

LS-S3100V2-52TP Ethernet Switch 48-port 100M Network Manageable VLAN Speed-Limited Fiber Switch

SKU LS-3100V2-52TP

Quick Details:

Products Status:Stock

Ports:≥ 48

Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:e:Full-Duplex


Switch Capacity:64Gbps

Brand Name:H3C

Model Number:LS-3100V2-52TP

Place of Origin:Guangdong, China


Dimensions (W x D x H):436*260*43.6

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :


1 - 1


Est. Time(days)


To be negotiated

Product Description:

H3C S3100V2-52TP
Dimensions (length × width × height) (unit: mm)
Service port description
48 10 / 100Base-TX Ethernet ports, 4 1000Base-X SFP and 2 1000Base-T (Combo) Ethernet ports
Management port
1 Console port
Exchange capacity
Packet forwarding rate
Supports up to 4K IEEE 802.1Q compliant VLANs
Broadcast storm suppression
Support broadcast storm suppression based on port bandwidth percentage
Support IGMP Snooping, MLD Snooping v1 / v2
Supports multicast VLAN
Spanning Tree Protocol
Support STP / RSTP / MSTP, comply with IEEE 802.1D, IEEE 802.1w, IEEE 802.1s standards
Port aggregation
Support LACP
Support manual aggregation
Supports up to 128 aggregation groups, each group supports up to 8 ports
Port mirroring
Support N: 4 port mirroring
Supports flow mirroring
Support RSPAN
Loading and upgrading
Support XModem protocol for loading upgrade
Support FTP, TFTP loading and upgrading
Management and maintenance
Support command line interface (CLI), Telnet, Console port configuration
Support SNMP
Supports IPv6 SNMP and IPv6 MIB
Support iMC Intelligent Management Center
Support WEB network management
Support system logSupport PING, Traceroute, Multicast Traceroute
Support Telnet remote maintenance
Support VCT (Virtual Cable Test) cable detection function
Support port loopback detection
Support IPv6 host function family to realize IPv6 management
Supports 8 output queues per port
Support 802.1p priority, DSCP (Differentiated Services Codepoint Priority) priority
Support flexible queue scheduling algorithm, can be set based on port and queue at the same time, support SP, WRR, SP + WRR three
Support port bidirectional speed limit
Support flow rate limit
Supports L2 ~ L4 packet filtering function, can match the first 80 bytes of the message, and provides based on source MAC address,
destination MAC, MAC address range, source IP address, destination IP address, IP protocol type, physical port, TCP / UDP port ,
TCP / UDP port range, VLAN, etc. define ACL.
For ACL-defined flows, QoS actions such as permit / deny, flow rate limiting, flow statistics, flow mirroring, flow redirection,
flow priority remarking, and queue scheduling based on flows can be performed.
Support ACL based on Time Range
Supports inbound and outbound bidirectional ACL policies
Support VLAN-based ACL
Supports QoS profile management, allowing users to customize QoS service solutions
Supports hardware-based IPv6 ACLs
Safety features
User hierarchical management and password protection
Guest VLAN support
Support IEEE 802.1X authentication
Support MAC address based authentication
Support centralized MAC address authentication
User hierarchical management and password protection
Support AAA & Radius & HWTACACS authentication
Support MAC address learning limit
Support Security MAC
Support Sticky MAC
Support MAC address black hole
Supports SSH 2.0
Support EAD (Terminal Admission Control)
Support IP Source Guard against DOS attacks
Support ARP intrusion detection function
Support ARP packet rate limit function
Support port isolation
Support management user RADIUS authentication
Support IP + port binding
Support port + MAC binding
Support IP + MAC + port binding
Support DHCP Client, DHCP Snooping
Cluster management
Supports NDP (Neighbor Discovery Protocol)
Supports NTDP (Network Topology Discovery Protocol)
power supply
Rated voltage range: 100V ~ 240V AC; 50 / 60Hz
Maximum voltage range: 90V ~ 264V AC; 47Hz ~ 63Hz
Maximum power consumption of the whole machine
Working temperature
Relative humidity in the working environment (non-condensing)

Packing & Delivery:

1. DHL / UPS / FedEx / TNT , Door-to-Door.

2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We will choose the best and safe packaging material to make sure your orders won't be
damaged during delivery.

Company Profie:

TFC is one-stop supplier for quality new, used and refurbished IT hardware. NMI buys, sells, leases, rents, consigns and trades
just about every product line including Sun, HP, IBM, Dell,Lenovo, storage equipment as NetApp and EMC, telecom equipment as
H3C,HUAWEI,CISCO,Juniper etc...

Our Certificates:


Q1:What's your main product?
TFC mainly produce networking equipment, server , storage equipment etc.

Q2:What's your payment term?
Usually L/C,T/T,D/P,D/A ,it is determined by our negotiation.

Q3:Can you customize product?
Yes, TFC can supply you products according to your requirement .

Q4:What is the MOQ and Leading?
Usually 30~50 working days for delivery.
