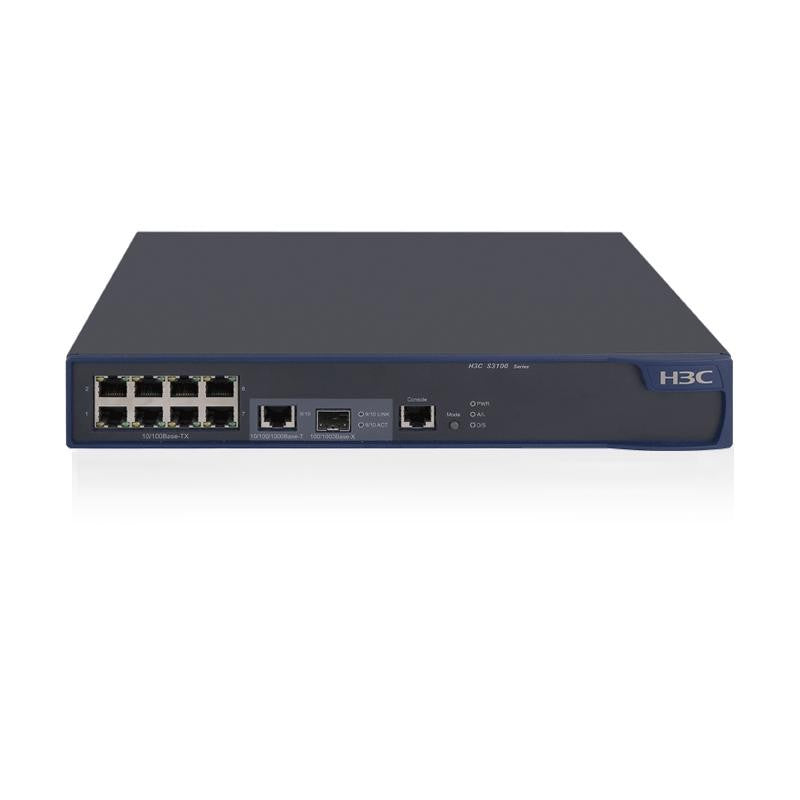

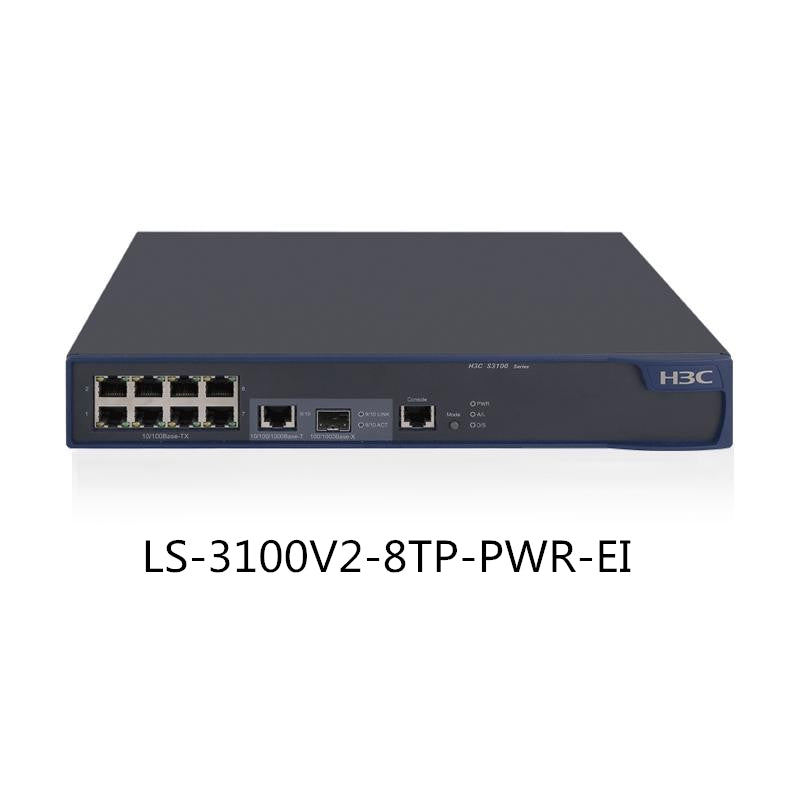

LS-S3100V2-8TP-PWR-EI Ethernet Switch 8-port 100M Layer 2 POE Managed Power Supply Switch

$735.00
SKU LS-3100V2-8TP-PWR-EI

Quick Details:

Products Status:Stock

Ports:≤ 8

Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:Full-Duplex

Certification:RADIUS

Switch Capacity:64Gbps

Brand Name:H3C

Model Number:LS-3100V2-8TP-PWR-EI

Place of Origin:Guangdong, China

Warranty:1year

Dimensions (W x D x H):300*220*43.6

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :

Quantity(Pieces)

1 - 1

>1

Est. Time(days)

30

To be negotiated

Product Description:

Item
S3100V2-8TP-EI(SI)
S3100V2-16TP-EI(SI)
S3100V2-26TP-EI(SI)
S3100V2-8TP-PWR-EI
S3100V2-16TP-PWR-EI
S3100V2-26TP-PWR-EI
Exchange capacity
32G
Packet forwarding rate
4.95Mpps
9.9Mpps
11.1Mpps
4.95Mpps
9.9Mpps
11.1Mpps
Dimensions (length × width × height)
(Unit: mm)
230×160×43.6
360×160×43.6
440×160×43.6
300×220×43.6
440×420×43.6
440×420×43.6
weight
<3.0 kg
<3.0 kg
<3.0 kg
<3.0 kg
<6.5 kg
<6.5 kg
Management port
1 Console port
Fixed port
8 of 10
/ 100Base-TX Ethernet port;
1 10/100
/ 1000Base-T Ethernet port and 1 multiplexed 100 / 1000Base-X SFP port
16 of 10
/ 100Base-TX Ethernet port; 2 10/100
/ 1000Base-T Ethernet port and 2 multiplexed 100 / 1000Base-X SFP ports
24 10 / 100Base-TX Ethernet ports;
2 10/100
/ 1000Base-T Ethernet port and 2 multiplexed 100 / 1000Base-X SFP ports
Eight 10 / 100Base-TX Ethernet ports (PoE);
1 10/100
/ 1000Base-T Ethernet port and 1 multiplexed 100 / 1000Base-X SFP port
16 10 / 100Base-TX Ethernet ports (PoE);
2 10/100
/ 1000Base-T Ethernet port and 2 multiplexed 100 / 1000Base-X SFP ports
24 10 / 100Base-TX Ethernet ports (PoE);
2 10/100
/ 1000Base-T Ethernet port and 2 multiplexed 100 / 1000Base-X SFP ports
Available modules
SFP-FE-SX-MM1310-A
SFP-FE-LX-SM1310-A
SFP-GE-SX-MM850-A
SFP-GE-LX-SM1310-A
SFP-STACK-Kit
SFP-GE-LX-SM1310-BIDI
SFP-GE-LX-SM1490-BIDI
SFP-FE-LX-SM1310-BIDI
SFP-FE-LX-SM1550-BIDI
PoE remote power supply
not support
support
port
Support IEEE 802.3x flow control (full duplex)
Support broadcast storm suppression based on port bandwidth percentage
MAC address
Support 8K MAC
Support black hole MAC
Support setting the maximum number of port MAC learning
Port aggregation
Support LACP
Support manual aggregation
Support maximum port aggregation group: number of ports / 2, each aggregation group supports up to 8 ports
VLAN
Support port-based VLAN (4K)
Support MAC-based VLAN
Support GVRP
Support VLAN VPN (QinQ)
Support protocol-based VLAN (EI series)
Support Voice VLAN (EI series)
Supports flexible QinQ (EI series)
Support port-based and global VLAN mapping (EI series)
Layer 2 ring network protocol
Support STP / RSTP / MSTP
Support Smart Link (EI series)
Stacked
Support IRF LITE stacking technology
Supports up to 16 devices stacked
Routing function
Support static routing
Multicast
IGMP Snooping v1 / v2 / v3
MLD Snooping v1 / v2 (EI series)
Multicast VLAN
Mirror
Support N: 1 port mirroring
Support RSPAN
Support stream mirroring (EI series)
ACL (EI series)
Support L2 ~ L4 packet filtering function, can match the first 80 bytes of the message, and provide the range based on source MAC
address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP / UDP port, TCP / UDP port ,
VLAN, etc. define ACL.
Support port-based, VLAN-based, global ACL delivery
Support ACL based on Time Range
Supports hardware-based IPv6 ACL and QoS
Supports inbound and outbound bidirectional ACL policies
QoS
Supports 4 output queues per port
Support 802.1p / DSCP priority
Support port queue scheduling (SP, WRR, SP + WRR)
Support flow-based packet filtering (supported by the following EI series)
Supports flow-based traffic statistics
Supports stream-based redirects
Supports flow-based priority marking
Supports flow-based rate limiting
Support traffic shaping
Safety features
User hierarchical management and password protection
Guest VLAN support
Support IEEE 802.1X authentication / centralized MAC address authentication
Support AAA & RADIUS & HWTACACS authentication
Support Layer 2 PORTAL certification / triple certification (EI series)
Support MAC address learning limit
Support MAC address black hole
Supports SSH 2.0
Support port isolation
Support ARP packet rate limit function
Support EAD (Terminal Admission Control) (supported by the following EI series)
Support IP source address protection
Support ARP intrusion detection function
Support IP + port binding
Support IP + MAC binding
Support port + MAC binding
Support IP + MAC + port binding
DHCP
Support DHCP client
Support DHCP Snooping
Support DHCP Snooping trust
Support DHCP Snooping option 82
Support DHCP Server (EI series)
Management and maintenance
Support XModem / FTP / TFTP loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration
Supports HGMP v2 cluster management
Support SNMP v1 / v2 / v3, WEB network management
Supports RMON 1, 2, 3, 9 MIBs
Support H3C iMC Intelligent Management Center
Support system log, hierarchical alarm
Support PING, Traceroute
Support Telnet remote maintenance
Support VCT (Virtual Cable Test) cable detection function
Support DLDP (Device Link Detection Protocol) unidirectional link detection protocol
Support Loopback-detection port loopback detection
Support IPv6 host network management feature family
power supply
AC:
Rated voltage range: 100V ~ 240V AC; 50 ~ 60Hz
Maximum voltage range: 90 ~ 264V AC; 47Hz ~ 63Hz
S3100V2-26TP-PWR-EI / S3100V2-16TP-PWR-EI supports both AC and DC inputs;
S3100V2-8TP-PWR-EI only supports AC input;
AC:
Rated voltage range: 100V ~ 240V AC; 50 ~ 60Hz
Maximum voltage range: 90 ~ 264V AC; 47Hz ~ 63Hz
DC:
Rated voltage range:
-47V ~ -57V DC
Maximum power consumption of the whole machine
Maximum power consumption of the whole machine: 9W
Maximum power consumption: 12W
Maximum power consumption of the whole machine: 13W
Maximum power consumption of the whole machine: 155W
Maximum PoE output power: 135W
AC input
Maximum power consumption: 300W
Maximum PoE output power: 250W
DC input
Maximum power consumption of the whole machine: 273W
Maximum PoE output power: 250W
AC input
Maximum power consumption of the whole machine: 465W
PoE maximum output power: 370W
DC input
Maximum power consumption of the whole machine: 400W
PoE maximum output power: 370W
Working temperature
0℃~45℃
Relative humidity in the working environment (non-condensing)
10%~90
