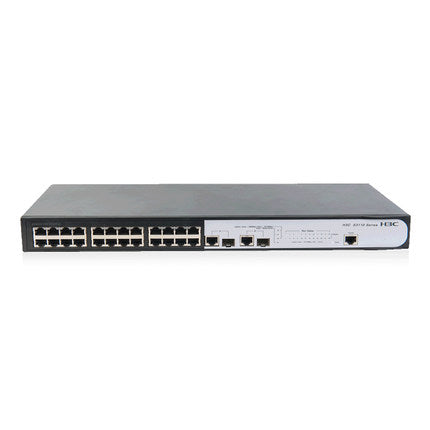

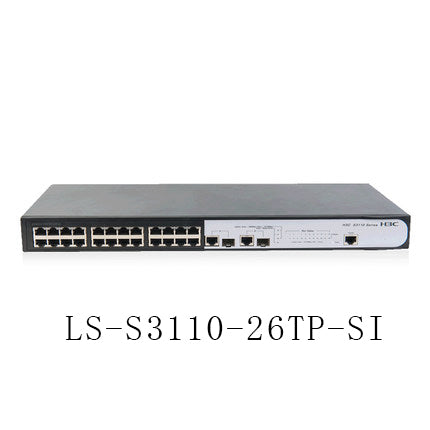

LS-S3110-26TP-SI 24-port 100M electrical port uplink Gigabit optical port switch

$235.00
SKU LS-S3110-26TP-SI

Quick Details:

Products Status:Stock

Ports:24

Transmission Rate:10/100Mbps

Function:QoS

Communication Mode:Full-Duplex

Certification:RADIUS

Switch Capacity:32Gbps

Brand Name:H3C

Model Number:LS-S3110-26TP-SI

Place of Origin:Guangdong, China

Warranty:1year

Dimensions (W x D x H):440*173*44mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :

Quantity(Pieces)

1 - 1

>1

Est. Time(days)

30

To be negotiated

Product Description:

Item
S3110-10TP-SI
S3110-26TP-SI
S3110-52TP-SI
Exchange capacity
32Gbps
Packet forwarding rate
4.2Mpps
6.6Mpps
13.2Mpps
Management port
1 console port
Fixed port
8 10/100Base-TX Ethernet ports, 2 10/100/1000Base-T Ethernet ports and 2 multiplexed 100/1000Base-X SFP ports
24 10/100Base-TX Ethernet ports, 2 10/100/1000Base-T Ethernet ports and 2 multiplexed 100/1000Base-X SFP ports
48 10/100Base-TX Ethernet ports, 2 10/100/1000Base-T Ethernet ports and 2 100/1000Base-X SFP ports
port
Support IEEE 802.3x flow control (full duplex)
Supports broadcast storm suppression based on port bandwidth percentage
Port aggregation
Support LACP
Support manual aggregation
Supports the maximum port aggregation group: the number of ports is /2, and each aggregation group supports a maximum of 8 ports.
VLAN
Support for port-based VLANs
Support for MAC-based VLANs
Support GVRP
Layer 2 ring network protocol
Support STP/RSTP/MSTP
Stacking
Support IRF LITE stacking technology
Supports up to 16 devices stacked
Multicast
IGMP Snooping v1/v2/v3
MLD Snooping v1/v2
Multicast VLAN
Mirror
Support port mirroring
Support for flow mirroring
ACL
Support L2 ~ L4 packet filtering function, can match the first 80 bytes of the packet, providing source MAC address, destination
MAC address, source IP address, destination IP address, IP protocol type, TCP / UDP port, TCP / UDP port range , VLAN, etc. define
the ACL.
Supports port-based and VLAN-based ACLs.
Support for time range based ACLs
Support for hardware-based IPv6 ACLs and QoS
QoS
Support Diff-Serv QoS
8 output queues per port
Support 802.1p/DSCP priority mapping
Support queue scheduling mechanism (SP, WRR, SP+WRR)
Support priority mark Mark/Remark
Support for stream-based packet filtering
Support for stream-based redirection
Support flow-based speed limit
Safety features
User hierarchical management and password protection
Support Guest VLAN
Support IEEE 802.1X authentication / centralized MAC address authentication
Support AAA & RADIUS & HWTACACS authentication
Support MAC address learning limit
Support MAC address black hole
Support SSH 2.0 to provide secure encrypted channels for user login
Support SSL to ensure data transmission security
Support for HABP
Support port isolation
Support IP source address protection
Support against Dos attacks
Support broadcast message suppression
Support primary and backup data backup mechanism
Supports IP+ port binding, IP+MAC binding, port+MAC binding, IP+MAC+ port binding
DHCP
Support DHCP Relay
Support DHCP Client
Support DHCP Snooping
Support DHCP Snooping Option82
Management and maintenance
Support Console/AUX Modem/Telnet/SSH2.0 command line configuration
Support FTP, TFTP, Xmodem, SFTP file download management
Support SNMP V1/V2c/V3
Support RMON
Support NTP clock
Support system work log
Support for cluster management
Support H3C iMC Intelligent Management Center
Input voltage
AC:100V~240V AC,50/60Hz~264V AC;47Hz~63Hz
Maximum power consumption of the whole machine
≤ 8W
≤ 12W
≤ 22W
Dimensions (width × depth × height)
(Unit: mm)
266×162×44
440×173×44
440×173×44
Weight (full)
≤ 1kg
≤ 2.2kg
≤ 2.3kg
Ambient temperature
Operating environment temperature: 0 ° C ~ 45 ° C
Storage environment temperature: -40 ° C ~ 70 ° C
environment humidity
Operating environment humidity: 5% to 95% (non-condensing)
Storage environment humidity: 5% to 95% (non-condensing)

Packing & Delivery:

1. DHL / UPS / FedEx / TNT , Door-to-Door.

2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We will choose the best and safe packaging material to make sure your orders won't be
damaged during delivery.

Company Profie:

TFC is one-stop supplier for quality new, used and refurbished IT hardware. NMI buys, sells, leases, rents, consigns and trades
just about every product line including Sun, HP, IBM, Dell,Lenovo, storage equipment as NetApp and EMC, telecom equipment as
H3C,HUAWEI,CISCO,Juniper etc...

Our Certificates:

FAQ:

Q1:What's your main product?

TFC mainly produce networking equipment, server , storage equipment etc.

Q2:What's your payment term?
Usually L/C,T/T,D/P,D/A ,it is determined by our negotiation.

Q3:Can you customize product?
Yes, TFC can supply you products according to your requirement .

Q4:What is the MOQ and Leading?
Usually 30~50 working days for delivery.
