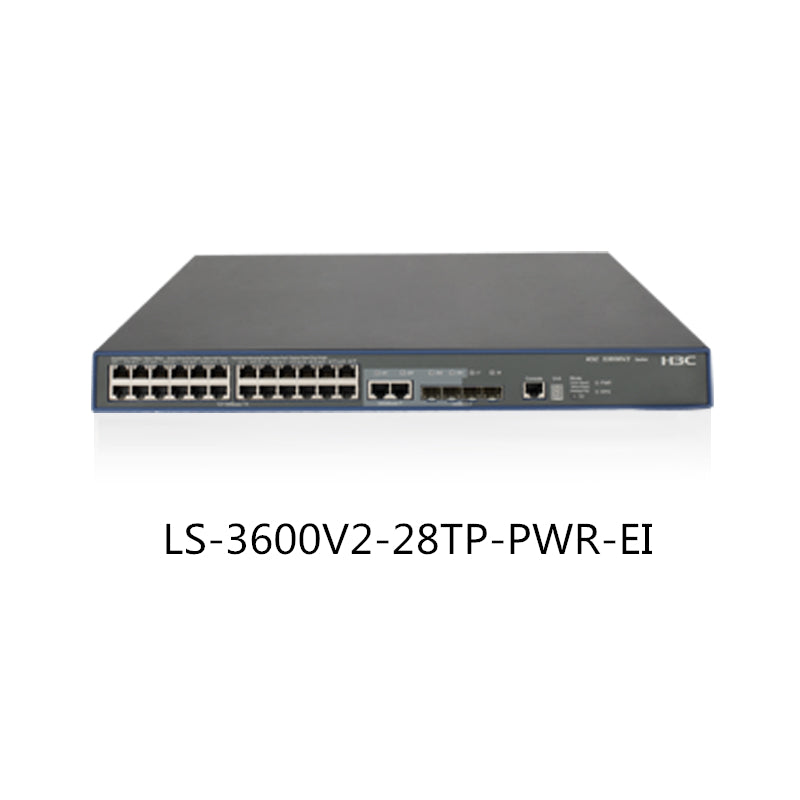

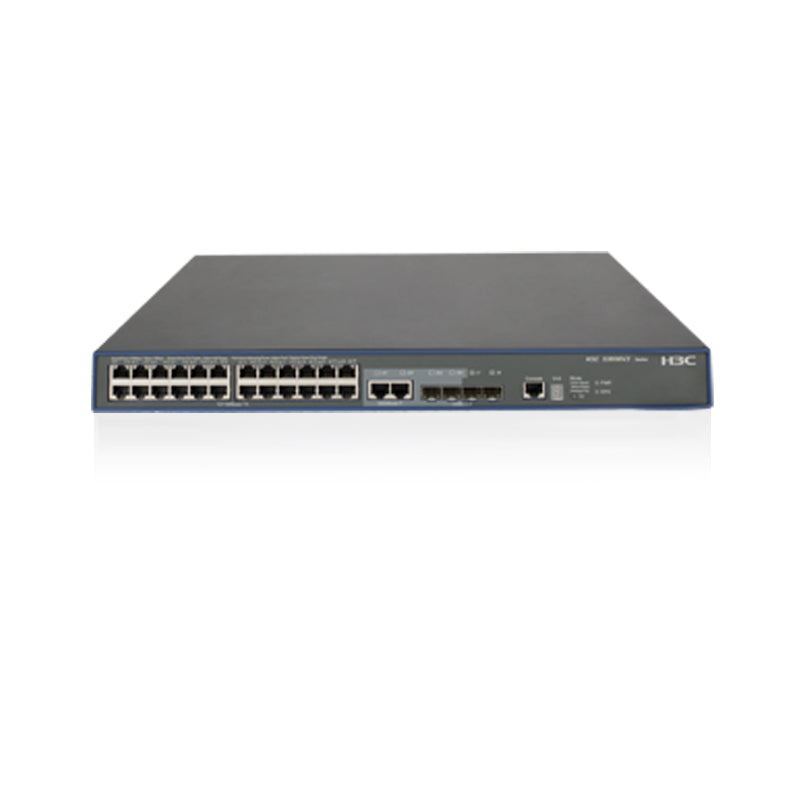

LS-S3600V2-28TP-PWR-EI Ethernet Switch 24-port 100M Layer 3 Network Management POE Switch
$1,575.00
SKU LS-3600V2-28TP-PWR-EI
Quick Details:
Products Status:Stock
Ports:24
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex
Certification:RADIUS
Switch Capacity:64Gbps
Brand Name:H3C
Model Number:LS-3600V2-28TP-PWR-EI
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*420*43.6mm
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
|
Item
|
S3600V2-28TP-PWR-SI
S3600V2-28TP-PWR-EI |
S3600V2-52TP-PWR-SI
S3600V2-52TP-PWR-EI |
S3600V2-28F-EI
|
||||
|
Management port
|
1 Console port
|
||||||
|
Service port
description |
Fixed
port |
24 10 / 100Base-TX Ethernet ports,
Two 1000Base-T and 1000Base-X SFP Combo ports, two 1000Base-X SFP Gigabit Ethernet ports |
48 10 / 100Base-
TX Ethernet ports, two 1000Base-T and 1000Base-X SFP Combo ports, two 1000Base-X SFP Gigabit Ethernet ports |
24 100Base-FX SFP Ethernet ports,
Two 1000Base-T and 1000Base-X SFP Combo ports, two 1000Base-X SFP Gigabit Ethernet ports |
|||
|
Optional
module |
1000BASE-SX-SFP
1000BASE-LX-SFP 1000BASE-LH-SFP 1000BASE-ZX-LR-SFP 1000BASE-ZX-VR-SFP 100Base-FX-MM-SFP 100Base-FX-SM-SFP |
||||||
|
Exchange capacity
|
64Gbps
|
||||||
|
Layer 2 / Layer 3
forwarding rate |
9.6Mpps/14.1Mpps
|
13.2Mpps/17.7Mpps
|
9.6Mpps/14.1Mpps
|
||||
|
Exchange mode
|
Store and forward mode (Store and Forward)
|
||||||
|
Port
|
Support IEEE 802.3x flow control (full duplex)
Support broadcast storm suppression based on port rate percentage Support pps-based broadcast storm suppression |
||||||
|
Port aggregation
|
Support LACP
Support manual aggregation Supports up to 128 aggregation groups, each group supports up to 8 ports |
||||||
|
MAC address
|
Support 32K MAC address
Support black hole MAC Support setting the maximum number of port MAC learning |
||||||
|
VLAN
|
Support port-based VLAN (4K)
Supports protocol-based VLAN Support MAC-based VLAN Support Voice VLAN Support Super VLAN Support PVLAN Support GVRP Support VLAN VPN (QinQ), flexible QinQ |
||||||
|
Stacked
|
Support IRF2 intelligent elastic architecture
Support distributed device management, distributed link aggregation Support distributed elastic routing (EI series) Supports stacking through standard Ethernet interfaces, etc. Support local stacking and remote stacking |
||||||
|
DHCP
|
Support DHCP Client / DHCP Relay / DHCP Snooping
Support DHCP Server |
||||||
|
IP routing
|
Support static routing, RIPv1 / v2, RIPng
Supports OSPFv1 / v2, OSPFv3 (EI series) Support IS-IS, IS-ISv6 (EI series) Supports BGP, BGP4 + for IPv6 (EI series) Support policy routing, ECMP Support VRRP / VRRPv3 |
||||||
|
MCE
|
Support MCE (Multi-CE)
|
||||||
|
Multicast
|
Support IGMP Snooping v1 / v2 / v3, MLD Snooping v1 / v2
Supports multicast VLAN Support IGMP V1 / V2 / V3, MLD v1 / v2, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by EI series) |
||||||
|
Reliability
|
Support STP / RSTP / MSTP protocol
Support Smart Link Supports Smart Link multiple instances Support BFD Support RRPP |
||||||
|
IPV6
|
Support ND (Neighbor Discovery)
Support ND snooping, ND proxy, ND detection Support PMTU Support IPv6 Ping, IPv6 Tracert, IPv6 Telnet, IPv6 TFTP Support manual tunnel configuration Support 6 to 4 tunnel Supports ISATAP (Intra-site Automatic Tunneling Protocol) tunnel Support Auto-tunnel (that is, Automatic IPv4 Compatible IPv6 Tunnel) |
||||||
|
Mirror
|
Support N: 4 port mirroring
Supports flow mirroring RSPAN (Remote Switched Port Analyzer) |
||||||
|
QoS/ACL
|
Support
ACL |
Support L2 ~ L4 packet filtering function, provide source MAC address, destination MAC address, source IP address, destination IP
address, port, protocol type, VLAN, etc. Supports ACL based on source IPv6 address, destination IPv6 address, TCP / UDP port number, protocol type, etc. Support time period based ACL Supports inbound and outbound bidirectional ACL policies Support VLAN-based ACL |
|||||
|
Supports
QoS |
Supports limiting the rate at which a port receives and sends packets
Supports 802.1p and DSCP priority remarking of packets Support message redirection Support CAR function Support 8 port output queues Support flexible queue scheduling algorithm, can be set based on port and queue at the same time, support SP, WRR, SP + WRR and other modes |
||||||
|
Safety features
|
User hierarchical management and password protection
Support IEEE 802.1X authentication / centralized MAC address authentication Supports Layer 2 Portal authentication / triple authentication Support AAA & RADIUS authentication Support MAC address learning limit Support MAC address binding with port and IP Support SSH2.0 Supports DoS attack prevention Support ARP intrusion detection function Support port isolation Support MAC address black hole |
||||||
|
Management and
maintenance |
Support XModem / FTP / TFTP loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration Support SNMPV1 / V2 / V3, WEB network management Supports RMON 1, 2, 3, 9 MIBs Support IMC Intelligent Management Center Supports HGMPv2 cluster management Support system log, hierarchical alarm, debugging information output Support PING, Tracert Supports detection and alarm of power-on POST, fan stall, PoE device overheating, etc. Support VCT (Virtual Cable Test) cable detection function Support DLDP (Device Link Detection Protocol) Support port loopback detection Support IPv6 host function family to realize IPv6 management |
||||||
|
Dimensions (mm)
Width × depth × height |
440 × 260 × 43.6
440 × 420 × 43.6 (PWR series) |
||||||
|
Weight
|
S3600V2-28TP-SI 、S3600V2-28TP-EI 、S3600V2-28F-EI 、S3600V2-52TP-SI 、S3600V2-52TP-EI：5kg
S3600V2-28TP-PWR-SI 、S3600V2-28TP-PWR-EI、S3600V2-52TP-PWR-SI、S3600V2-52TP-PWR-EI：10kg |
||||||
|
Input voltage
|
The S3600V2-SI series non-POE switches only support AC power input. The S3600V2-SI series POE switches and S3600V2-EI series
switches support AC power input and DC power input. AC: Rated voltage range: 100 ～ 240V AC .; 50 / 60Hz Maximum voltage range: 90 ～ 264V AC; 47 / 63Hz DC: Rated voltage range: -48 ～ -60V DC. Maximum voltage range: -36 ～ -72V DC. Input voltage range during POE power supply: -45 ～ -55V DC Input voltage range during POE + power supply: -55 ～ -57VDC |
||||||
|
Power consumption
(at full load) |
AC：465W
DC：795W |
AC：440W
DC：820W |
60W
|
||||
|
Working temperature
|
0～50℃
|
||||||
|
Relative humidity
(Non-condensing) |
5%～90%
|
||||||
