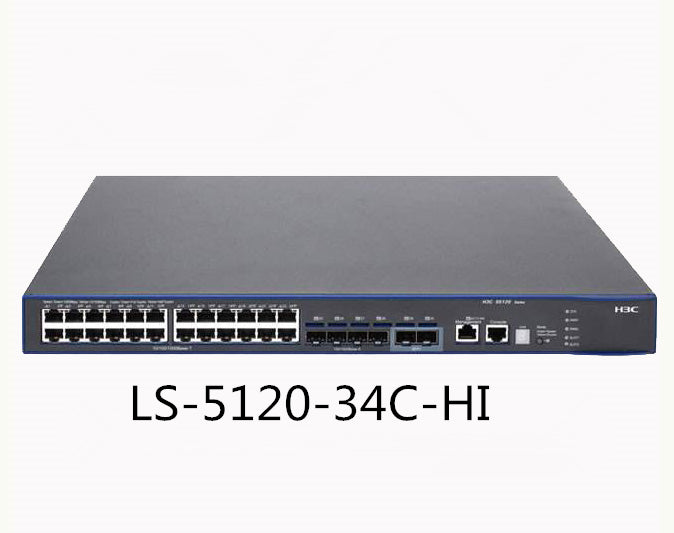

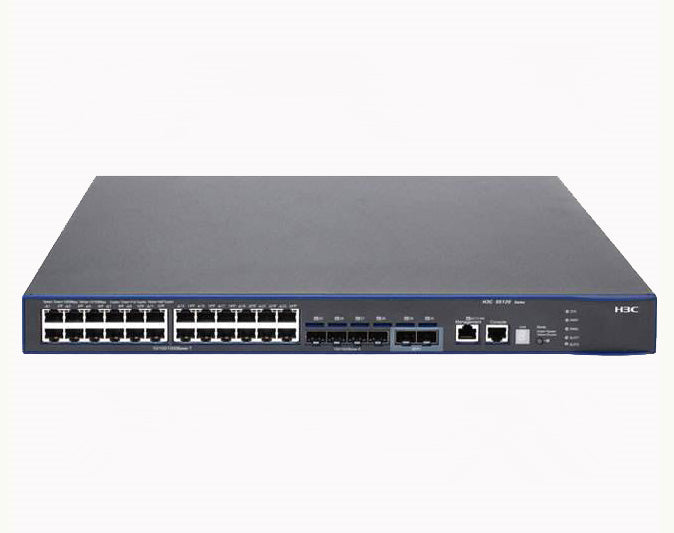

LS-S5120-34C-HI ethernet switches 34-port core intelligent core enhanced access switch

$1,775.00
SKU LS-S5120-34C-HI

Quick Details:

Products Status:Stock

Ports:24 port

Transmission Rate:10/100/1000Mbps

Function:QoS

Communication Mode:Full-Duplex

Certification:RADIUS

Switch Capacity:350Gbps

Brand Name:H3C

Model Number:LS-5120-34C-HI

Place of Origin:Guangdong, China

Warranty:1year

Dimensions (W x D x H):440*360*43.6mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :

Quantity(Pieces)

1 - 1

>1

Est. Time(days)

30

To be negotiated

Product Description:

Support features
S5120-28SC-HI
S5120-52SC-HI
S5120-34C-HI
S5120-58C-HI
Line speed exchange
Backplane bandwidth
350Gbps
Packet forwarding rate
96Mpps
132Mpps
132Mpps
168Mpps
Management port
1 console port, 1 outlet port
Front panel service port
24 10/100/1000Base-T Ethernet ports 2 100/1000Base-X Gigabit SFP ports (Combo) 2 SFP+ ports
48 10/100/1000Base-T Ethernet ports 2 100/1000Base-X Gigabit SFP ports (Combo) 2 SFP+ ports
24 10/100/1000Base-T Ethernet ports 4 100/1000Base-X Gigabit SFP ports 2 SFP+ ports
48 10/100/1000Base-T Ethernet ports 4 100/1000Base-X Gigabit SFP ports 2 SFP+ ports
Interface module expansion card slot
1 on the back panel
2, located on the rear panel
Optional interface module expansion card
Single-port 10GE XFP interface module Two-port 10GE XFP interface module Two-port 10GE CX4 interface module Two-port SFP+
interface module Two-port SFP interface module
Single port 10GE XFP interface module
Two-port 10GE XFP interface module
Two-port 10GE CX4 interface module
Two-port SFP+ interface module
Two-port SFP interface module
Eight-port SFP interface module (S5120-34C-HI is only supported by Slot1)
Eight-port 10/100/10000Base-T electrical interface module (S5120-34C-HI is only supported by Slot1)
Link aggregation
Support LACP
Support manual aggregation
Supports up to 128 aggregation groups, each supporting up to 8 GE or 8 10GE ports
flow control
Support IEEE802.3x flow control (full duplex)
Supports storm suppression based on port rate percentage
Support PPS-based storm suppression
Jumbo Frame
Support, the maximum frame length is 9K
MAC address table
Support 32K MAC addresses
Support black hole MAC address
Supports setting the maximum number of port MAC addresses.
Support static multicast MAC
VLAN
Support for port-based VLANs (4094)
Support QinQ and flexible QinQ
Support for Voice VLAN
Support protocol VLAN
Support MAC VLAN
Support subnet VLAN
Support GVRP
Support for Isolate User VLAN
VLAN Mapping
Support 1:1 VLAN Mapping
Support N:1 VLAN Mapping
Support 2:2 VLAN Mapping
ARP
Support for free ARP
Support for standard proxy ARP and local proxy ARP
Support ARP source suppression
ARP detection is enabled. Check the DHCP snooping security entries, 802.1x entries, or IP/MAC static binding entries.
ND
Support ND proxy
Support for IPv6 ND detection
Support for IPv6 ND snooping
VLAN virtual interface
support
DHCP
Support DHCP client
Support DHCP monitoring
Support DHCP relay
Support DHCP server
DHCP snooping option 82 / DHCP relay option 82
Support for IPv6 DHCP client
Support IPv6 DHCP snooping
Support for IPv6 DHCP relay
Support for IPv6 DHCP server
UDP Helper
Support UDP Helper
DNS
Support for static domain name resolution
Support dynamic domain name resolution client
Support for IPv4 and IPv6 addresses
IP routing
Supports IPv4 and IPv6 Layer 3 routing
IP multicast
Support for IPv4 and IPv6 multicast protocols
Broadcast/multicast/unicast storm suppression
Supports storm suppression based on port rate percentage
Support PPS-based storm suppression
Spanning Tree Protocol
Support STP/RSTP/MSTP protocol
Support for STP Root Guard
Support BPDU Guard
Layer 2 ring network protocol
Support RRPP protocol
Support RRPP multi-instance
Support Smart Link multi-instance
Monitor link
support
QoS/ACL
Limits the rate at which packets are received on the port and the rate at which packets are sent. The granularity is 8 Kbit/s.
Support packet redirection
Support CAR (Committed Access Rate) function
8 output queues per port
Supports flexible queue scheduling algorithms, which can be set based on ports and queues at the same time. It supports SP, WRR,
SP+WRR, and supports WFQ and SP+WFQ (S5120-34C-HI/S5120-58C-HI).
Supports 802.1p and DSCP priority re-marking of packets
Supports Layer 2~4 packet filtering to provide traffic classification based on source/destination MAC address, source/destination
IP (IPv4/IPv6) address, port, protocol, and VLAN.
Support time period (Time Range)
Supports two-way ACL policies in the inbound and outbound directions
Supports sending ACLs based on VLANs.
Support WRED
Support queue Shapping
Support User Profile
Mirror
Support for flow mirroring
Support port mirroring
Support multiple mirrored viewing ports
Support for local and remote port mirroring
Remote mirroring supports multiple mirror ports (reflector-port)
Safety features
Support user hierarchical management and password protection
Support AAA certification
Support RADIUS authentication
Support HWTACACS
Support for SSH 2.0
Support port isolation
Support MAC address authentication
Support IP+MAC+ port binding
Support for IP Source Guard
Support for HTTPs
Support SSL
Support PKI (Public Key Infrastructure)
Support Portal
Support EAD
Support bootrom access control (password recovery)
Support for Triple authentication
Support multiple backup RADIUS Server
Support for IPv6 RADIUS Sever
Support IPv6 port binding
802.1X
Support for port-based authentication and MAC-based authentication
Support Guest VLAN
Support TRUNK port authentication
Supports dynamic QoS/ACL/VLAN delivery based on 802.1x
IRF2 intelligent elastic architecture
Support IRF2 intelligent flexible architecture
Support distributed device management, distributed link aggregation
Support stacking through standard Ethernet interfaces, etc.
Support local stacking and remote stacking
Loading and upgrading
Support XModem protocol to implement load upgrade
Support FTP (File Transfer Protocol) load upgrade
Support TFTP (Trivial File Transfer Protocol) load upgrade
Support ISSU
management
Support for command line interface (CLI) configuration
Support Telnet remote configuration
Support through the console port configuration
Support SNMP
Support RMON alarms, events, and history
Support RMON2
Support iMC network management system and WEB network management
Support system log
Support hierarchical alarm
Support cluster management HGMP v2
Support BIMS
Support NetStream (S5120-58C/34C-HI)
maintain
Support Ping, Tracert
Support Telnet remote maintenance
Support for Virtual Cable Test
Support 802.1ag/802.3ah
Support DLDP
Support sFlow
Green technology
Support one-click energy saving
Support EEE (802.3az)
Port automatic power down function
Port timing down function (Schedule job)
Dimensions (width × depth × height) (mm)
440×420 ×43.6
440×420 ×43.6
440×360×43.6
440×420×43.6
weight
7.7kg
8.2kg
7.5kg
8.5kg
Power module slot
2, located on the rear panel
2, located on the rear panel
Input voltage
AC: rated voltage range: 100V ~ 240V AC, 50/60Hz
Maximum voltage range: 90V ~ 264V AC, 47 ~ 63Hz
DC: rated voltage range: -48V ~ -60V DC
The maximum voltage range: -36V ~ -72V DC, can be directly used in the equipment room -48V DC, you can also choose the external
RPS power supply recommended by H3C company
Power consumption
Static
AC:48.2W
AC:68W DC:57.6W
AC:62W DC:55.5W
AC:94W DC:86.4W

DC:51.1W
full load
AC:107W DC:85W
AC:145W DC:126W
AC:141W DC:115W
AC:191W DC:180W
Working temperature
0℃~50℃
Working environment humidity (non-condensing)
5%~95%
