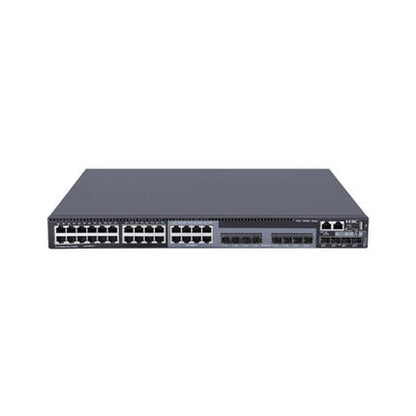

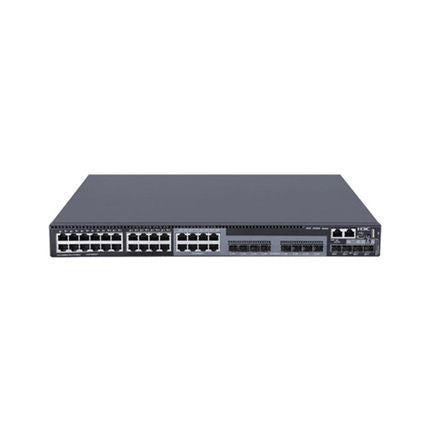

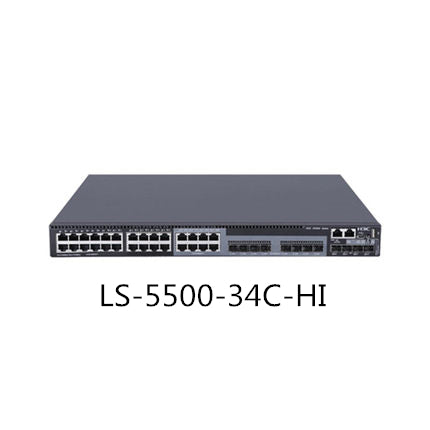

LS-S5500-34C-HI Ethernet switch 24-port Gigabit three-layer 10 Gigabit uplink core switch

$2,014.00
SKU LS-S5500-34C-HI

Quick Details:

Products Status:Stock

Ports:24 port

Transmission Rate:10/100/1000Mbps

Function:QoS

Communication Mode:Full-Duplex

Certification:RADIUS

Switch Capacity:350Gbps

Brand Name:H3C

Model Number:LS-S5500-34C-HI

Place of Origin:Guangdong, China

Warranty:1year

Dimensions (W x D x H):440*360*43.6mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :

Quantity(Pieces)

1 - 1

>1

Est. Time(days)

30

To be negotiated

Product Description:

Support features
S5500-34C-HI /S5500-34C-PWR-HI
S5500-58C-HI/ S5500-58C-PWR-HI
Packet forwarding rate (machine)
132Mpps
168Mpps
Dimensions (length × width × height)
(Unit: mm)
440×360×43.6
440×420 ×43.6
weight
7.5kg/9.5kg
8.5kg/10.5kg
Management port
1 console port, 1 outlet port
Service port description
24 10/100/1000Base-T Ethernet ports
4 1000Base-X Gigabit SFP ports
2 SFP + ports
48 10/100/1000Base-T Ethernet ports
4 1000Base-X Gigabit SFP ports
2 SFP + ports
Expansion slot
2 expansion slots
Optional interface module
Single port 10GE XFP interface module
Two-port 10GE XFP interface module
Two-port 10GE CX4 interface module
Two-port SFP+ interface module
Two-port SFP interface module
Eight-port SFP interface module (S5500-34C-HI is only supported by Slot1)
Eight-port 10/100/1000Base-T electrical interface module (S5500-34C-HI is only supported by Slot1)
Power over Ethernet
Support 802.3af and 802.3at (PWR models only)
Support 802.3af and 802.3at (PWR models only)
Port aggregation
Support LACP
Support manual aggregation
Supports up to 128 aggregation groups, each supporting up to 8 GE or 4 10GE ports
Port characteristics
Support IEEE802.3x flow control (full duplex)
Supports storm suppression based on port rate percentage
Support PPS-based storm suppression
MAC address table
Support 32K MAC address
Support black hole MAC address
Supports setting the maximum number of port MAC addresses.
VLAN
Support for port-based VLANs (4K)
Support for MAC-based VLANs
Protocol-based VLAN
IP subnet-based VLAN
Support QinQ, flexible QinQ
Support VLAN mapping
Support for Voice VLAN
Support GVRP
Layer 2 ring network protocol
Support STP/RSTP/MSTP
Support RRPP
DHCP
DHCP Client

DHCP Snooping

DHCP Relay

DHCP Server

DHCP Snooping option82/DHCP Relay option82
IRF2
Intelligent flexible architecture
Support IRF2 intelligent flexible architecture
Support distributed device management, distributed link aggregation, distributed elastic routing
Support stacking through standard Ethernet interfaces, etc.
Support local stacking and remote stacking
IP routing
Support static routing
Support RIPv1/v2, RIPng
Support OSPFv1/v2, OSPFv3
Support BGP4, BGP4+ for IPv6
Support equal cost routing, policy routing
Support VRRP/VRRPv3
IPv6
Support ND (Neighbor Discovery)
Support PMTU
Support IPv6-Ping, IPv6-Tracert, IPv6-Telnet, IPv6-TFTP
Support manual configuration of the tunnel
Support 6to4 tunnel
Support for ISATAP tunnel
Support IPv6 in IPv6 tunnel
Support IPv4 in IPv6 tunnel
Support GRE tunnel
Multicast
Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2
Support PIM Snooping
Support MLD Proxy
Support for multicast VLAN
Support IGMP v1/v2/v3, MLD v1/v2
Support PIM-DM, PIM-SM, PIM-SSM
Support MSDP, MSDP for IPv6
Support MBGP, MBGP for Ipv6
MPLS
Support MPLS forwarding, including MPLS LER/MPLS LSR
Support LSP
Support LDP
Support MPLS TE
Support L2VPN
Support L3VPN
Support VPLS
Support MCE
Mirror
Support for flow mirroring
Support N: 4 port mirroring
Support for local and remote port mirroring
Support ACLQoS
Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, providing source MAC address, destination MAC address, source IP
(IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, VLAN traffic classification
Support Time Range ACL
Supports two-way ACL policies in the inbound and outbound directions
Supports sending ACLs based on VLANs.
Support HQOS
Limits the rate at which packets are received on the port and the rate at which packets are sent.
Support packet redirection
Support CAR (Committed Access Rate) function
Each port supports 8 output queues, and the CPU port supports 48 queues.
Supports flexible queue scheduling algorithms, which can be set based on ports and queues simultaneously, and supports SP, WRR,
and SP+WRR modes.
Supports 802.1p and DSCP priority re-marking of packets
Safety features
Support user hierarchical management and password protection
Support 802.1X authentication/centralized MAC address authentication
Support Guest VLAN
Support RADIUS authentication
Support for SSH 2.0
Support port isolation
Support port security
Support PORTAL certification
Support EAD
DHCP snooping can be supported to prevent fraudulent DHCP servers
Support dynamic ARP detection to prevent man-in-the-middle attacks and ARP denial of service
Support BPDU guard, Root guard
Support uRPF (unicast reverse path detection), eliminate IP source address spoofing, prevent viruses and attacks
Support IP/Port/MAC binding function
Supports plain text and MD5 cipher text authentication for OSPF and RIPv2 packets.
Management and maintenance
Support XModem/FTP/TFTP load upgrade
Supports command line interface (CLI), Telnet, and console port configuration.
Support SNMPv1/v2/v3, WEB network management
Support RMON (Remote Monitoring) alarms, events, history
Support iMC Intelligent Management Center
Support system log, hierarchical alarm, debugging information output
Support HGMPv2
Support NTP
Support power supply alarm function, fan, temperature alarm
Support Ping, Tracert
Support VCT (Virtual Cable Test) cable detection function
Supports the Device Link Detection Protocol (DLDP) unidirectional link detection protocol.
Support LLDP
Support loopback-detection port loopback detection
Support IPFIX
Support one-click energy saving
Support Ethernet time synchronization 1588v2
powered by
interflow
Rated voltage range: 100V ~ 240V AC, 50/60Hz
Maximum voltage range: 90V ~ 264V AC, 47/63Hz
DC
Rated voltage range:
-48V to -60V DC
Power consumption (at full load)
Non-POE model: 141W
POE model:
AC power supply:
The maximum power consumption is 920W, of which the system power consumption is 200W, and the POE external power supply is 720W.
Non-POE model: 191W
POE model:
AC power supply:
The maximum power consumption is 1820W, of which the system power consumption is 380W, and the external power supply of the POE is
1440W.
Working temperature
-5℃~50℃
Working environment relative humidity (non-condensing)
10%~90%

Packing & Delivery:

1. DHL / UPS / FedEx / TNT , Door-to-Door.

2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We will choose the best and safe packaging material to make sure your orders won't be
damaged during delivery.

Company Profie:

TFC is one-stop supplier for quality new, used and refurbished IT hardware. NMI buys, sells, leases, rents, consigns and trades
just about every product line including Sun, HP, IBM, Dell,Lenovo, storage equipment as NetApp and EMC, telecom equipment as
H3C,HUAWEI,CISCO,Juniper etc...

Our Certificates:

FAQ:

Q1:What's your main product?

TFC mainly produce networking equipment, server , storage equipment etc.

Q2:What's your payment term?
Usually L/C,T/T,D/P,D/A ,it is determined by our negotiation.

Q3:Can you customize product?
Yes, TFC can supply you products according to your requirement .

Q4:What is the MOQ and Leading?
Usually 30~50 working days for delivery.
