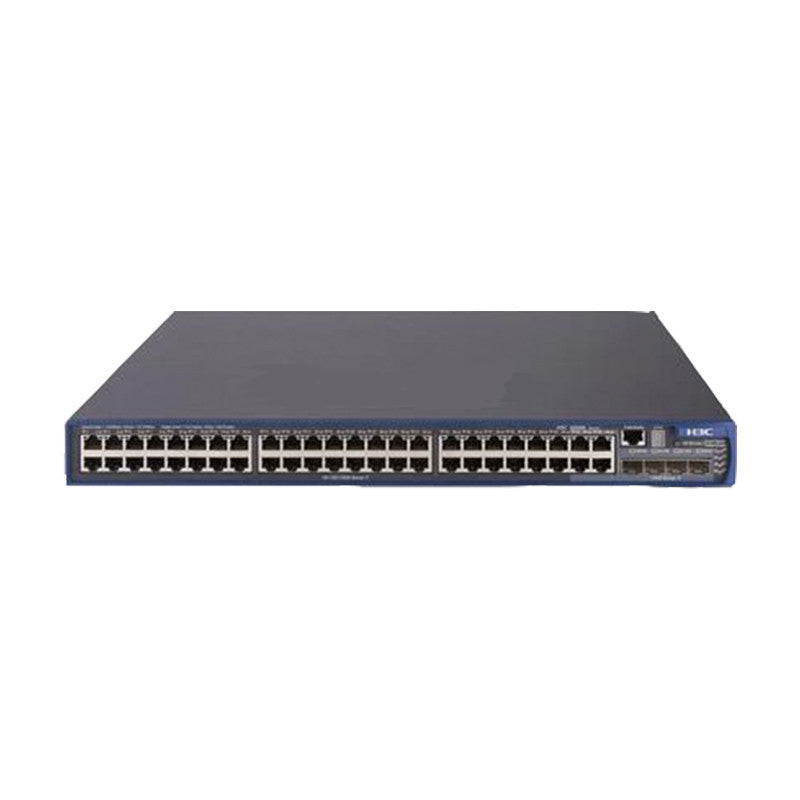

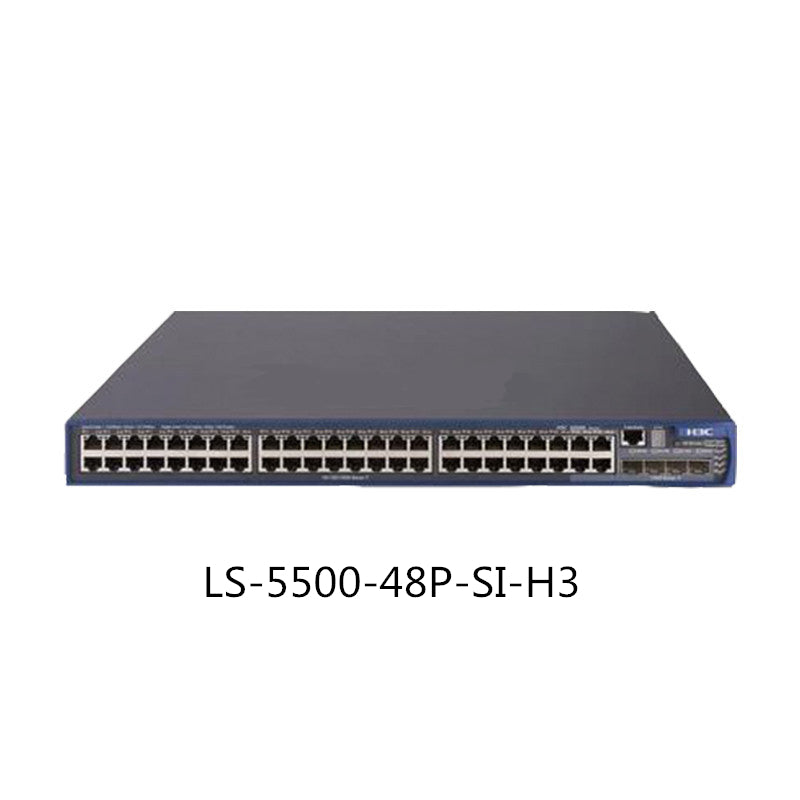

LS-S5500-48P-SI Ethernet Switch 48-port Full Gigabit Layer 3 Core Intelligent Aggregation Switch
$2,855.00
SKU LS-5500-48P-SI-H3
Quick Details:
Products Status:Stock
Ports:≥ 48
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex
Certification:RADIUS
Switch Capacity:240Gbps
Brand Name:H3C
Model Number:LS-5500-48P-SI-H3
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*300*43.6
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
|
Supporting features
|
S5500-24P-SI
|
S5500-48P-SI
|
S5500-28C-SI
|
S5500-52C-SI
|
|
|
Machine exchange capacity
|
256Gbps
|
256Gbps
|
256Gbps
|
256Gbps
|
|
|
Switching capacity (full duplex)
|
192Gbps
|
240Gbps
|
192Gbps
|
240Gbps
|
|
|
Packet forwarding rate (whole machine)
|
36Mpps
|
72Mpps
|
96Mpps
|
132Mpps
|
|
|
Dimensions (length × width × height) (unit: mm)
|
440×300×43.6
|
440×300×43.6
|
|||
|
Weight
|
4kg
|
4.5kg
|
4kg
|
4.5kg
|
|
|
Management port
|
1 Console port
|
||||
|
Service port description
|
24 10/100
/ 1000Base-T Ethernet port 4 multiplexed 1000Base-X Gigabit SFP ports |
48 10/100
/ 1000 Base-T Ethernet port 4 multiplexed 1000Base-X Gigabit SFP ports |
24 10/100
/ 1000Base-T Ethernet port 4 multiplexed 1000Base-X Gigabit SFP ports |
48 10/100
/ 1000 Base-T Ethernet port 4 multiplexed 1000Base-X Gigabit SFP ports |
|
|
Expansion slot
|
not support
|
2 expansion slots
|
|||
|
Optional interface module
|
not support
|
Single-port 10GE XFP interface module
Two-port 10GE XFP interface module Two-port 10GE CX4 interface module Two-port GE SFP interface module Two-port 10GE SFP + interface module |
|||
|
Power over Ethernet PoE +
|
not support
|
||||
|
Port aggregation
|
Support LACP
Support manual aggregation Supports up to 12/24 aggregation groups, each group supports up to 8 GE or 2 10GE ports (10GE models) |
||||
|
Port characteristics
|
Support IEEE802.3x flow control (full duplex)
Support storm suppression based on port rate percentage Support PPS-based storm suppression |
||||
|
MAC address
|
Support black hole MAC
Support setting the maximum number of port MAC address learning |
||||
|
Stacked
|
Support IRF2 Intelligent Flexible Architecture (S5500C-SI)
Supports stacking via standard 10 Gigabit Ethernet interfaces Support local stacking and remote stacking Support IRF LITE stacking technology |
||||
|
VLAN
|
Support port-based VLAN (4K)
Support MAC-based VLAN Protocol-based VLAN Support QinQ, selective QinQ Support VLAN Mapping Support Voice VLAN Support GVRP |
||||
|
DHCP
|
Support DHCP Client
Support DHCP Snooping Support DHCP Relay Supports DHCP Snooping option82 / DHCP Snooping option82 |
||||
|
IP routing
|
Support static routing
Support RIP / RIPng |
||||
|
Multicast
|
Support IGMP Snooping / MLD Snooping
Supports multicast VLAN Support unknown multicast drop |
||||
|
Layer 2 ring network protocol
|
Support STP / RSTP / MSTP
Support Smart Link Support RRPP |
||||
|
Mirror
|
Support N: 4 port mirroring
Supports flow mirroring |
||||
|
ACL
|
Supports L2 (Layer 2) ~ L4 (Layer 4) packet filtering functions, and provides traffic classification based on source MAC address,
destination MAC address, source IP address, destination IP address, TCP / UDP port, protocol type, and VLAN Support Time Range ACL Support VLAN-based ACL |
||||
|
QoS
|
Supports limiting the rate at which a port receives and sends packets
Support message redirection Support CAR (Committed Access Rate) function Supports 8 output queues per port Support port queue scheduling (SP, WRR, SP + WRR) Supports 802.1p and DSCP priority remarking of packets |
||||
|
Safety features
|
Support user hierarchical management and password protection
Support 802.1X authentication / centralized MAC address authentication / web authentication Support Triple Authentication Guest VLAN support Support RADIUS authentication Supports SSH 2.0 Support port isolation Support port security Support EAD |
||||
|
Management and maintenance
|
Support XModem / FTP / TFTP loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration Support SNMPv1 / v2 / v3, WEB network management Support RMON (Remote Monitoring) alarm, event, history Support iMC Intelligent Management Center Support system log, hierarchical alarm, and debugging information output Support HGMPv2 Support NTP Support power alarm function, fan, temperature alarm Support Ping, Tracert Support VCT (Virtual Cable Test) cable detection function Support DLDP (Device Link Detection Protocol) unidirectional link detection protocol Support Loopback-detection port loopback detection |
||||
|
Input voltage
|
AC
|
Rated voltage range: 100V ～ 240V AC, 50 / 60Hz
Maximum voltage range: 90V ～ 264V AC, 47 / 63Hz |
|||
|
DC
|
Rated voltage range:
10.8V to 13.2V DC (for RPS only) |
||||
|
Power consumption (at full load)
|
62W
|
110W
|
80W
|
120W
|
|
|
Working temperature
|
0℃～45℃
|
||||
|
Relative humidity in the working environment (non-condensing)
|
10%～90%
|
||||
