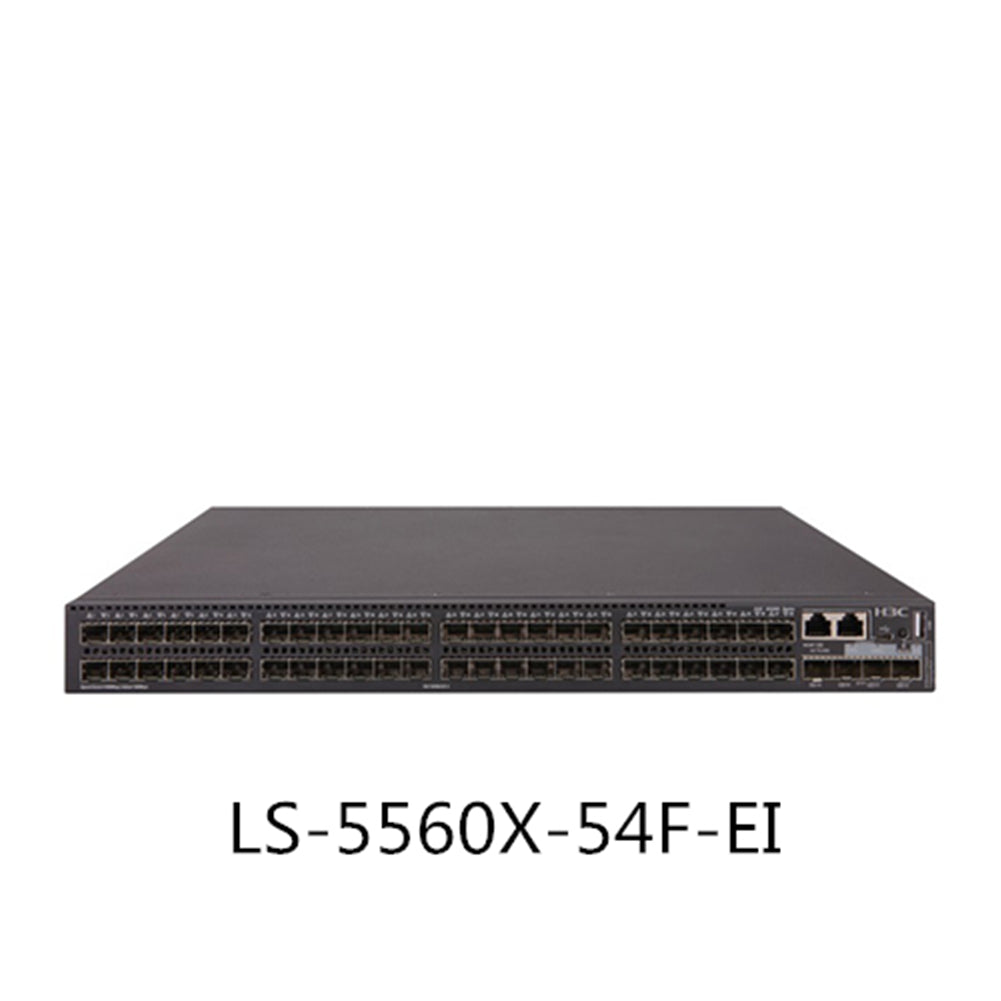

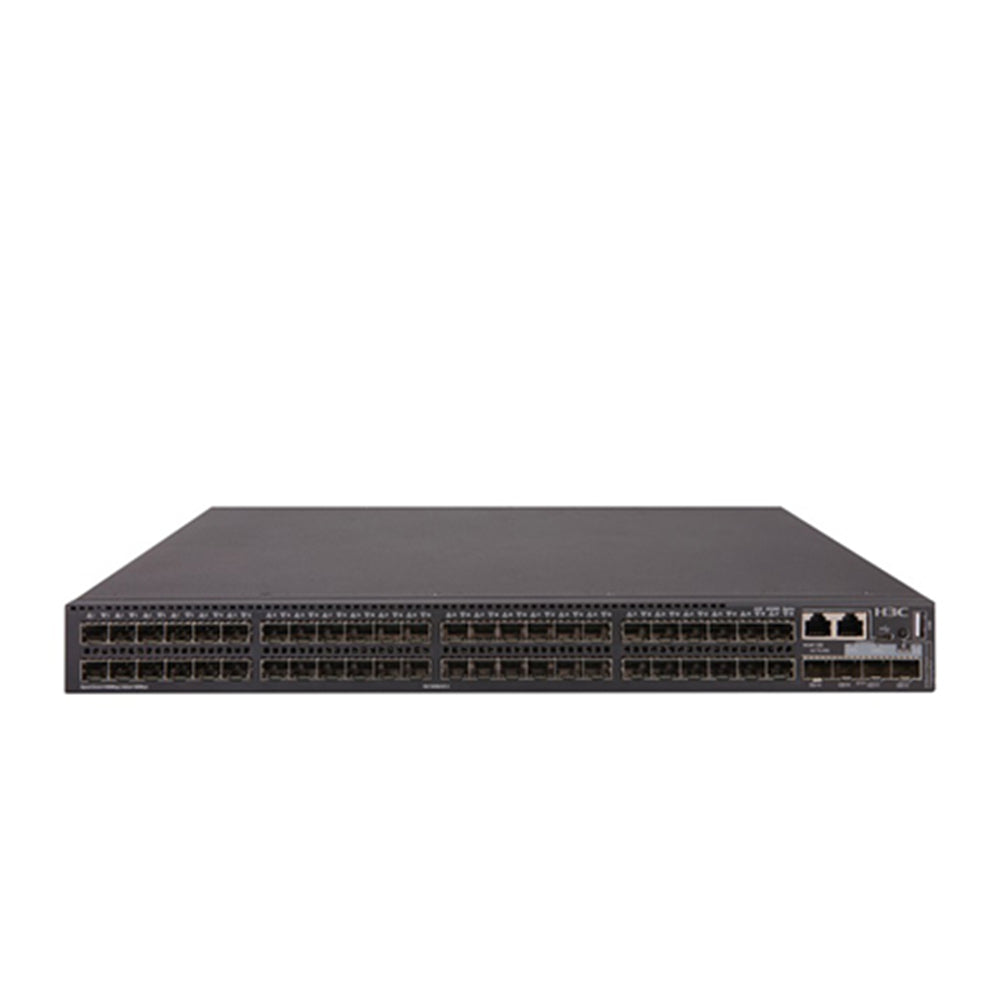

LS-S5560X-54F-EI Ethernet switch 48-port full Gigabit fiber port Layer 3 manageable intelligent core switch
$2,400.00
SKU LS-5560X-54F-EI
Quick Details:
Products Status:Stock
Ports:≥ 48
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex
Certification:RADIUS
Switch Capacity:598Gbps
Brand Name:H3C
Model Number:LS-5560X-54F-EI
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*360*43.6mm
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
|
Supporting features
|
S5560X-54F-EI
|
|
Exchange capacity
|
598Gbps/5.98Tbps
|
|
Packet forwarding rate
|
252Mpps/432Mpps
|
|
Dimensions (width x depth x height) (unit: mm)
|
440×360×43.6
|
|
Weight
|
≤6.7kg
|
|
Management network port
|
1
|
|
Management serial port
|
1个RJ-45 Console口，1个Micro USB Console口
(Cannot work at the same time, Micro USB has priority) |
|
Front panel service
port description |
48 SFP ports, 4 10 Gigabit SFP + ports
|
|
Expansion slot
|
1
|
|
Expansion board
|
2-port 40GE QSFP + interface board
2-port 10 Gigabit SFP + interface board 2-port 10 Gigabit electrical interface board 8-port 10 Gigabit SFP + interface board 12-port 10 Gigabit SFP + interface board * 2-port 25G SFP28 Ethernet optical interface module 8-port 1 / 2.5 / 5 / 10G BASE-T Ethernet electrical interface module 8-port 1 / 2.5 / 5G BASE-T Ethernet electrical interface module |
|
SDN/Openflow
|
Supports OpenFlow 1.3 standard
Support multiple controllers (EQUAL mode, active / standby mode) Support multi-table pipeline Support Group table Support Meter |
|
VXLAN
|
Support VXLAN Layer 2 switching
Support VXLAN routing exchange Support VXLAN gateway VxLAN centralized control plane supporting OpenFlow + Netconf |
|
Port aggregation
|
Support GE port aggregation
Support 10GE port aggregation Support 40G aggregation Support for static aggregation Supports dynamic aggregation Support cross-device aggregation |
|
Port characteristics
|
Support IEEE802.3x flow control (full duplex)
Support storm suppression based on port rate percentage Support PPS-based storm suppression Supports bps-based storm suppression |
|
Jumbo Frame
|
Supports maximum frame length of 10000
|
|
MAC address table
|
Support black hole MAC address
Support setting the maximum number of port MAC address learning |
|
VLAN
|
Support port-based VLAN
Support MAC-based VLAN Protocol-based VLAN IP subnet-based VLAN Support QinQ, selective QinQ Support VLAN Mapping Support Voice VLAN Support MVRP |
|
Layer 2 ring
network protocol |
Support STP / RSTP / MSTP
Support SmartLink Support RRPP, ERPS |
|
DHCP
|
DHCP Client
DHCP Snooping DHCP Relay DHCP Server DHCP Snooping option82/DHCP Relay option82 |
|
IRF2 Intelligent
Resilient Architecture |
Support IRF2 intelligent elastic architecture
Support distributed device management, distributed link aggregation, distributed elastic routing Supports stacking through standard Ethernet interfaces, etc. Support local stacking and remote stacking Stack up to 9 |
|
IP routing
|
Support static routing
Support RIPv1 / v2, RIPng Support OSPFv1 / v2, OSPFv3 Supports BGP4, BGP4 + for IPv6 Support IS-IS, IS-IS V6 Supports equal-cost routing, policy routing Support VRRP / VRRPv3 |
|
IPv6
|
Supports ND (Neighbor Discovery)
Support PMTU Supports IPv6-Ping, IPv6-Tracert, IPv6-Telnet, IPv6-TFTP Support manual tunnel configuration Support 6to4 tunnel Support ISATAP tunnel Support GRE tunnel |
|
Multicast
|
Support IGMP Snooping v1 / v2 / v3, MLD Snooping v1 / v2
Support PIM Snooping Support MLD Proxy Supports multicast VLAN Support IGMP v1 / v2 / v3, MLD v1 / v2 * Support PIM-DM, PIM-SM, PIM-SSM Supports MSDP, MSDP for IPv6 * Support MBGP, MBGP for IPv6 |
|
MPLS*
|
Support MPLS
Support MCE Support MPLS VPN, VPLS Support MPLS TE |
|
Mirror
|
Supports flow mirroring
Support N: 4 port mirroring Supports local and remote port mirroring |
|
Supports ACL \ QoS
|
Supports L2 (Layer 2) ~ L4 (Layer 4) packet filtering functions, providing source MAC address, destination MAC address, source IP
(IPv4 / IPv6) address, destination IP (IPv4 / IPv6) address, TCP / UDP port number, VLAN traffic classification Support Time Range ACL Supports inbound and outbound bidirectional ACL policies Support VLAN-based ACL Supports limiting the rate at which a port receives and sends packets, with a minimum granularity of 8Kbps Support message redirection Supports 802.1p and DSCP priority remarking of packets Support CAR (Committed Access Rate) function Support flexible queue scheduling algorithm, can be set based on port and queue at the same time, support SP, WRR, SP + WRR three modes Support WRED |
|
Safety features
|
Support user hierarchical management and password protection
Support 802.1X authentication / centralized MAC address authentication Guest VLAN support Support RADIUS authentication Supports SSH 2.0 Support port isolation Support port security Support EAD Support DHCP Snooping, prevent spoofed DHCP server Supports dynamic ARP detection to prevent man-in-the-middle attacks and ARP denial of service Support BPDU guard, Root guard Support uRPF (Unicast Reverse Path Detection) to prevent IP source address spoofing and prevent viruses and attacks Support IP / Port / MAC binding function Support plaintext and MD5 ciphertext authentication of OSPF, RIPv2 messages Support PKI (Public Key Infrastructure) |
|
Management and
maintenance |
Support XModem / FTP / TFTP loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration Support SNMPv1 / v2 / v3, WEB network management Support RMON (Remote Monitoring) alarm, event, history Support iMC Intelligent Management Center Support system log, hierarchical alarm, and debugging information output Support NTP Support power alarm function, fan, temperature alarm Support Ping, Tracert Support VCT (Virtual Cable Test) cable detection function Support DLDP (Device Link Detection Protocol) unidirectional link detection protocol Support LLDP Support Loopback-detection port loopback detection |
|
Green technology
|
Auto Power Down Function
Port scheduled down function (Schedule job) Support EEE (802.3az) energy-saving standards |
|
Input voltage
|
Non-PoE input power:
AC: Rated voltage range: 100V ～ 240V AC, 50 / 60Hz DC: Input rated voltage range -48V ～ -60V DC PoE input power: 360W AC: 100V ~ 240V, 50Hz ~ 60Hz 720W AC: 100V ~ 240V, 50Hz ~ 60Hz 1110W AC: 115V ~ 240V, 50Hz ~ 60Hz 560W DC: -48V ～ -60V DC |
|
Power consumption
(static) |
Single
AC:30W DC:30W Dual DC:37W AC:36W |
|
Power consumption
(at full load) |
Single AC:130W
Single DC:132W Dual AC:134W Dual DC:140W |
|
Working temperature
|
-5℃～45℃
|
|
Relative humidity
(Non-condensing) |
5%～95%
|
