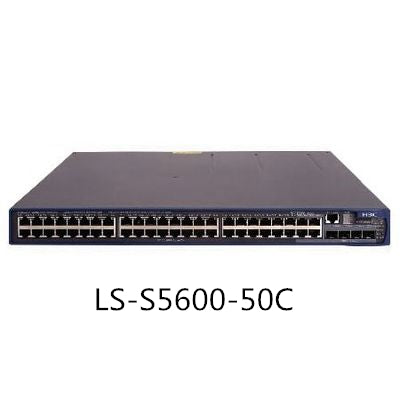

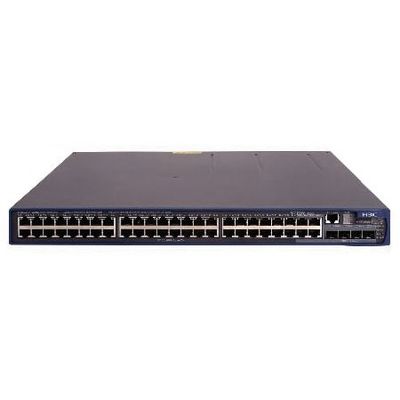

LS-S5600-50C Ethernet switch 48 port full Gigabit 4SFP Gigabit optical port Layer 3 core network switch
$1,955.00
SKU LS-S5600-50C
Quick Details:
Products Status:Stock
Ports:≥ 48
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex
Certification:IEEE 802.1X
Switch Capacity:240Gbit/s
Brand Name:H3C
Model Number:LS-S5600-50C
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*420*43.6
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
|
Characteristic
|
S5600-26C/ S5600-26C-PWR
|
S5600-26F
|
S5600-50C/S5600-50C-PWR
|
||
|
Wire-speed Layer 2 / Layer 3 switching
|
All ports support wire-speed forwarding
Switching capacity is 192Gbit / s Packet forwarding rate: 66Mpps |
All ports support wire-speed forwarding
Switching capacity is 192Gbit / s Packet forwarding rate: 66Mpps |
All ports support wire-speed forwarding
Switching capacity 240Gbit / s packet forwarding rate 102Mpps |
||
|
Management port
|
1 Console port
|
||||
|
Service port description
|
Fixed port
|
24 10/100 / 1000Base-T Ethernet ports + 4 multiplexed 1000Base-X Gigabit SFP ports
|
24 1000Base-X Gigabit SFP ports + 4 10/100 / 1000Base-T Ethernet ports
|
48 10/100 / 1000Base-T Ethernet ports + 4 multiplexed 1000Base-X Gigabit SFP ports
|
|
|
Optional module
|
8-port SFP module
1-port 10GE module 2-port 10GE module |
||||
|
Optional power
|
Power module
|
PSL130-AD (130W system output power module) AC input or DC input
PSL480-AD24P (180W system + 300W POE output power module) AC input or DC input |
PSL130-AD (130W system output power module) AC input or DC input
|
PSL180-AD (180W system output power module) AC input or DC input
PSL480-AD48P (180W system + 300W POE output power module) AC input or DC input |
|
|
Input voltage
|
AC:
Rated voltage range: 100 ～ 240V; 50 / 60Hz Maximum voltage range: 90 ～ 264V; 50 / 60Hz |
||||
|
DC:
Rated voltage range: -48 ～ -60V Maximum voltage range: -36 to -72V |
|||||
|
DC input of PSL480-AD48P power module:
Rated voltage: 53.5V Maximum voltage range: --52 ～ -55V |
|||||
|
Redundant power supply
|
Support redundant power input
|
||||
|
Dimensions (mm)
Width × depth × height |
440×420×43.6
|
||||
|
Weight
|
<7.5KG
|
<8KG
|
|||
|
Power consumption (at full load)
|
S5600-26C: 170 W
S5600-50C: 230 W S5600-26F: 170 W S5600-26C-PWR: 540 W (DC input) Host power consumption: 170W POE output power: 370W S5600-26C-PWR: 560 W (AC input) Host power consumption: 190W POE output power: 370W S5600-50C-PWR: 970 W (DC input) Host power consumption: 230W POE output power: 740W S5600-50C-PWR: 640 W (AC input) Host power consumption: 270W POE output power: 370W |
||||
|
Working temperature
|
0～45℃
|
||||
|
Relative humidity in the working environment (non-condensing)
|
10%～95%
|
||||
|
Exchange mode
|
Store and forward mode (Store and Forward)
|
||||
|
Port characteristics
|
Support IEEE 802.3x flow control (full duplex)
Support broadcast storm suppression based on port rate percentage Support pps-based broadcast storm suppression |
||||
|
Port aggregation
|
Support LACP
Support manual aggregation Up to 32 port aggregation groups |
||||
|
MAC address table
|
Support 16K MAC
Support black hole MAC Support setting the maximum number of port MAC address learning |
||||
|
VLAN
|
Support port-based VLAN (4K)
Supports protocol-based VLAN Support Voice VLAN Support VLAN Mapping Support VLAN VPN (QinQ), flexible QinQ |
||||
|
DHCP
|
Support DHCP Snooping
Supports DHCP Relay / Client / Server Supports DHCP Snooping Option82 / DHCP Relay Option82 |
||||
|
IP routing
|
Support static routing
Support RIPv1 / 2, OSPF, BGP Support ECMP Support VRRP |
||||
|
Multicast
|
Support IGMP Snooping
Supports multicast VLAN Support IGMP V1 / V2 Support PIM-SM / PIM-DM / MSDP |
||||
|
Layer 2 ring network protocol
|
Support STP / RSTP / MSTP
Support Smart Link |
||||
|
Stacked
|
Support IRF stacking technology
Supports up to 8 units |
||||
|
Mirror
|
Support N: 1 port mirroring
Supports flow mirroring Supports RSPAN (Remote Port Mirroring) |
||||
|
QoS/ACL
|
Support ACL
|
Supports L2 (Layer 2) to L4 (Layer 4) packet filtering functions, providing filtering based on source MAC address, destination MAC
address, source IP address, destination IP address, TCP / UDP port number, protocol type, VLAN, and illegal frame filtering Support ACL based on Time Range |
|||
|
Supports QoS
|
Supports limiting the rate at which a port receives and sends packets
Support message redirection Support CAR function Support 8 port output queues Support port queue scheduling (SP, WRR, SP + WRR) 802.1p / DSCP priority remarking of packets Supports QoS Profile management, allowing users to customize QoS service solutions |
||||
|
Safety features
|
User hierarchical management and password protection
Support IEEE 802.1X authentication Support centralized MAC address authentication Support ARP intrusion detection Support IP source address protection Support SSH2.0 Support port isolation |
||||
|
Management and maintenance
|
Support XModem / FTP / TFTP loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration Support SNMP v1 / v2 / v3, WEB network management Support RMON (Remote Monitoring) 1, 2, 3, 9 MIBs Support iMC Intelligent Management Center Support system log, hierarchical alarm, and debugging information output Support PING, Traceroute, Multicast Traceroute Support Telnet remote maintenance Support VCT virtual link detection Support DLDP single link detection Support port loopback detection |
||||
