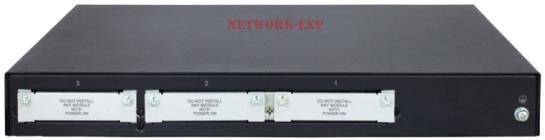

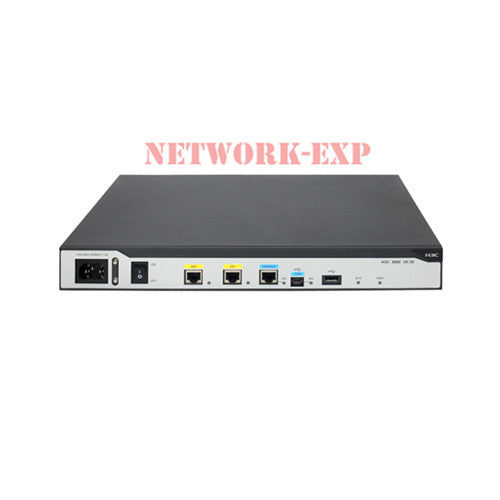

RT-MSR2630 Ethernet Router
RT-MSR2630 Ethernet Router
Couldn't load pickup availability
ProductFeature
- Advanced technology support
- Powerful security
- Granular control
- Intelligent network management
- High reliability
- Green design
[qiege]
Click here to jump to Amazon to buy
Click here to jump to EBAY to buy
Product overview
As cloud computing applications are being widely adopted, the Wide Area Network (WAN) undergoes major changes to cope with these changes. Users are demanding more than they have traditionally expected from their routers. Faced with new challenges and opportunities, H3C has developed the MSR26/36/56 multi-service router based on its decade-long in-depth understanding of enterprise and carrier networks, as well as more than a decade’s insight and technical accumulation. MSR 26/36 can serve as access router for governments and financial institutions or core router for small size enterprise. The MSR56 can serve as a core router for small-medium sized enterprises, a gateway router for government branches or enterprises, or a service gateway for enterprise network VPNs, NAT or IPSec services. Along with other H3C network equipment, it provides a comprehensive network solution to users in multiple industries from government to financial institutions, hotels, enterprises and educational institutions.
Click here to download the data table.
MSR26/36 series hardware specifications
|
Item |
MSR26-30 |
MSR36-10 |
MSR36-20 |
MSR36-40 |
MSR36-60 |
|
IPv4 Forwarding performance |
1.5Mpps |
5Mpps |
5Mpps |
6Mpps |
9Mpps |
|
IPv6 Forwarding performance |
1Mpps |
4Mpps |
4Mpps |
5Mpps |
7.5Mpps |
|
Forwarding performance in service (IMIX) |
800Mbps |
1.5Gbps |
1.5Gbps |
2Gbps |
3Gbps |
|
USB2.0 |
1, 3G Modemcompatible |
2, 3G Modemcompatible |
2, 3G Modemcompatible |
2, 3G Modemcompatible |
2, 3G Modemcompatible |
|
CON(Mini-USB Type AB) |
1 |
1 |
1 |
1 |
1 |
|
CON/ AUX |
1 |
1 |
1 |
1 |
1 |
|
Fixed GE port |
2 |
3(1Combo) |
3(1Combo) |
3(2Combo) |
3(2Combo) |
|
SIC slot |
3 |
2 |
4 |
4 |
4 |
|
DSIC slot |
1 |
－ |
2 |
2 |
2 |
|
HMIM slot |
- |
1 |
2 |
4 |
6 |
|
DHMIM slot |
- |
- |
- |
- |
1 |
|
VPM |
- |
－ |
1 |
2 |
2 |
|
Maximum power usage |
54W |
100W |
125W |
300W |
300W |
|
Redundant power supply |
- |
RPS800 |
RPS800 |
Internal configuration (AC/DC/PoE) |
Internal configuration (AC/DC/PoE) |
|
Power supply |
AC: 100V a.c.～240V a.c.；50Hz/60Hz |
AC: 100V a.c.～240V a.c.；50Hz/60Hz DC:-48～-60V |
AC: 100V a.c.～240V a.c.；50Hz/60Hz DC:-48～-60V |
AC/PoE: 100V a.c.～240V a.c.；50Hz/60Hz DC:-48～-60V |
AC/PoE: 100V a.c.～240V a.c.；50Hz/60Hz DC:-48～-60V |
|
Rack height (U Height) |
1 rack height (1RU) |
1 rack height (1RU) |
1 rack height (1RU) |
2 rack height (2RU) |
3 rack height (3RU) |
|
Dimensions (W×D×H) |
360×300×44.2mm |
440×480×44.2mm |
440×480×44.2mm |
440×480×88.1mm |
440×480×130.5mm |
|
Operating temperature |
0~45℃ |
||||
|
Operatinghumidity |
5~95% (non-condensing) |
||||
|
EMC |
FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 ETSI EN 300 386 EN 301 489-1 EN 301 489-17 |
||||
|
Security |
UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB 4943 |
||||
MSR56 series hardware specifications
|
Item |
MSR56-60 |
MSR56-80 |
|
IPv4 Forwarding performance |
12Mpps~40Mpps |
12Mpps~40Mpps |
|
IPv6 Forwarding performance |
10Mpps~30Mpps |
10Mpps~30Mpps |
|
Forwarding performance in service (IMIX) |
3Gbps~12Gbps |
3Gbps~12Gbps |
|
USB2.0 |
2, 3G Modem compatible |
2, 3G Modem compatible |
|
CON |
1 |
1 |
|
AUX |
1 |
1 |
|
CON (Mini-USB Type AB) |
1 |
1 |
|
HMIM slot |
6 |
8 |
|
DHMIM slot |
1 |
2 |
|
VPM |
2 |
2 |
|
Maximum power usage |
300W |
600W |
|
Redundant power supply |
Internal configuration (AC/DC/PoE) , N+1 backup |
Internal configuration (AC/DC/PoE), N+1 backup |
|
Power supply |
AC/PoE: 100V a.c.~240V a.c.; 50Hz/60Hz DC: -48~-60V |
AC/PoE: 100V a.c.~240V a.c.; 50Hz/60Hz DC: -48~-60V |
|
Rack height (U Height) |
4 rack height (4RU) |
5 rack height (5RU) |
|
Dimensions (W×D×H) |
440×480×175.1mm |
440×480×219.5mm |
|
EMC |
FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 ETSI EN 300 386 EN 301 489-1 EN 301 489-17 |
|
|
Security |
UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB 4943 |
|
MSR26/36/56 series software specifications
|
Item |
Function |
|
Layer 2 protocol |
Supports Ethernet, Ethernet II, VLAN (VLAN-BASED PORT VLAN, VOICE VLAN, Guest VLAN) , 802.3x, 802.1p, 802.1Q, 802.1x, STP (802.1D) , RSTP (802.1w) , MSTP (802.1s), PPP, PPPoE Client, PPPoE Server, HDLC, DDR, Modem and ISDN |
|
IP services |
Supports unicast forwarding/multicast forwarding, TCP, UDP, IP Option, IP unnumbered, policy-based routing, Netstream and sFlow |
|
IP applications |
Supports Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DHCP Snooping, DNS client, DNS Proxy, DDNS, IP Accounting, UDP Helper, NTP and SNTP |
|
IPv4 routes |
Static routing Dynamic routing protocols: RIPv1/v2, OSPFv2, BGP, IS-IS Routing policies ECMP (Equal-Cost Multi-Path) Multicast routing protocol: IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP |
|
IPv6 |
Supports IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, IPv6 tunnels, 6PE, DS-LITE IPv6 tunnels technology: configured tunnels, auto-configured tunnels , GRE tunnels , 6to4, ISATAP Static routing Dynamic routing protocols: RIPng, OSPFv3, IS-ISv6, BGP4+ IPv6 Multicast protocols: MLD V1/V2, PIM-DM, PIM-SM |
|
QoS |
Supports LR, Port-Based Mirroring, Port Trust Mode and Port Priority Supports CAR (Committed Access Rate) Supports FIFO, WFQ and CBQ Supports GTS (Generic Traffic Shaping) Supports traffic classifications |
|
Voice |
Supports FXS/FXO/E&M/E1/T1, Supports R2, DSS1, Q.sig and Digital E&M Supports G.711, G.723, G.726, G.729AB, AMR-NB, GSM-FR, iLBC and RT-Audio Supports rich voice services, voice backup, DTMF transmission; supports RFC2833, intelligent dial router, FXS and FXO 1: 1 binding, power failure flee, SIP Sever local survival and IVR |
|
3G |
Supports TD-SCDMA, CDMA2000/EVDO and WCDMA/HSPA+ |
|
Security features |
PPPoE Client-Server, PORTAL, 802.1x Local authentication, RBAC, Radius, TACACS ASPF, ACL, FILTER, connection number restriction IKE, IPSec L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, GRE Supports ARP attack protection Supports EAD (Endpoint Admission Domination) |
|
MPLS |
Protocols: LDP, Static LSP L3VPN: cross-domain MPLS VPN (Option1/2/3), nesting MPLS VPN, hierarchical PE (HoPE), CE dual homing, MCE and multi-role host L2VPN: Martini, Kompella, CCC and SVC modes MPLS TE, RSVP TE |
|
Reliability |
Supports VRRP, VRRPv3 Supports load share and backup based on bandwidth Supports load share and backup based on user (IP address) Supports NQA aggregation with routing, VRRP and port backup and enable end-to-end link testing and backup functions Supports BFD fast link detection for control boards switchover |
|
Management and maintenance |
Supports SNMP V1/V2c/V3, MIB, SYSLOG, RMON Supports BiMS remote management solutions. Supports USB flash drive support Supports command line management, file system management, Dual Image Supports DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private and SNMP protocol testing Supports console login, telnet (VTY) login, SSH login and FTP login |
