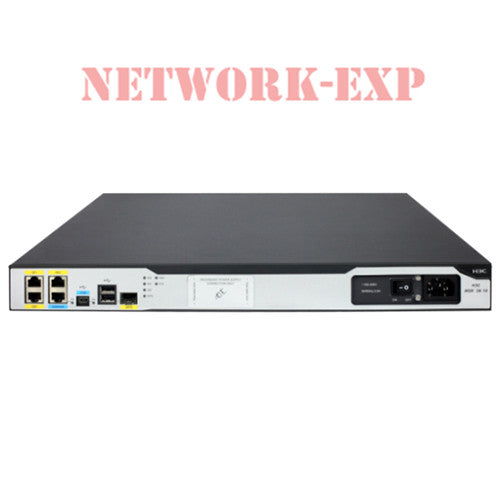

RT-MSR3610 Ethernet Router

Name: RT-MSR3610 Ethernet Router
Brand: Network Exp
Price: 594.0 USD
Availability: InStock

$594.00

SKU

ProductFeature

Advanced technology support
Powerful security
Granular control
Intelligent network management
High reliability
Green design

Quantity

Description
Reviews

Click here to jump to Amazon to buy

Click here to jump to EBAY to buy

Product overview

As cloud computing applications are being widely adopted, the Wide Area Network (WAN) undergoes major changes to cope with these changes. Users are demanding more than they have traditionally expected from their routers. Faced with new challenges and opportunities, H3C has developed the MSR26/36/56 multi-service router based on its decade-long in-depth understanding of enterprise and carrier networks, as well as more than a decade’s insight and technical accumulation. MSR 26/36 can serve as access router for governments and financial institutions or core router for small size enterprise. The MSR56 can serve as a core router for small-medium sized enterprises, a gateway router for government branches or enterprises, or a service gateway for enterprise network VPNs, NAT or IPSec services. Along with other H3C network equipment, it provides a comprehensive network solution to users in multiple industries from government to financial institutions, hotels, enterprises and educational institutions.

Click here to download the data table.

MSR26/36 series hardware specifications

Item	MSR26-30	MSR36-10	MSR36-20	MSR36-40	MSR36-60
IPv4 Forwarding performance	1.5Mpps	5Mpps	5Mpps	6Mpps	9Mpps
IPv6 Forwarding performance	1Mpps	4Mpps	4Mpps	5Mpps	7.5Mpps
Forwarding performance in service (IMIX)	800Mbps	1.5Gbps	1.5Gbps	2Gbps	3Gbps
USB2.0	1, 3G Modemcompatible	2, 3G Modemcompatible	2, 3G Modemcompatible	2, 3G Modemcompatible	2, 3G Modemcompatible
CON(Mini-USB Type AB)	1	1	1	1	1
CON/ AUX	1	1	1	1	1
Fixed GE port	2	3(1Combo)	3(1Combo)	3(2Combo)	3(2Combo)
SIC slot	3	2	4	4	4
DSIC slot	1	－	2	2	2
HMIM slot	-	1	2	4	6
DHMIM slot	-	-	-	-	1
VPM	-	－	1	2	2
Maximum power usage	54W	100W	125W	300W	300W
Redundant power supply	-	RPS800	RPS800	Internal configuration (AC/DC/PoE)	Internal configuration (AC/DC/PoE)
Power supply	AC: 100V a.c.～240V a.c.；50Hz/60Hz	AC: 100V a.c.～240V a.c.；50Hz/60Hz DC:-48～-60V	AC: 100V a.c.～240V a.c.；50Hz/60Hz DC:-48～-60V	AC/PoE: 100V a.c.～240V a.c.；50Hz/60Hz DC:-48～-60V	AC/PoE: 100V a.c.～240V a.c.；50Hz/60Hz DC:-48～-60V
Rack height (U Height)	1 rack height (1RU)	1 rack height (1RU)	1 rack height (1RU)	2 rack height (2RU)	3 rack height (3RU)
Dimensions (W×D×H)	360×300×44.2mm	440×480×44.2mm	440×480×44.2mm	440×480×88.1mm	440×480×130.5mm
Operating temperature	0~45℃
Operatinghumidity	5~95% (non-condensing)
EMC	FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 ETSI EN 300 386 EN 301 489-1 EN 301 489-17
Security	UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB 4943

MSR56 series hardware specifications

Item	MSR56-60	MSR56-80
IPv4 Forwarding performance	12Mpps~40Mpps	12Mpps~40Mpps
IPv6 Forwarding performance	10Mpps~30Mpps	10Mpps~30Mpps
Forwarding performance in service (IMIX)	3Gbps~12Gbps	3Gbps~12Gbps
USB2.0	2, 3G Modem compatible	2, 3G Modem compatible
CON	1	1
AUX	1	1
CON (Mini-USB Type AB)	1	1
HMIM slot	6	8
DHMIM slot	1	2
VPM	2	2
Maximum power usage	300W	600W
Redundant power supply	Internal configuration (AC/DC/PoE) , N+1 backup	Internal configuration (AC/DC/PoE), N+1 backup
Power supply	AC/PoE: 100V a.c.~240V a.c.; 50Hz/60Hz DC: -48~-60V	AC/PoE: 100V a.c.~240V a.c.; 50Hz/60Hz DC: -48~-60V
Rack height (U Height)	4 rack height (4RU)	5 rack height (5RU)
Dimensions (W×D×H)	440×480×175.1mm	440×480×219.5mm
EMC	FCC Part 15 (CFR 47) CLASS A ICES-003 CLASS A VCCI-3 CLASS A VCCI-4 CLASS A CISPR 22 CLASS A EN 55022 CLASS A AS/NZS CISPR22 CLASS A CISPR 24 EN 55024 EN 61000-3-2 EN 61000-3-3 EN 61000-6-1 ETSI EN 300 386 EN 301 489-1 EN 301 489-17
Security	UL 60950-1 CAN/CSA C22.2 No 60950-1 IEC 60950-1 EN 60950-1/A11 AS/NZS 60950 EN 60825-1 EN 60825-2 FDA 21 CFR Subchapter J GB 4943

MSR26/36/56 series software specifications

Item	Function
Layer 2 protocol	Supports Ethernet, Ethernet II, VLAN (VLAN-BASED PORT VLAN, VOICE VLAN, Guest VLAN) , 802.3x, 802.1p, 802.1Q, 802.1x, STP (802.1D) , RSTP (802.1w) , MSTP (802.1s), PPP, PPPoE Client, PPPoE Server, HDLC, DDR, Modem and ISDN
IP services	Supports unicast forwarding/multicast forwarding, TCP, UDP, IP Option, IP unnumbered, policy-based routing, Netstream and sFlow
IP applications	Supports Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DHCP Snooping, DNS client, DNS Proxy, DDNS, IP Accounting, UDP Helper, NTP and SNTP
IPv4 routes	Static routing Dynamic routing protocols: RIPv1/v2, OSPFv2, BGP, IS-IS Routing policies ECMP (Equal-Cost Multi-Path) Multicast routing protocol: IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP
IPv6	Supports IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, IPv6 tunnels, 6PE, DS-LITE IPv6 tunnels technology: configured tunnels, auto-configured tunnels , GRE tunnels , 6to4, ISATAP Static routing Dynamic routing protocols: RIPng, OSPFv3, IS-ISv6, BGP4+ IPv6 Multicast protocols: MLD V1/V2, PIM-DM, PIM-SM
QoS	Supports LR, Port-Based Mirroring, Port Trust Mode and Port Priority Supports CAR (Committed Access Rate) Supports FIFO, WFQ and CBQ Supports GTS (Generic Traffic Shaping) Supports traffic classifications
Voice	Supports FXS/FXO/E&M/E1/T1, Supports R2, DSS1, Q.sig and Digital E&M Supports G.711, G.723, G.726, G.729AB, AMR-NB, GSM-FR, iLBC and RT-Audio Supports rich voice services, voice backup, DTMF transmission; supports RFC2833, intelligent dial router, FXS and FXO 1: 1 binding, power failure flee, SIP Sever local survival and IVR
3G	Supports TD-SCDMA, CDMA2000/EVDO and WCDMA/HSPA+
Security features	PPPoE Client-Server, PORTAL, 802.1x Local authentication, RBAC, Radius, TACACS ASPF, ACL, FILTER, connection number restriction IKE, IPSec L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, GRE Supports ARP attack protection Supports EAD (Endpoint Admission Domination)
MPLS	Protocols: LDP, Static LSP L3VPN: cross-domain MPLS VPN (Option1/2/3), nesting MPLS VPN, hierarchical PE (HoPE), CE dual homing, MCE and multi-role host L2VPN: Martini, Kompella, CCC and SVC modes MPLS TE, RSVP TE
Reliability	Supports VRRP, VRRPv3 Supports load share and backup based on bandwidth Supports load share and backup based on user (IP address) Supports NQA aggregation with routing, VRRP and port backup and enable end-to-end link testing and backup functions Supports BFD fast link detection for control boards switchover
Management and maintenance	Supports SNMP V1/V2c/V3, MIB, SYSLOG, RMON Supports BiMS remote management solutions. Supports USB flash drive support Supports command line management, file system management, Dual Image Supports DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private and SNMP protocol testing Supports console login, telnet (VTY) login, SSH login and FTP login
