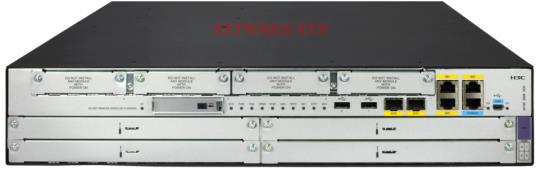

RT-MSR3640 Ethernet Router

Item

MSR26-30

MSR36-10

MSR36-20

MSR36-40

MSR36-60

IPv4 Forwarding performance

1.5Mpps

5Mpps

5Mpps

6Mpps

9Mpps

IPv6 Forwarding performance

1Mpps

4Mpps

4Mpps

5Mpps

7.5Mpps

Forwarding performance in service (IMIX)

800Mbps

1.5Gbps

1.5Gbps

2Gbps

3Gbps

USB2.0

1, 3G Modemcompatible

2, 3G Modemcompatible

2, 3G Modemcompatible

2, 3G Modemcompatible

2, 3G Modemcompatible

CON(Mini-USB Type AB)

1

1

1

1

1

CON/ AUX

1

1

1

1

1

Fixed GE port

2

3(1Combo)

3(1Combo)

3(2Combo)

3(2Combo)

SIC slot

3

2

4

4

4

DSIC slot

1

－

2

2

2

HMIM slot

-

1

2

4

6

DHMIM slot

-

-

-

-

1

VPM

-

－

1

2

2

Maximum power usage

54W

100W

125W

300W

300W

Redundant power supply

-

RPS800

RPS800

Internal configuration (AC/DC/PoE)

Internal configuration (AC/DC/PoE)

Power supply

AC:

100V a.c.～240V a.c.；50Hz/60Hz

AC:

100V a.c.～240V a.c.；50Hz/60Hz

DC:-48～-60V

AC:

100V a.c.～240V a.c.；50Hz/60Hz

DC:-48～-60V

AC/PoE:

100V a.c.～240V a.c.；50Hz/60Hz

DC:-48～-60V

AC/PoE:

100V a.c.～240V a.c.；50Hz/60Hz

DC:-48～-60V

Rack height  (U Height)

1 rack height (1RU)

1 rack height (1RU)

1 rack height (1RU)

2 rack height (2RU)

3 rack height (3RU)

Dimensions   (W×D×H)

360×300×44.2mm

440×480×44.2mm

440×480×44.2mm

440×480×88.1mm

440×480×130.5mm

Operating temperature

0~45℃

Operatinghumidity

5~95% (non-condensing)

EMC

FCC Part 15  (CFR 47)  CLASS A

ICES-003 CLASS A

VCCI-3 CLASS A

VCCI-4 CLASS A

CISPR 22 CLASS A

EN 55022 CLASS A

AS/NZS CISPR22 CLASS A

CISPR 24

EN 55024

EN 61000-3-2

EN 61000-3-3

EN 61000-6-1

ETSI EN 300 386

EN 301 489-1

EN 301 489-17

Security

UL 60950-1

CAN/CSA C22.2 No 60950-1

IEC 60950-1

EN 60950-1/A11

AS/NZS 60950

EN 60825-1

EN 60825-2

FDA 21 CFR Subchapter J

GB 4943

IPv6

Forwarding performance

10Mpps~30Mpps

10Mpps~30Mpps

Forwarding performance in service (IMIX)

3Gbps~12Gbps

3Gbps~12Gbps

USB2.0

2, 3G Modem compatible

2, 3G Modem compatible

CON

1

1

AUX

1

1

CON (Mini-USB Type AB)

1

1

HMIM slot

6

8

DHMIM slot

1

2

VPM

2

2

Maximum power usage

300W

600W

Redundant power supply

Internal configuration (AC/DC/PoE) , N+1 backup

Internal configuration (AC/DC/PoE), N+1 backup

Power supply

AC/PoE:

100V a.c.~240V a.c.; 50Hz/60Hz

DC:

-48~-60V

AC/PoE:

100V a.c.~240V a.c.; 50Hz/60Hz

DC:

-48~-60V

Rack height  (U Height)

4 rack height (4RU)

5 rack height (5RU)

Dimensions   (W×D×H)

440×480×175.1mm

440×480×219.5mm

EMC

FCC Part 15  (CFR 47)  CLASS A

ICES-003 CLASS A

VCCI-3 CLASS A

VCCI-4 CLASS A

CISPR 22 CLASS A

EN 55022 CLASS A

AS/NZS CISPR22 CLASS A

CISPR 24

EN 55024

EN 61000-3-2

EN 61000-3-3

EN 61000-6-1

ETSI EN 300 386

EN 301 489-1

EN 301 489-17

Security

UL 60950-1

CAN/CSA C22.2 No 60950-1

IEC 60950-1

EN 60950-1/A11

AS/NZS 60950

EN 60825-1

EN 60825-2

FDA 21 CFR Subchapter J

GB 4943

Layer 2 protocol

Supports Ethernet, Ethernet II, VLAN (VLAN-BASED PORT VLAN, VOICE VLAN, Guest VLAN) , 802.3x, 802.1p, 802.1Q, 802.1x, STP (802.1D) , RSTP (802.1w) , MSTP (802.1s), PPP, PPPoE Client, PPPoE Server, HDLC, DDR, Modem and ISDN

IP services

Supports unicast forwarding/multicast forwarding, TCP, UDP, IP Option, IP unnumbered, policy-based routing, Netstream and sFlow

IP applications

Supports Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DHCP Snooping, DNS client, DNS Proxy, DDNS, IP Accounting, UDP Helper, NTP and SNTP

IPv4 routes

Static routing

Dynamic routing protocols:  RIPv1/v2, OSPFv2, BGP, IS-IS

Routing policies

ECMP (Equal-Cost Multi-Path)

Multicast routing protocol:  IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP

IPv6

Supports IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, IPv6 tunnels, 6PE, DS-LITE

IPv6 tunnels technology:  configured tunnels, auto-configured tunnels , GRE tunnels , 6to4, ISATAP

Static routing

Dynamic routing protocols:  RIPng, OSPFv3, IS-ISv6, BGP4+

IPv6 Multicast protocols:  MLD V1/V2, PIM-DM, PIM-SM

QoS

Supports LR, Port-Based Mirroring, Port Trust Mode and Port Priority

Supports CAR (Committed Access Rate)

Supports FIFO, WFQ and CBQ

Supports GTS (Generic Traffic Shaping)

Supports traffic classifications

Voice

Supports FXS/FXO/E&M/E1/T1, Supports R2, DSS1, Q.sig and Digital E&M

Supports G.711, G.723, G.726, G.729AB, AMR-NB, GSM-FR, iLBC and RT-Audio

Supports rich voice services, voice backup, DTMF transmission; supports RFC2833, intelligent dial router, FXS and FXO 1: 1 binding, power failure flee, SIP Sever local survival and IVR

3G

Supports TD-SCDMA, CDMA2000/EVDO and WCDMA/HSPA+

Security features

PPPoE Client-Server, PORTAL, 802.1x

Local authentication, RBAC, Radius, TACACS

ASPF, ACL, FILTER, connection number restriction

IKE, IPSec

L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, GRE

Supports ARP attack protection

Supports EAD (Endpoint Admission Domination)

MPLS

Protocols: LDP, Static LSP

L3VPN: cross-domain MPLS VPN (Option1/2/3), nesting MPLS VPN, hierarchical PE (HoPE), CE dual homing, MCE and multi-role host

L2VPN: Martini, Kompella, CCC and SVC modes

MPLS TE, RSVP TE

Reliability

Supports VRRP, VRRPv3

Supports load share and backup based on bandwidth

Supports load share and backup based on user (IP address)

Supports NQA aggregation with routing, VRRP and port backup and enable end-to-end link testing and backup functions

Supports BFD fast link detection for control boards switchover

Management and maintenance

Supports SNMP V1/V2c/V3, MIB, SYSLOG, RMON

Supports BiMS remote management solutions. Supports USB flash drive support

Supports command line management, file system management, Dual Image

Supports DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private and SNMP protocol testing

Supports console login, telnet (VTY) login, SSH login and FTP login
