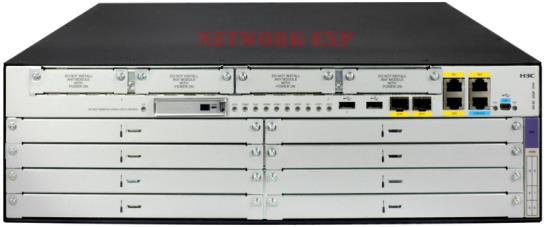

RT-MSR3660 Ethernet Router

$2,240.00
SKU

ProductFeature

  • Advanced technology support
  • Powerful security
  • Granular control
  • Intelligent network management
  • High reliability
  • Green design

  • Description
  • Reviews
  • Click here to jump to Amazon to buy

    Click here to jump to EBAY to buy

    Product overview

    As cloud computing applications are being widely adopted, the Wide Area Network (WAN) undergoes major changes to cope with these changes. Users are demanding more than they have traditionally expected from their routers. Faced with new challenges and opportunities, H3C has developed the MSR26/36/56 multi-service router based on its decade-long in-depth understanding of enterprise and carrier networks, as well as more than a decade’s insight and technical accumulation. MSR 26/36 can serve as access router for governments and financial institutions or core router for small size enterprise. The MSR56 can serve as a core router for small-medium sized enterprises, a gateway router for government branches or enterprises, or a service gateway for enterprise network VPNs, NAT or IPSec services. Along with other H3C network equipment, it provides a comprehensive network solution to users in multiple industries from government to financial institutions, hotels, enterprises and educational institutions.

    Click here to download the data table.



    MSR26/36 series hardware specifications

    Item

    MSR26-30

    MSR36-10

    MSR36-20

    MSR36-40

    MSR36-60

    IPv4 Forwarding performance

    1.5Mpps

    5Mpps

    5Mpps

    6Mpps

    9Mpps

    IPv6 Forwarding performance

    1Mpps

    4Mpps

    4Mpps

    5Mpps

    7.5Mpps

    Forwarding performance in service (IMIX)

    800Mbps

    1.5Gbps

    1.5Gbps

    2Gbps

    3Gbps

    USB2.0

    1, 3G Modemcompatible

    2, 3G Modemcompatible

    2, 3G Modemcompatible

    2, 3G Modemcompatible

    2, 3G Modemcompatible

    CON(Mini-USB Type AB)

    1

    1

    1

    1

    1

    CON/ AUX

    1

    1

    1

    1

    1

    Fixed GE port

    2

    3(1Combo)

    3(1Combo)

    3(2Combo)

    3(2Combo)

    SIC slot

    3

    2

    4

    4

    4

    DSIC slot

    1

    2

    2

    2

    HMIM slot

    -

    1

    2

    4

    6

    DHMIM slot

    -

    -

    -

    -

    1

    VPM

    -

    1

    2

    2

    Maximum power usage

    54W

    100W

    125W

    300W

    300W

    Redundant power supply

    -

    RPS800

    RPS800

    Internal configuration (AC/DC/PoE)

    Internal configuration (AC/DC/PoE)

    Power supply

    AC:

    100V a.c.~240V a.c.;50Hz/60Hz

    AC:

    100V a.c.~240V a.c.;50Hz/60Hz

    DC:-48~-60V

    AC:

    100V a.c.~240V a.c.;50Hz/60Hz

    DC:-48~-60V

    AC/PoE:

    100V a.c.~240V a.c.;50Hz/60Hz

    DC:-48~-60V

    AC/PoE:

    100V a.c.~240V a.c.;50Hz/60Hz

    DC:-48~-60V

    Rack height  (U Height)

    1 rack height (1RU)

    1 rack height (1RU)

    1 rack height (1RU)

    2 rack height (2RU)

    3 rack height (3RU)

    Dimensions   (W×D×H)

    360×300×44.2mm

    440×480×44.2mm

    440×480×44.2mm

    440×480×88.1mm

    440×480×130.5mm

    Operating temperature

    0~45℃

    Operatinghumidity

    5~95% (non-condensing)

    EMC

    FCC Part 15  (CFR 47)  CLASS A

    ICES-003 CLASS A

    VCCI-3 CLASS A

    VCCI-4 CLASS A

    CISPR 22 CLASS A

    EN 55022 CLASS A

    AS/NZS CISPR22 CLASS A

    CISPR 24

    EN 55024

    EN 61000-3-2

    EN 61000-3-3

    EN 61000-6-1

    ETSI EN 300 386

    EN 301 489-1

    EN 301 489-17

    Security

    UL 60950-1

    CAN/CSA C22.2 No 60950-1

    IEC 60950-1

    EN 60950-1/A11

    AS/NZS 60950

    EN 60825-1

    EN 60825-2

    FDA 21 CFR Subchapter J

    GB 4943

    MSR56 series hardware specifications

    Item

    MSR56-60

    MSR56-80

    IPv4

    Forwarding performance

    12Mpps~40Mpps

    12Mpps~40Mpps

    IPv6

    Forwarding performance

    10Mpps~30Mpps

    10Mpps~30Mpps

    Forwarding performance in service (IMIX)

    3Gbps~12Gbps

    3Gbps~12Gbps

    USB2.0

    2, 3G Modem compatible

    2, 3G Modem compatible

    CON

    1

    1

    AUX

    1

    1

    CON (Mini-USB Type AB)

    1

    1

    HMIM slot

    6

    8

    DHMIM slot

    1

    2

    VPM

    2

    2

    Maximum power usage

    300W

    600W

    Redundant power supply

    Internal configuration (AC/DC/PoE) , N+1 backup

    Internal configuration (AC/DC/PoE), N+1 backup

    Power supply

    AC/PoE:

    100V a.c.~240V a.c.; 50Hz/60Hz

    DC:

    -48~-60V

    AC/PoE:

    100V a.c.~240V a.c.; 50Hz/60Hz

    DC:

    -48~-60V

    Rack height  (U Height)

    4 rack height (4RU)

    5 rack height (5RU)

    Dimensions   (W×D×H)

    440×480×175.1mm

    440×480×219.5mm

    EMC

    FCC Part 15  (CFR 47)  CLASS A

    ICES-003 CLASS A

    VCCI-3 CLASS A

    VCCI-4 CLASS A

    CISPR 22 CLASS A

    EN 55022 CLASS A

    AS/NZS CISPR22 CLASS A

    CISPR 24

    EN 55024

    EN 61000-3-2

    EN 61000-3-3

    EN 61000-6-1

    ETSI EN 300 386

    EN 301 489-1

    EN 301 489-17

    Security

    UL 60950-1

    CAN/CSA C22.2 No 60950-1

    IEC 60950-1

    EN 60950-1/A11

    AS/NZS 60950

    EN 60825-1

    EN 60825-2

    FDA 21 CFR Subchapter J

    GB 4943

    MSR26/36/56 series software specifications

    Item

    Function

    Layer 2 protocol

    Supports Ethernet, Ethernet II, VLAN (VLAN-BASED PORT VLAN, VOICE VLAN, Guest VLAN) , 802.3x, 802.1p, 802.1Q, 802.1x, STP (802.1D) , RSTP (802.1w) , MSTP (802.1s), PPP, PPPoE Client, PPPoE Server, HDLC, DDR, Modem and ISDN

    IP services

    Supports unicast forwarding/multicast forwarding, TCP, UDP, IP Option, IP unnumbered, policy-based routing, Netstream and sFlow

    IP applications

    Supports Ping, Trace, ICMP, DHCP Server, DHCP Relay, DHCP Client, DHCP Snooping, DNS client, DNS Proxy, DDNS, IP Accounting, UDP Helper, NTP and SNTP

    IPv4 routes

    Static routing

    Dynamic routing protocols:  RIPv1/v2, OSPFv2, BGP, IS-IS

    Routing policies

    ECMP (Equal-Cost Multi-Path)

    Multicast routing protocol:  IGMPV1/V2/V3, PIM-DM, PIM-SM, MBGP, MSDP

    IPv6

    Supports IPv6 ND, IPv6 PMTU, IPv6 FIB, IPv6 ACL, NAT-PT, IPv6 tunnels, 6PE, DS-LITE

    IPv6 tunnels technology:  configured tunnels, auto-configured tunnels , GRE tunnels , 6to4, ISATAP

    Static routing

    Dynamic routing protocols:  RIPng, OSPFv3, IS-ISv6, BGP4+

    IPv6 Multicast protocols:  MLD V1/V2, PIM-DM, PIM-SM

    QoS

    Supports LR, Port-Based Mirroring, Port Trust Mode and Port Priority

    Supports CAR (Committed Access Rate)

    Supports FIFO, WFQ and CBQ

    Supports GTS (Generic Traffic Shaping)

    Supports traffic classifications

    Voice

    Supports FXS/FXO/E&M/E1/T1, Supports R2, DSS1, Q.sig and Digital E&M

    Supports G.711, G.723, G.726, G.729AB, AMR-NB, GSM-FR, iLBC and RT-Audio

    Supports rich voice services, voice backup, DTMF transmission; supports RFC2833, intelligent dial router, FXS and FXO 1: 1 binding, power failure flee, SIP Sever local survival and IVR

    3G

    Supports TD-SCDMA, CDMA2000/EVDO and WCDMA/HSPA+

    Security features

    PPPoE Client-Server, PORTAL, 802.1x

    Local authentication, RBAC, Radius, TACACS

    ASPF, ACL, FILTER, connection number restriction

    IKE, IPSec

    L2TP, NAT/NAPT, PKI, RSA, SSH v1.5/2.0, URPF, GRE

    Supports ARP attack protection

    Supports EAD (Endpoint Admission Domination)

    MPLS

    Protocols: LDP, Static LSP

    L3VPN: cross-domain MPLS VPN (Option1/2/3), nesting MPLS VPN, hierarchical PE (HoPE), CE dual homing, MCE and multi-role host

    L2VPN: Martini, Kompella, CCC and SVC modes

    MPLS TE, RSVP TE

    Reliability

    Supports VRRP, VRRPv3

    Supports load share and backup based on bandwidth

    Supports load share and backup based on user (IP address)

    Supports NQA aggregation with routing, VRRP and port backup and enable end-to-end link testing and backup functions

    Supports BFD fast link detection for control boards switchover

    Management and maintenance

    Supports SNMP V1/V2c/V3, MIB, SYSLOG, RMON

    Supports BiMS remote management solutions. Supports USB flash drive support

    Supports command line management, file system management, Dual Image

    Supports DHCP, FTP, HTTP, ICMP, UDP public, UDP private, TCP public, TCP private and SNMP protocol testing

    Supports console login, telnet (VTY) login, SSH login and FTP login
