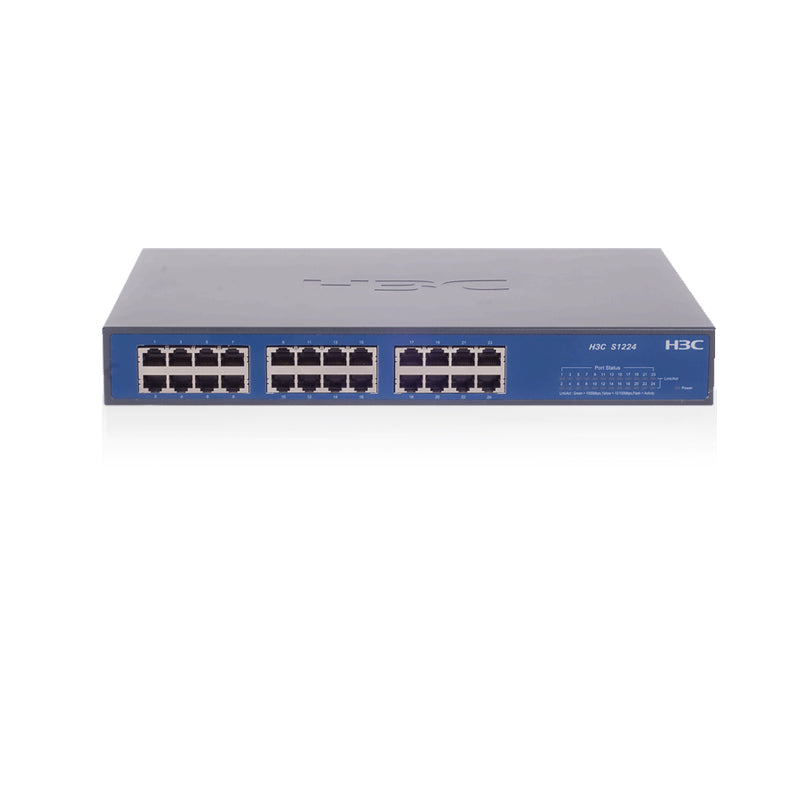

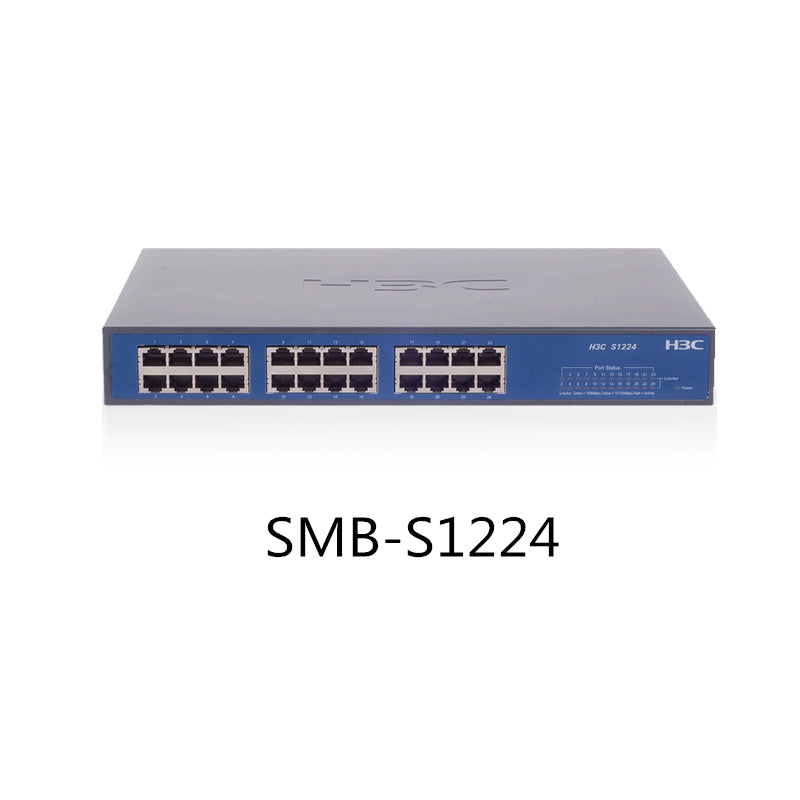

S1224 24-port Full Gigabit Ethernet Switch Enterprise-class Unmanaged Unmanaged Network Switch


Quick Details:

Products Status:Stock


Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:Full-Duplex & Half-Duplex


Switch Capacity:48Gbps

Brand Name:H3C

Model Number:SMB-S1224

Place of Origin:Guangdong, China


Dimensions (W x D x H):330*230*44mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :


1 - 1


Est. Time(days)


To be negotiated

Product Description:

IEEE802.3 10BASE-T Ethernet
IEEE802.3u 100BASE-TX Fast Ethernet
IEEE802.3ab 1000Base-T Gigabit Ethernet
ANSI / IEEE 802.3 NWay auto-negotiation
IEEE802.3x flow control
Fixed port
24 10/100 / 1000M adaptive Ethernet ports
Fixed port attributes
Connector type: RJ-45
Support 10/100 / 1000Mbit / s transmission rate
Supports half-duplex, full-duplex, auto-negotiation working modes
Support MDI / MDIX adaptive
Network cable type
10 / 100Base-TX:
3/4/5 category twisted pair cable, support a maximum transmission distance of 100m
Category 5 twisted pair cable, supporting a maximum transmission distance of 100m
Indicator light
Per port: Link / Act
Per device: Power
Backplane switching capacity
Port switching capacity
Forwarding ability
Packet cache
Exchange mode
Store and forward mode
MAC address table
Supports automatic address learning and aging (aging time is 300 seconds)
Support MAC (Medium Access Control) address: 8K
Dimensions (length × width × height)
Input voltage
100-240V AC
Lightning protection
Common mode protection 7KV, lightning protection level 4
Power consumption
20 W
Operating temperature
Working humidity

* Comply with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX, IEEE802.3x and IEEE802.3ab 1000Base-T standards

* Full-wire-speed Layer 2 Gigabit switching capability, ensuring that all ports are forwarded without blocking

* 24 10 / 100M / 1000M adaptive RJ45 ports

* Support MDI / MDIX adaptive function

* Use store-and-forward switching mechanism

* Built-in universal power supply, 1U iron case, 13-inch chassis, industrial design, can be mounted on standard rack by mounting mounting ears

* Adopting shared cache architecture, the available buffer space of each port is expanded several times, which can greatly enhance the forwarding performance of sudden large traffic

* Integrated professional lightning protection circuit, can provide professional protection of lightning protection level 4 (common mode protection 7KV);

Packing & Delivery:

1. DHL / UPS / FedEx / TNT , Door-to-Door.

2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We will choose the best and safe packaging material to make sure your orders won't be
damaged during delivery.

Company Profie:

TFC is one-stop supplier for quality new, used and refurbished IT hardware. NMI buys, sells, leases, rents, consigns and trades
just about every product line including Sun, HP, IBM, Dell,Lenovo, storage equipment as NetApp and EMC, telecom equipment as
H3C,HUAWEI,CISCO,Juniper etc...

Our Certificates:


Q1:What's your main product?
TFC mainly produce networking equipment, server , storage equipment etc.

Q2:What's your payment term?
Usually L/C,T/T,D/P,D/A ,it is determined by our negotiation.

Q3:Can you customize product?
Yes, TFC can supply you products according to your requirement .

Q4:What is the MOQ and Leading?
Usually 30~50 working days for delivery.
