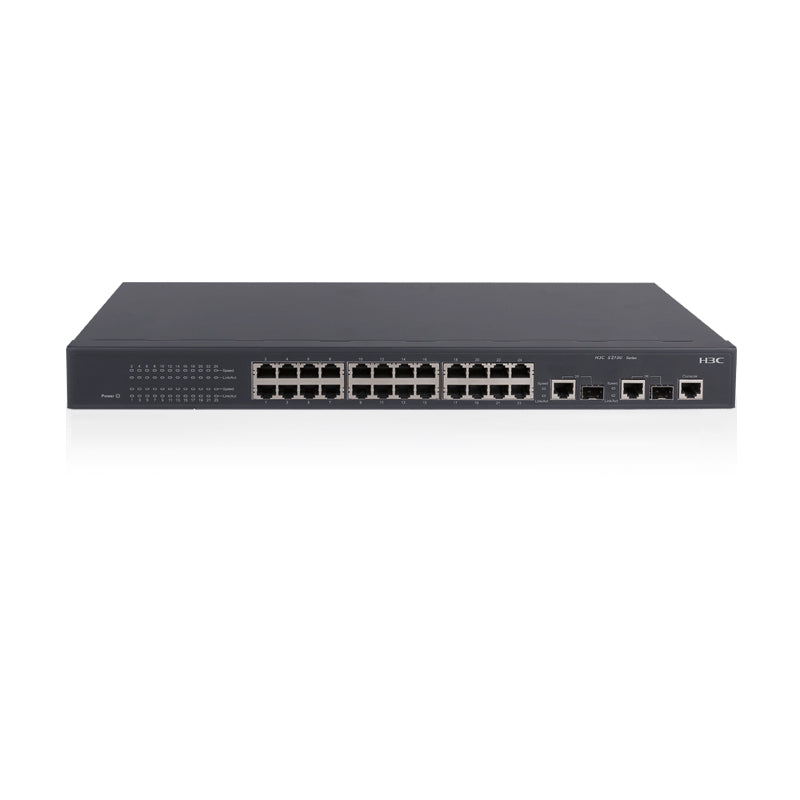

S2126-EI 24 port 2 fiber ports Layer 2 network management switch ethernet switch Isolation / VLAN
$455.00
SKU S2126-EI
Quick Details:
Products Status:Stock
Ports:24
Transmission Rate:10/100/1000Mbps
Function:QOS, SNMP, VLAN Support
Communication Mode:e:Full-Duplex & Half-Duplex
Certification:HWTACACS
Switch Capacity:5.20Gbit/s
Brand Name:H3C
Model Number:S2126-EI
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*160*43.6
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
|
project
|
S2126-EI
|
|
Dimensions (length × width × height)
(Unit: mm) |
440×160×43.6
|
|
weight
|
≤3kg
|
|
Fixed port
|
24 10/100Base-TX adaptive ports
2 Combo ports |
|
Management port
|
1 console port
|
|
Exchange capacity
|
All ports support wire-speed forwarding
5.20Gbit/s |
|
Packet forwarding rate
|
3.72Mpps
|
|
VLAN
|
Supports up to 4K IEEE 802.1Q compliant VLANs
Support for port-based vlan |
|
VLAN interface
|
Support a VLAN virtual interface
|
|
GVRP
|
stand by
|
|
Broadcast storm suppression
|
Supports broadcast storm suppression based on port bandwidth percentage
|
|
Multicast
|
IGMP v1/v2/v3 Snooping
MVR 256 Layer 2 multicast entries |
|
Unknown multicast packet discard
|
stand by
|
|
Port aggregation
|
Support LACP
Support manual port aggregation Support for up to three aggregation groups 8 ports per aggregation group |
|
Jumbo frame
|
Support, up to 2048
|
|
Port mirroring
|
Supports one-to-many port mirroring (that is, one mirrored port, and there is no limit to the number of mirrored ports)
Support RSPAN (Remote Switched Port Analyzer) |
|
Port isolation
|
stand by
|
|
Port self-loop detection
|
stand by
|
|
Port loopback test
|
stand by
|
|
MAC address table
|
Support address self-learning
Compliance with IEEE 802.1D standards Supports up to 8K MAC addresses Support 1K static MAC addresses Support for adding dynamic/static unicast MAC addresses, multicast MAC addresses, and black hole MAC addresses |
|
ARP
|
Static ARP: 16
Number of dynamic ARPs: 256 |
|
Flow Control
|
Support IEEE 802.3x flow control (full duplex)
Support Back-pressure based flow control (half duplex) |
|
Loading and upgrading
|
Support XModem protocol to implement load upgrade
Support FTP (File Transfer Protocol), TFTP (Trivial File Transfer Protocol) load upgrade |
|
management
|
Support for command line interface (CLI) configuration
Support Telnet remote configuration Support through the console port configuration Support SNMP (Simple Network Management Protocol) Support RMON (Remote Monitoring) 1, 2, 3, 9 group MIB Support H3C QuidView network management system Support WEB network management Support system log Support hierarchical alarm |
|
Quick Start
|
stand by
|
|
maintain
|
Support debugging information output
Support PING (Packet Internet Groper), Traceroute, Multicast Traceroute Support Telnet remote maintenance Support for power-on POST Support VCT (Virtual Cable Test) cable detection function |
|
QoS
|
4 output queues per port
Supports 802.1p priority and DSCP (Differentiated Services Codepoint Priority) priority Supports flexible queue scheduling algorithms, which can be set based on ports and queues at the same time, and supports WRR and HQ+WRR modes. Support port bidirectional speed limit, control granularity is 64 Kbit/s |
|
Safety features
|
User hierarchical management and password protection
Support Guest VLAN Support IEEE 802.1X authentication Support for MAC address based authentication Support centralized MAC address authentication User hierarchical management and password protection Support IEEE 802.1X authentication, the maximum number of links supported is 1024, and the maximum concurrent 64 Support AAA&Radius&HWTACACS authentication Support MAC address learning limit Support SSH 1.5, SSH 2.0 Support against DoS attack Support port isolation Support MAC address black hole Support for Password recovery feature Support BOOTROM access control Support management user RADIUS authentication Support for untrusted port priority settings |
|
Spanning Tree Protocol
|
Supports STP/RSTP/MSTP and supports up to 16 spanning tree instances.
|
|
Cluster management
|
Support NDP (Neighbor Discovery Protocol)
Supports NTDP (Network Topology Discovery Protocol) |
|
DHCP
|
Support DHCP client
Support DHCP Snooping |
|
NTP
|
stand by
|
|
Port-based trap
|
stand by
|
|
Default configuration file
|
stand by
|
|
HGMP
|
Support HGMP v2
|
|
QinQ
|
Support basic QinQ
|
|
power supply
|
Use AC input:
Rated voltage range: 100V ~ 240V AC; 50/60Hz Maximum voltage range: 90V ~ 264V AC; 47Hz ~ 63Hz |
|
Maximum power consumption of the whole machine
|
14W
|
|
fan
|
无
|
|
Working temperature
|
0℃～45℃
|
|
Working environment relative humidity (non-condensing)
|
10%～90%
|
|
Safety features
|
UL 60950 3rd ed.
|
|
IEC 60950: 1999, corr. Feb. 2000; all national deviations
|
|
|
EN 60950: 2000, ZB and ZC deviations
|
|
|
NOM-019 SCFI
|
|
|
Mexico, AS/NZS 60950:2000;
|
|
|
Australia、Russian GOST safety approval
|
|
|
EMC
|
CISPR 22 Class A
|
|
FCC Part 15 Class A
|
|
|
EN 55022 Class A
|
|
|
ICES-003 Class A
|
|
|
VCCI Class A
|
|
|
Korean EMI Class A
|
|
|
AS/NZS 3548 Class A
|
|
|
CNS 13438 Class A
|
|
|
EN 61000-3-2
|
|
|
EN 61000-3-3
|
NLine-speed switching, flexible port uplink
The H3C S2126-EI switch has a bus bandwidth of 5.20 Gbps, which provides Layer 2 wire-speed switching capability for all ports. It also provides a flexible uplink mode that is shared by fixed electrical interfaces and SFP modules. This saves costs and better meets user network deployment. Actual needs.
Complete security control strategy
The H3C S2126-EI switch supports 802.1x authentication. It implements the necessary identity authentication when the user accesses the network. It supports broadcast storm suppression and port lock to ensure the legitimacy of access users.
Supports the remote port mirroring function (RSPAN) of the switch. The traffic of the access port can be mirrored to the core switch (for example, the S9500/S7500), and the network stream analysis (Netstream) function is enabled on the core to monitor the service and traffic of the port. Monitor, optimize deployment, and monitor malicious attacks.
DHCP snooping (listening) is enabled. The DHCP snooping binding table is created and maintained to detect the MAC address, IP address, lease period, and VLAN-ID interface of the access user. This solves the IP address and port tracking of DHCP users. Targeting issues. At the same time, the invalid packets (ARP spoofing packets and spoofed IP addresses) that do not match the binding entries are directly discarded to ensure the authenticity and consistency of the DHCP environment.
QoS capability
The H3C S2126-EI switch supports four output queues per port and supports two types of queue scheduling algorithms: WRR scheduling algorithm and HQ+WRR scheduling algorithm. Packets can be placed in the output queue of the port with different priorities. It supports bidirectional rate limiting on the port. The control rate of the rate limit is up to 64 Kbps. Meet the needs of users for multi-service identification, classification, and resource scheduling.
Easy to use management and maintenance
The H3C S2126-EI switch features a fanless, quiet design that is ideal for use in corridors and offices. Support VCT (Virtual Cable Test) cable detection function, which is convenient for quickly locating network fault points. Remote upgrade of devices through FTP and TFTP, support for HGMP cluster management system and fault diagnosis, and centralized management and maintenance of devices. Support SNMP, support common network management platform such as HP OpenView, and Quidview® network management system. Supports CLI command line, Web network management, TELNET, and HGMP cluster management to make device management more convenient.
