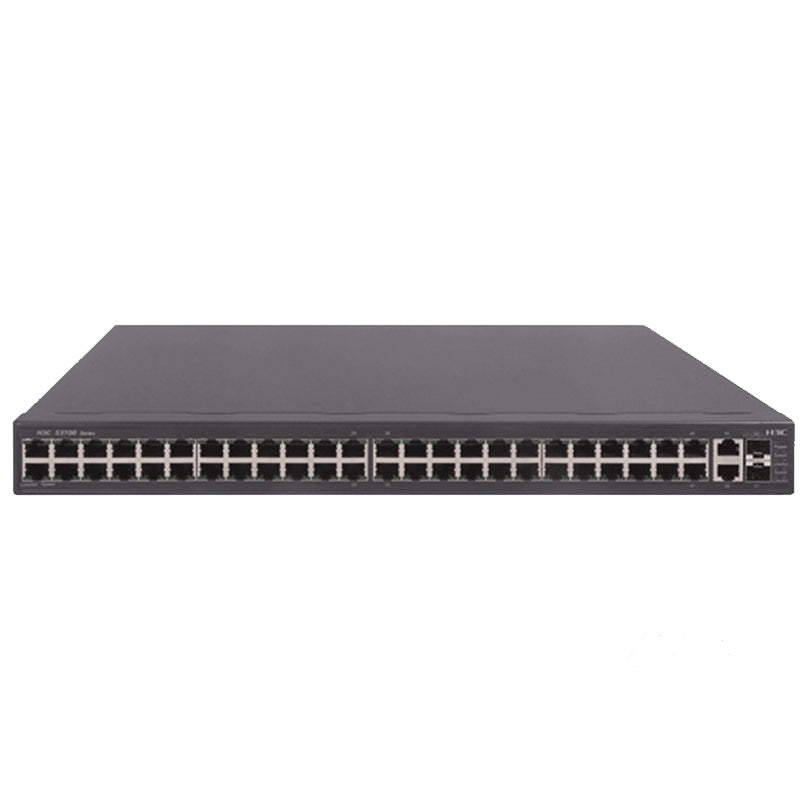

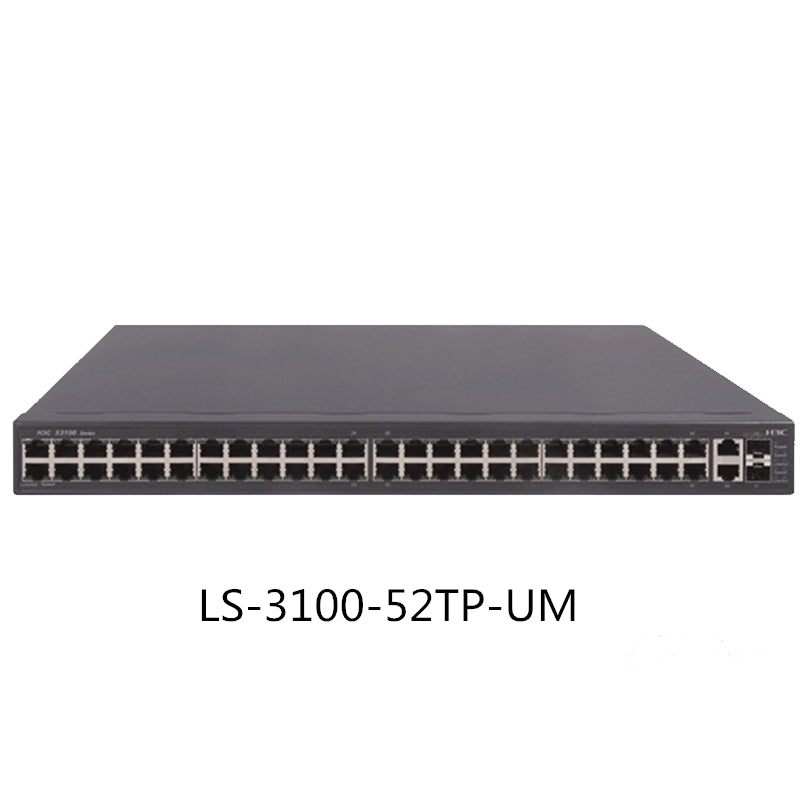

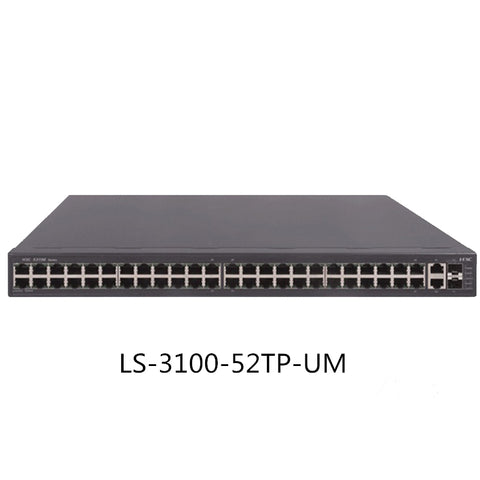

S3100-52TP-UM Ethernet Switch 48-port 100M Layer 2 Intelligent Network Enterprise Switch
$1,050.00
SKU LS-3100-52TP-UM
Quick Details:
Products Status:Stock
Ports:≥ 48
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex
Certification:RADIUS
Switch Capacity:19.2Gbps
Brand Name:H3C
Model Number:LS-3100-52TP-UM
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*230*43.6
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
H3C S3100TP-SI (UM) Series Switches Specifications Features
|
Item
|
S3100-26TP-SI(UM)
|
S3100-52TP-SI(UM)
|
|
Dimensions (length x width x height) (unit: mm)
|
440×160×43.6
|
440×230×43.6
|
|
Weight
|
≤3kg
|
≤5.5kg
|
|
Fixed port
|
24 10 / 100Base-TX Ethernet ports;
Two 10/100 / 1000Base-T Ethernet ports and two multiplexed 100 / 1000Base-X SFP ports |
48 10 / 100Base-TX Ethernet ports;
Two 10/100 / 1000Base-T Ethernet ports and two 100 / 1000Base-X SFP ports |
|
Management port
|
1 Console port
|
|
|
Exchange capacity
|
19.2Gbps
|
|
|
Packet forwarding rate
|
6.6Mpps
|
13.2Mpps
|
|
Exchange mode
|
Store and forward mode (Store and Forward)
|
|
|
power supply
|
With AC input:
Rated voltage range: 100V ～ 240V AC; 50 / 60Hz To large voltage range: 90V ~ 264V AC; 47Hz ~ 63Hz |
|
|
Machine to large power consumption
|
17W
|
23.7W
|
|
Fan
|
no
|
no
|
|
Working temperature
|
0℃～45℃
|
|
|
Relative humidity in the working environment (non-condensing)
|
10%～90%
|
|
S3100TP-SI (UM) Series Ethernet Switch Service Features
|
characteristic
|
S3100TP-SI(UM)
|
|
|
Exchange mode
|
Store and forward mode (Store and Forward)
|
|
|
port
|
Support IEEE 802.3x flow control (full duplex)
Support broadcast storm suppression based on port bandwidth percentage |
|
|
MAC address
|
Support 8K MAC
Support black hole MAC Support setting port MAC learning to a large number |
|
|
Port aggregation
|
Support LACP
Support manual aggregation |
|
|
VLAN
|
Support port-based VLAN (4K)
Supports protocol-based VLAN Support Voice VLAN Support GVRP |
|
|
Layer 2 ring network protocol
|
Support STP / RSTP / MSTP
Support Smart Link |
|
|
Stacked
|
Up to 16 devices can be stacked
|
|
|
Multicast
|
IGMP Snooping v1 / v2 / v3
Multicast VLAN |
|
|
Mirror
|
Support N: 1 port mirroring
Support RSPAN Supports flow mirroring |
|
|
QoS/ACL
|
Support ACL
|
Supports L2 ～ L4 packet filtering function, can match the first 80 bytes of the message, and provides a range based on source MAC
address, destination MAC address, source IP address, destination IP address, IP protocol type, TCP / UDP port, TCP / UDP port , VLAN, etc. define ACL. Support port-based, VLAN-based, global ACL delivery Support ACL based on Time Range |
|
Supports QoS
|
Supports 4 output queues per port
Support 802.1p / DSCP priority Support port queue scheduling (SP, WRR, SP + WRR) Supports flow-based packet filtering Supports flow-based traffic statistics Supports stream-based redirects Supports flow-based priority marking Supports flow-based rate limiting Support traffic shaping |
|
|
Safety features
|
User hierarchical management and password protection
Guest VLAN support Support IEEE 802.1X authentication / centralized MAC address authentication Support AAA & RADIUS & HWTACACS authentication Support MAC address learning limit Support MAC address black hole Supports SSH 2.0 Support IP source address protection Support ARP intrusion detection function Support ARP packet rate limit function Support port isolation Support IP + port binding Support IP + MAC binding Support port + MAC binding Support IP + MAC + port binding |
|
|
DHCP
|
Support DHCP client
Support DHCP Snooping Support DHCP Snooping trust Support DHCP Snooping option 82 |
|
|
Management and maintenance
|
Support XModem / FTP / TFTP loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration Supports HGMP v2 cluster management Support SNMP v1 / v2 / v3, WEB network management Supports RMON 1, 2, 3, 9 MIBs Support H3C iMC Intelligent Management Center Support system log, hierarchical alarm Support PING, Traceroute, Multicast Traceroute Support Telnet remote maintenance Support VCT (Virtual Cable Test) cable detection function Support DLDP (Device Link Detection Protocol) unidirectional link detection protocol Support Loopback-detection port loopback detection Support IPv6 host network management feature family |
|
