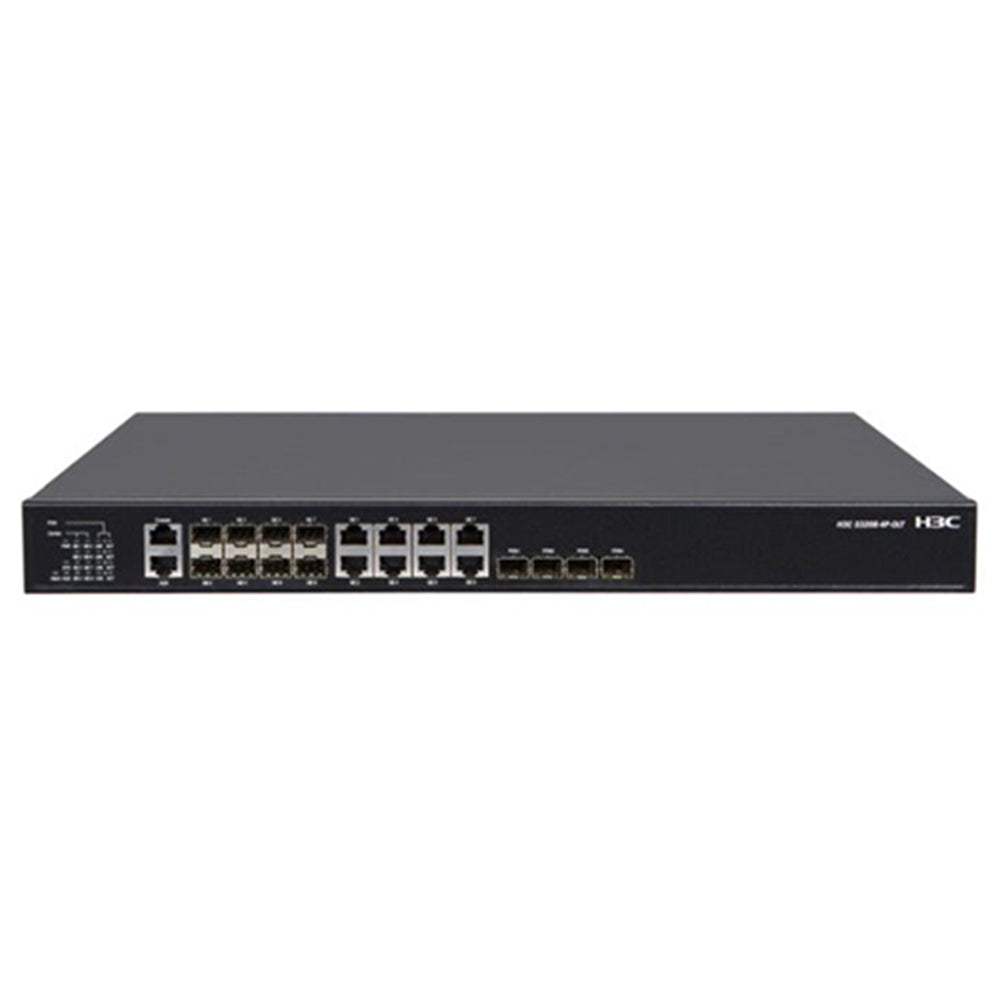

H3C S3208-4P-OLT 4 1000Base-PX + 8 10/100 / 1000Base-T RJ45 / 100Base-FX / 1000Base-X SFP Combo Ethernet PON OLT switch host

H3C S3208-4P-OLT 4 1000Base-PX + 8 10/100 / 1000Base-T RJ45 / 100Base-FX / 1000Base-X SFP Combo Ethernet PON OLT switch host

$972.00 USD
$980.00 USD $972.00 USD
Sale Sold out

Quick Details:

  • Products Status:Stock

  • Ports:12

  • Transmission Rate:10/100/1000Mbps

  • Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

  • Communication Mode:Full-Duplex & Half-Duplex

  • Switch Capacity:32

  • Brand Name:H3C

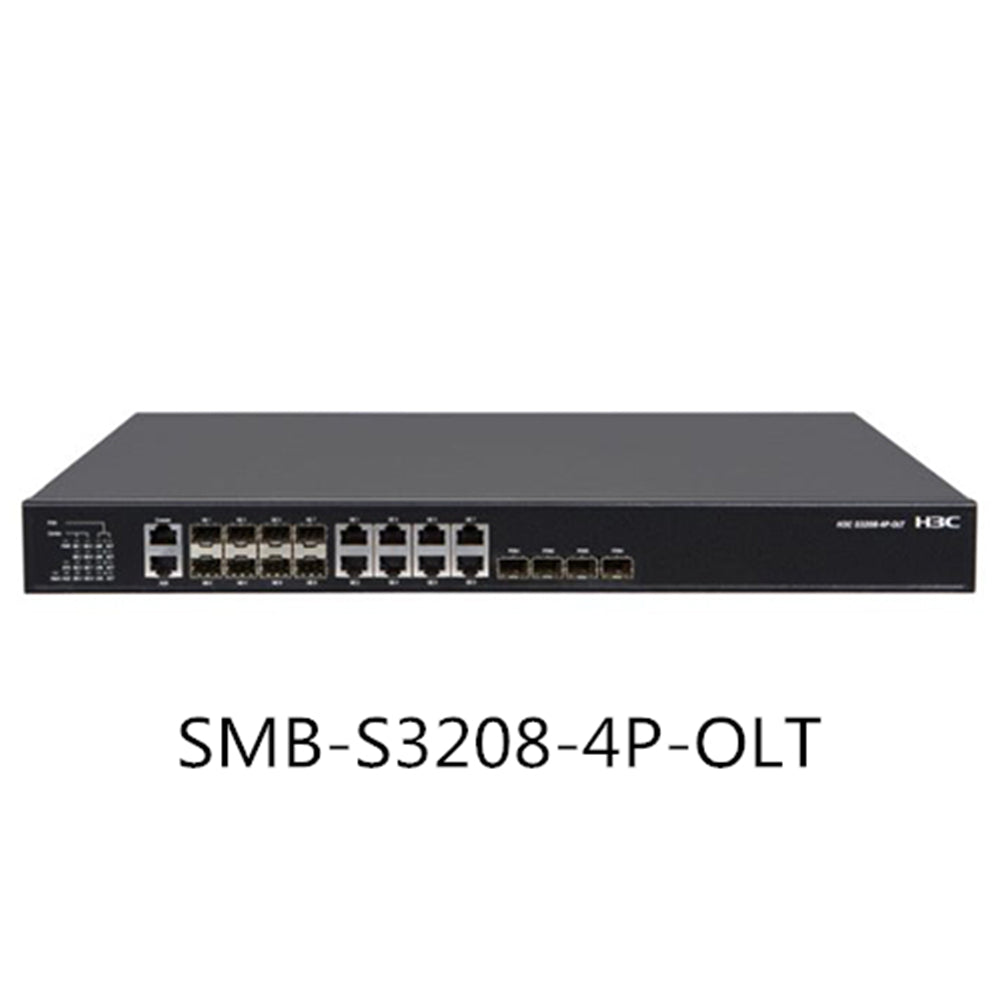

  • Model Number:SMB-S3208-4P-OLT

  • Place of Origin:Guangdong, China

  • Warranty:1 Years

  • Dimensions (W x D x H): H):442*315*44mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time:

Quantity(Pieces) 1 - 1 >1
Est. Time(days) 30 To be negotiated


Product Description:

Item
Description
Product
S3208-4P-OLT
S3208-8P-OLT
Dimensions (mm)
442 (W)×315 (D)×44 (H)
Weight
<3Kg
Power supply
AC: Input 90 ～ 240V
Maximum power consumption
<46W
Management Interface
Console port
PON port
4 * 1000BASE-PX20-U, SFP interface
8 * 1000BASE-PX20-U, SFP interface
Uplink port
8*GE Combo
Working humidity
5%～95%(Non-condensing)
Operating temperature
0°C～40°C
Business Features
IEEE802.3ah
"Access Network Technical Requirements-Passive Optical Network (EPON) Based on Ethernet"
"Access Network Technical Requirements-EPON System Interoperability"
EPON
Supports a single PON port to access 64 terminals
Support 128Bits uplink and downlink triple agitation encryption function
Support ONU terminal legitimacy authentication, report illegal ONU registration event
Support dynamic bandwidth allocation DBA algorithm, granularity 64Kbit / s
Supports a maximum effective transmission distance of 20 kilometers
Support ONU software batch upgrade, regular upgrade, real-time upgrade
Support PON port luminous power and receive optical power detection
Support CTC standard OAM management
Ethernet Layer 2 Features
Limit on the number of port MAC addresses
MAC address capacity: 16K
VLAN capacity: 4094
Support VLAN based on port, MAC, protocol and IP subnet
Support flexible Qinq
Support GVRP
Support STP / RSTP / MSTP
Support port loop detection
Support static and LACP dynamic aggregation port aggregation
Support port mirroring
QoS
Supports Ethernet data flow priority marking
Support 802.1d, DSCP priority
Support 4 priority queues per port, support SP / WRR priority scheduling algorithm
Support port speed limit
Support queue scheduling, traffic shaping and traffic statistics
Supports priority marking of ports or custom flows, and provides re-marking of 802.1P and DSCP priorities
Provides traffic classification and flow definition based on IP packet header information such as source / destination MAC
address, VLAN, 802.1p, ToS, DiffServ, source / destination IP (IPv4 / IPv6) address, TCP / UDP port number, protocol type
Support ACL policy based on Time Range
Multicast
Support IGMPv1 / v2 / v3 Snooping
Supports multicast VLAN
Security Mechanism
Support ACL flow filtering mechanism
Support anti-ARP spoofing and anti-DOS attack
Support Sshv2
Supports hierarchical protection to prevent unauthorized access by unauthorized users
Support multiple combinations of IP address, VLAN ID, MAC address and port
Reliability
Support BFD link detection
Support EPON optical path protection (switching time <50ms)
Support Ethernet ring network protocol (loop healing time <50ms)
Support hot patch
System Management
Supports SNMP v1 / v2 / v3
Support command line interface (CLI), Console port, Telnet and WEB configuration management



Provide high-density PON ports

The full machine can support 512/256 ONU terminals, which has a larger capacity than ordinary box-type OLT. Each PON port supports an optical splitting ratio of 1:64 (maximum access to 64 ONUs), a hot-swappable PON optical module design, and a maximum transmission distance of 20Km;

Perfect security protection mechanism

It adopts hardware-based packet-by-packet forwarding, which can effectively detect and filter characteristic packets, and supports MAC address-based automatic ARP attack protection and automatic user blocking functions to prevent protocol packet attacks. Support various device protection functions such as anti-DDoS, CPU overcurrent protection and VRRP, prevent illegal or abnormal traffic from entering the network, resist multiple virus attacks, and ensure the security of device management;

Supports PON fiber redundancy protection, and the link automatically protects and switches when a fiber failure occurs;

Comprehensive PON service capabilities

Supports dynamic bandwidth allocation DBA algorithm, dynamic bandwidth allocation mechanism (DBA) enables all users to more reasonably share 1Gbps bandwidth and achieve reliable quality of service

Supports rich Ethernet functions

With effective isolation guarantee mechanism, VLAN isolation, protected ports, MAC address binding, IP address binding, port speed limit, queue technology, flow control technology, etc., have provided technical support for the development of multi-service convergence;

Achieve advanced functions such as flexible QinQ and QoS. ACL supports L2 to L7 in-depth filtering of 80 bytes of IP packet headers, providing high-quality QoS service quality guarantee for multi-service operation.

Highly centralized operation management and maintenance

Service-oriented, providing unified network transmission and interconnection protocols, address management, domain name management, security management, user access management, etc. Rich OAM functions, including configuration, alarm, performance monitoring, fault isolation, and security management.
