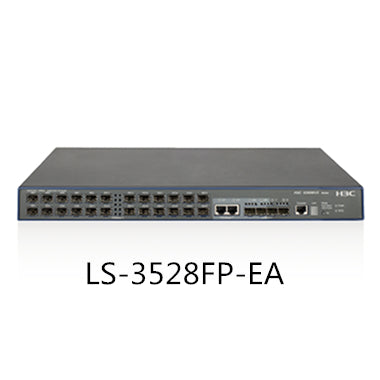

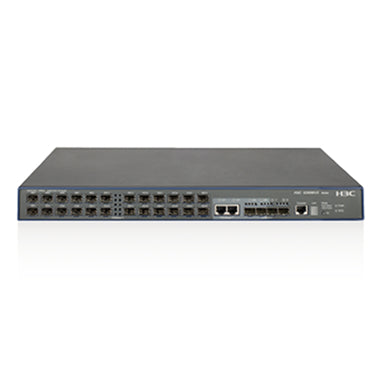

H3C S3528FP-EA Ethernet Switch 24-port 100 Mbit Electricity Three-layer Fiber Convergence Switch Operation Level Campus Switch
Save 8%
$1,800.00
$1,650.00
SKU LS-3528FP-EA
Quick Details:
Products Status:Stock
Ports:24
Transmission Rate:10/100/1000Mbps
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
Communication Mode:Full-Duplex & Half-Duplex
Certification:RADIUS
Switch Capacity:64Gbps
Brand Name:H3C
Model Number:LS-3528FP-EA
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*43.6*260
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
H3C S3500EA Series Ethernet Switch System Features
|
Item
|
H3C S3500EA Series
|
|
|
Dimensions (W × H × D)
|
S3528-EA
|
440×43.6×260mm
|
|
S3528FP-EA
|
||
|
S3552TP-EA
|
||
|
weight
|
S3528-EA
|
<5kg
|
|
S3528FP-EA
|
<5kg
|
|
|
S3552TP-EA
|
<5kg
|
|
|
Management port
|
1 Console port
|
|
|
Input voltage
|
H3C S3500EA series supports AC power input and DC power input
AC: Rated voltage range: 100-240V AC; 50 / 60Hz Maximum voltage range: 90-264V AC; 50 / 60Hz DC: Rated voltage range: -48 to -60V Maximum voltage range: -36 to -72V |
|
|
Power consumption (at full load)
|
S3528-EA
|
31W
|
|
S3528FP-EA
|
60W
|
|
|
S3552TP-EA
|
43W
|
|
|
Working temperature
|
0～50℃
|
|
|
Relative humidity in the working environment (non-condensing)
|
10%～90%
|
|
H3C S3500EA Series Ethernet Switches Business Features
|
Supporting features
|
Description
|
|
|
Exchange capacity
|
64Gbps
|
|
|
Layer 2 and 3 wire speed forwarding
|
28-port packet forwarding rate: 9.6Mpps
52-port packet forwarding rate: 13.2Mpps |
|
|
Port aggregation
|
Support FE (Fast Ethernet) port aggregation
Support GE (Gigabit Ethernet) port aggregation Support LACP (Link Aggregation Control Protocol) Support manual aggregation |
|
|
MAC address
|
Support black hole MAC address
Support setting the maximum number of port MAC address learning |
|
|
port
|
Support IEEE 802.3x flow control (full duplex)
Supports Back-pressure based flow control (half-duplex) Support storm suppression based on port rate percentage Support setting port priority |
|
|
DLDP
|
Support DLDP (Device Link Detection Protocol)
|
|
|
VLAN
|
Support port VLAN (4094)
Support protocol VLAN Based on IPv4 subnet VLAN Support Voice VLAN Support GARP / GVRP Support VLAN VPN (QinQ), flexible QinQ, BPDU tunnel Support VLAN Translation |
|
|
Stacked
|
Support IRF2 intelligent elastic architecture
Support distributed device management, distributed link aggregation Support distributed elastic routing Supports stacking through standard Ethernet interfaces, etc. Support local stacking and remote stacking |
|
|
DHCP
|
Support DHCP Server
Supports DHCP-Relay Support DHCP Client Support DHCP Snooping Supports DHCP Option 82 in DHCP-Relay and DHCP Snooping functions |
|
|
DNS
|
Supports static domain name resolution
Support for dynamic domain name resolution clients |
|
|
ARP
|
Support ARP
Supports free ARP Supports ARP Proxy |
|
|
IP routing
|
Support static route and default route
Supports BFD (Bidirectional Forwarding Detection) on static routes Support RIP (Routing Information Protocol) v1 / 2 Support RIPng Support OSPFv1 / v2 (Open Shortest Path First) Support OSPFv3 Support IS-IS Support IS-ISv6 Supports Border Gateway Protocol (BGP) Supports BGP4 + for IPV6 Support IPv4, IPv6 policy routing Supports equal cost routing |
|
|
MCE
|
Support MCE (Multi-CE)
|
|
|
Multicast
|
IGMP (Internet Group Management Protocol) snooping
Supports multicast VLAN Support IGMPv1 / v2 / v3 Supports PIM-DM (Protocol Independent Multicast-Dense Mode) Supports PIM-SM (Protocol Independent Multicast-Sparse Mode) Supports MSDP (Multicast Source Discovery Protocol) Support MLD Snooping |
|
|
Layer 2 ring network protocol
|
Support STP / RSTP / MSTP
Support Smart Link Supports RRPP (Rapid Ring Protection Protocol) |
|
|
IPv6
|
Support ND (Neighbor Discovery)
Support PMTU Support IPv6 Ping, IPv6 Tracert Support IPv6 Telnet Support IPv6 TFTP |
|
|
IPv6 over IPv4 Tunnel
|
Support manual tunnel configuration
Support 6to4 tunnel Supports ISATAP (Intra-site Automatic Tunneling Protocol) tunnel Support Auto-tunnel (ie IPv4 compatible tunnel) |
|
|
QoS/ACL
|
Support ACL
|
Supports traffic classification based on source MAC address, destination MAC address, source IP address, destination IP address,
Layer 4 port, protocol type, VLAN and other information Support basic ACL Support advanced ACL Supports Layer 2 ACL Support user-defined ACL |
|
Support ACL flow template
|
Support user-defined flow templates
Support system default flow template |
|
|
Supports QoS
|
Supports flow-based traffic rate limiting
Supports flow-based tagging priority, Support flow-based modification packet VLAN ID Support flow-based packet redirection to port or IP next hop Supports flow-based traffic statistics Supports flow-based flow mirroring Support port queue scheduling (SP / WRR / SP + WRR) Supports port mirroring and RSPAN (remote port mirroring) Support port traffic shaping Support port congestion drop |
|
|
Support IPv6 ACL
|
Supports traffic classification based on information such as source IPv6 address, destination IPv6 address, Layer 4 port, and
protocol type Support basic IPv6 ACL Supports advanced IPv6 ACL |
|
|
Support Time Range
|
||
|
Supports policy routing
|
||
|
Safety features
|
Support user hierarchical management and password protection
Supports IEEE 802.1x authentication Support AAA Support Radius authentication Support HWTacacs Support centralized MAC address authentication Support port isolation Support IP + MAC + port binding |
|
|
reliability
|
Support VRRP (Virtual Redundancy Routing Protocol)
|
|
|
Loading and upgrading
|
Support XModem protocol for loading upgrade
Support FTP (File Transfer Protocol) loading and upgrading Support TFTP (Trivial File Transfer Protocol) loading and upgrading |
|
|
management
|
Support command line interface (CLI) configuration
Support Telnet remote configuration Support configuration through console port Supports Simple Network Management Protocol (SNMP) V1 / V2c / V3 Support RMON (Remote Monitoring) 1, 2, 3, 9 MIBs Support H3C QuidView network management system Support WEB network management Support system log Support hierarchical alarm Supports cluster management HGMP (Huawei Group Management Protocol) V2 Support Modem remote dialing Support NTP Supports SSH 2.0 Support power status detection and alarm |
|
|
maintain
|
Support debugging information output
Support Ping, Tracert Support NQA Support Telnet remote maintenance Support VCT Virtual Cable Test (Virtual Cable Test) Support DLDP (Device Link Detection Protocol) |
|
