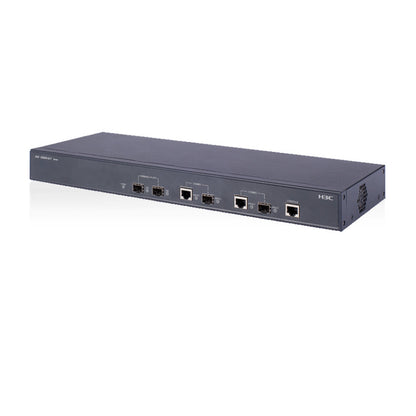

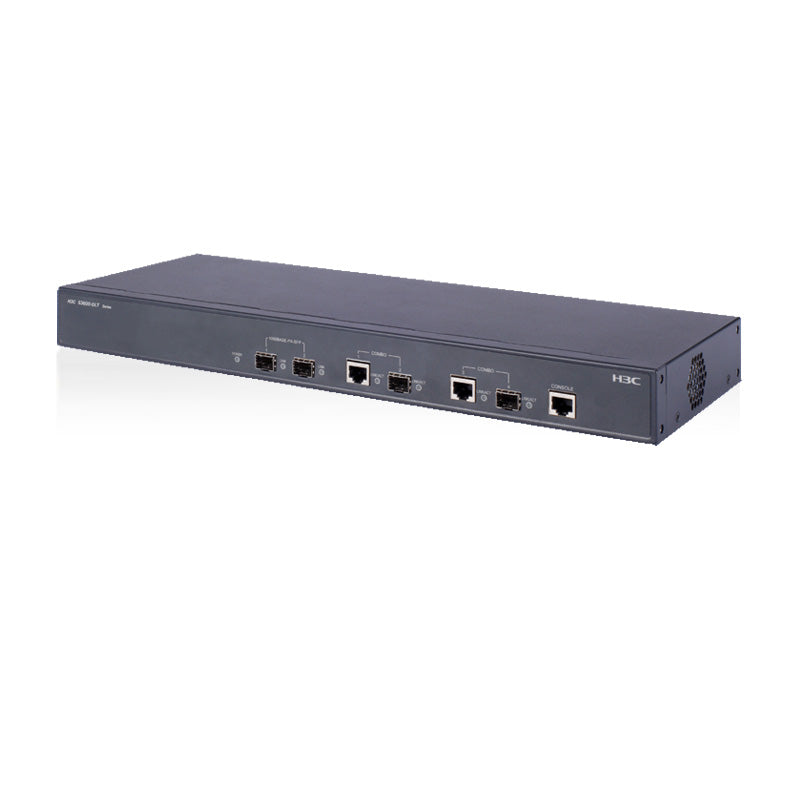

H3C S3600-2P-OLT Four-port Gigabit Ethernet PON OLT Switch AC Host

Save 8%

Quick Details:

Products Status:Stock


Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:Full-Duplex & Half-Duplex

Certification:CE, FCC PART 15, TUV-GS, UL-CUL, ICES003, and VC

Switch Capacity:8Gbps

Brand Name:H3C

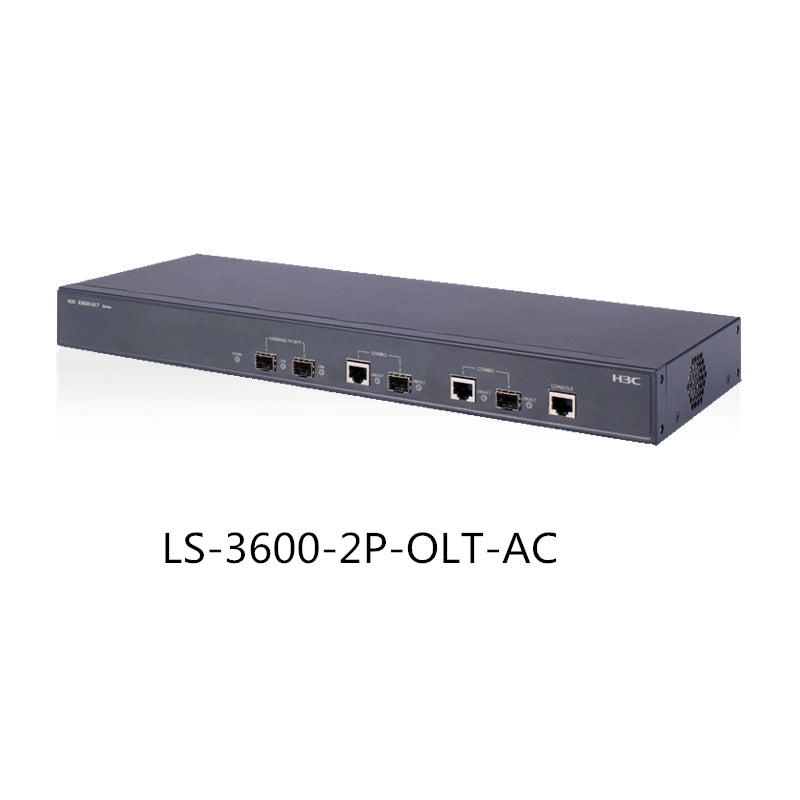

Model Number:LS-3600-2P-OLT-AC

Place of Origin:Guangdong, China


Dimensions (W x D x H):440*160*43.6

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :


1 - 1


Est. Time(days)


To be negotiated

Product Description:

Layer two
Supports IEEE 802.3ah
Support 802.1P (COS priority)
Supports IEEE 802.1Q (VLAN)
Support IEEE 802.1d (STP) /802.1w (RSTP) /802.1s (MSTP)
Support IEEE 802.1ad (QinQ), flexible QinQ and VLAN mapping
Supports IEEE 802.3x (full duplex flow control) and back pressure flow control (half duplex)
Supports IEEE 802.3z (1000BASE-X) /802.3ab (1000BaseT)
Exchange capacity
Switching capacity: 8Gbps
Packet forwarding rate: 11.9Mbps
Support IGMPv1 / v2 / v3 Snooping
Supports multicast VLAN
Supports standard and extended ACLs
Support VLAN-based ACL
Support 802.1P / DSCP priority Mark / Remark
Security Mechanism
Support ACL flow filtering mechanism
Support hierarchical protection of command line to prevent unauthorized access by unauthorized users and have different
configuration permissions for different levels of users
Support multiple combinations of IP address, VLAN ID, MAC address and port
System Management
Support FTP, TFTP
Supports SNMP v1 / v2 / v3
Support EPON optical path protection
Supports RRPP loop protection technology
Support Smart-Link
Support hot patch
Temperature range: 0 OC ~ 45 OC
Relative humidity: 10% to 95% (non-condensing)
Safety regulations
and EMC certification
Passed CE, FCC PART 15, TUV-GS,
UL-CUL, ICES003, and VC
Power supply
DC: Input voltage -48V ~ -60V
AC: Input voltage 100V ~ 240V
Power: 20w
Dimensions (W × H × D) (mm)
440 x 160 x 43.6
Full weight (kg)

Packing & Delivery:

1. DHL / UPS / FedEx / TNT , Door-to-Door.

2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We will choose the best and safe packaging material to make sure your orders won't be
damaged during delivery.

Company Profie:

TFC is one-stop supplier for quality new, used and refurbished IT hardware. NMI buys, sells, leases, rents, consigns and trades
just about every product line including Sun, HP, IBM, Dell,Lenovo, storage equipment as NetApp and EMC, telecom equipment as
H3C,HUAWEI,CISCO,Juniper etc...

Our Certificates:


Q1:What's your main product?
TFC mainly produce networking equipment, server , storage equipment etc.

Q2:What's your payment term?
Usually L/C,T/T,D/P,D/A ,it is determined by our negotiation.

Q3:Can you customize product?
Yes, TFC can supply you products according to your requirement .

Q4:What is the MOQ and Leading?
Usually 30~50 working days for delivery.
