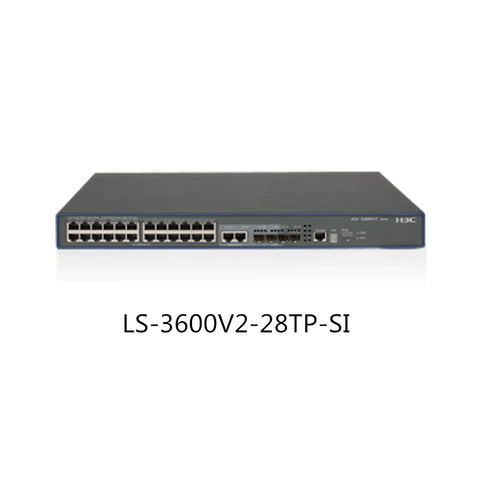

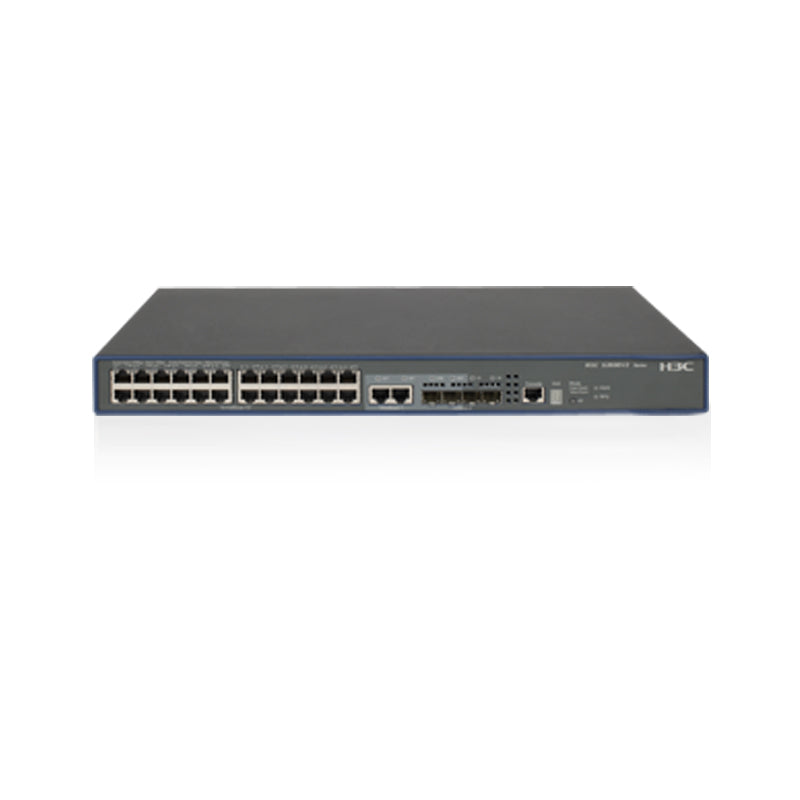

H3C S3600V2-28TP-SI Ethernet switch 24-port 100M electrical port + 2 Gigabit optical port Layer 3 network switch

SKU LS-3600V2-28TP-SI

Quick Details:

Products Status:Stock


Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:Full-Duplex


Switch Capacity:64Gbps

Brand Name:H3C

Model Number:LS-3600V2-28TP-SI

Place of Origin:Guangdong, China


Dimensions (W x D x H):440*260*43.6mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :


1 - 1


Est. Time(days)


To be negotiated

Product Description:

Management port
1 Console port
Service port
24 10 / 100Base-
TX Ethernet ports, two 1000Base-T and 1000Base-X SFP Combo ports, two 1000Base-X SFP Gigabit Ethernet ports
48 10 / 100Base-TX Ethernet ports,
Two 1000Base-T and 1000Base-X SFP Combo ports, two 1000Base-X SFP Gigabit Ethernet ports
Exchange capacity
Layer 2 / Layer 3
forwarding rate
Exchange mode
Store and forward mode (Store and Forward)
Support IEEE 802.3x flow control (full duplex)
Support broadcast storm suppression based on port rate percentage
Support pps-based broadcast storm suppression
Port aggregation
Support LACP
Support manual aggregation
Supports up to 128 aggregation groups, each group supports up to 8 ports
MAC address
Support 32K MAC address
Support black hole MAC
Support setting the maximum number of port MAC learning
Support port-based VLAN (4K)
Supports protocol-based VLAN
Support MAC-based VLAN
Support Voice VLAN
Support Super VLAN
Support PVLAN
Support GVRP
Support VLAN VPN (QinQ), flexible QinQ
Support IRF2 intelligent elastic architecture
Support distributed device management, distributed link aggregation
Support distributed elastic routing (EI series)
Supports stacking through standard Ethernet interfaces, etc.
Support local stacking and remote stacking
Support DHCP Client / DHCP Relay / DHCP Snooping
Support DHCP Server
IP routing
Support static routing, RIPv1 / v2, RIPng
Supports OSPFv1 / v2, OSPFv3 (EI series)
Support IS-IS, IS-ISv6 (EI series)
Supports BGP, BGP4 + for IPv6 (EI series)
Support policy routing, ECMP
Support VRRP / VRRPv3
Support MCE (Multi-CE)
Support IGMP Snooping v1 / v2 / v3, MLD Snooping v1 / v2
Supports multicast VLAN
Support IGMP V1 / V2 / V3, MLD v1 / v2, PIM-SM, PIM-DM, PIM-SSM, MSDP (supported by EI series)
Support STP / RSTP / MSTP protocol
Support Smart Link
Supports Smart Link multiple instances
Support BFD
Support RRPP
Support ND (Neighbor Discovery)
Support ND snooping, ND proxy, ND detection
Support PMTU
Support IPv6 Ping, IPv6 Tracert, IPv6 Telnet, IPv6 TFTP
Support manual tunnel configuration
Support 6 to 4 tunnel
Supports ISATAP (Intra-site Automatic Tunneling Protocol) tunnel
Support Auto-tunnel (that is, Automatic IPv4 Compatible IPv6 Tunnel)
Support N: 4 port mirroring
Supports flow mirroring
RSPAN (Remote Switched Port Analyzer)
Support L2 ~ L4 packet filtering function, provide source MAC address, destination MAC address, source IP address, destination IP
address, port, protocol type, VLAN, etc.
Supports ACL based on source IPv6 address, destination IPv6 address, TCP / UDP port number, protocol type, etc.
Support time period based ACL
Supports inbound and outbound bidirectional ACL policies
Support VLAN-based ACL
Supports limiting the rate at which a port receives and sends packets
Supports 802.1p and DSCP priority remarking of packets
Support message redirection
Support CAR function
Support 8 port output queues
Support flexible queue scheduling algorithm, can be set based on port and queue at the same time, support SP, WRR, SP + WRR and
other modes
Safety features
User hierarchical management and password protection
Support IEEE 802.1X authentication / centralized MAC address authentication
Supports Layer 2 Portal authentication / triple authentication
Support AAA & RADIUS authentication
Support MAC address learning limit
Support MAC address binding with port and IP
Support SSH2.0
Supports DoS attack prevention
Support ARP intrusion detection function
Support port isolation
Support MAC address black hole
Management and
Support XModem / FTP / TFTP loading and upgrading
Support command line interface (CLI), Telnet, Console port for configuration
Support SNMPV1 / V2 / V3, WEB network management
Supports RMON 1, 2, 3, 9 MIBs
Support IMC Intelligent Management Center
Supports HGMPv2 cluster management
Support system log, hierarchical alarm, debugging information output
Support PING, Tracert
Supports detection and alarm of power-on POST, fan stall, PoE device overheating, etc.
Support VCT (Virtual Cable Test) cable detection function
Support DLDP (Device Link Detection Protocol)
Support port loopback detection
Support IPv6 host function family to realize IPv6 management
Dimensions (mm)
Width × depth × height
440 × 260 × 43.6
440 × 420 × 43.6 (PWR series)
S3600V2-28TP-SI 、S3600V2-28TP-EI 、S3600V2-28F-EI 、S3600V2-52TP-SI 、S3600V2-52TP-EI:5kg

S3600V2-28TP-PWR-SI 、S3600V2-28TP-PWR-EI、S3600V2-52TP-PWR-SI、S3600V2-52TP-PWR-EI:10kg
Input voltage
The S3600V2-SI series non-POE switches only support AC power input. The S3600V2-SI series POE switches and S3600V2-EI series
switches support AC power input and DC power input.
Rated voltage range: 100 ~ 240V AC .; 50 / 60Hz
Maximum voltage range: 90 ~ 264V AC; 47 / 63Hz
Rated voltage range: -48 ~ -60V DC.
Maximum voltage range: -36 ~ -72V DC.
Input voltage range during POE power supply: -45 ~ -55V DC
Input voltage range during POE + power supply: -55 ~ -57VDC
Power consumption
(at full load)
26W 31W
41W 43W
Working temperature
Relative humidity
