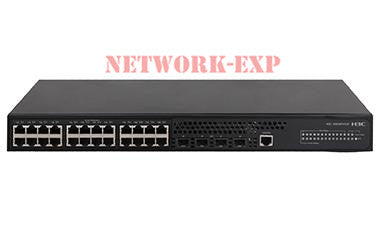

H3C S5024PV3-EI Series Gigabit Managed Switch
Product Feature
- Multi-type Port Access
- IRF2 (Intelligent Resilient Framework 2)
- Enhanced service capabilities
- Comprehensive security control policies
- Professional anti-lightning function
- Green features
- Description
- Reviews
-
Product Overview
H3C S5000V3-EI is the latest development of Gigabit speed managed Ethernet switch that is especially for SMB (Small Business) market. Besides high performance access, it also offers abundant security access policy control and enhanced network manageability and maintenance. This makes it ideal for network construction on industries such as government, small to midsize enterprise, school and hotel.
Click Here to Download Datasheet
Hardware Specifications
Features
S5016PV3-EI
S5024PV3-EI

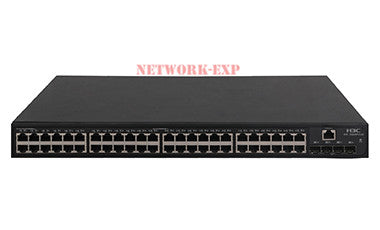

S5048PV3-EI
S5024PV3-EI-PWR
S5024PV3-EI-HPWR
S5048PV3-EI-PWR
S5024FV3-EI
Switching capacity
192Gbps
192Gbps
240Gbps
192Gbps
240Gbps
240Gbps
Packet forwarding rate
30Mpps
42Mpps
78Mpps
42Mpps
78Mpps
78Mpps
Management port
1 console port
10/100/1000 Base-T port
16
24
48
24
48
2
SFP port
4
4
4
4
4
26
Copper port features
Half-duplex, full-duplex, auto-negotiation
MDI/MDI-X
Ethernet functions
LLDP
Static MAC configuration
MAC address learning limit (up to 16K)
Port mirror and flow mirror
Link aggregation (up to 8 ports per group)
Port isolation
STP/RSTP/MSTP
IEEE 802.3ad（Dynamic link aggregation）, static port aggregation
VLAN
802.1Q ( up to 4K VLAN)
Protocol-based VLAN
IP subnet based VLAN
MAC based VLAN
GUEST VLAN
IP routing
Static routing, RIP
DHCP
DHCP Relay
DHCP Client
DHCP Snooping
DHCP Snooping Option82
Broadcast
IGMP V1/V2/V3 Snooping
QoS
Diff-Serv QoS
WRR/HQ-WRR
802.1p, DSCP priority mapping
Directional port speed limit
ACL
ACL on layer 2, layer 3 and layer 4
ACL on IPv4, IPv6
VLAN ACL
IPv6
IPv6 static routing, dual-stack
DHCPv6 Client, DHCPv6 Snooping
ND, PMTU
IPv6 Ping, IPv6 Telnet, IPv6 SSHv2, IPv6 domain name resolution
Reliability
Hot patch, in-service patch upgrade
Security
Hierarchical user management and password protection
SSHv2
SSL
Specific IP address based FTP logging and password mechanism
Prevent attack from ARP, unknown multicast packet, broadcast packet, unknown unicast packet, TTL=1 packet and protocol packet
Prevent Dos attack
IP＋MAC+PORT+VLAN binding
IEEE 802.1x
SAVI source address validity authentication
Radius, HWTACACS
SNMPv3
Broadcast suppression
Prevent CPU attack
System management
Console/AUX Modem/Telnet/SSH2.0/CLI
Loading and upgrading through FTP/TFTP/Xmodem/SFTP
SNMP V1/V2c/V3
NTP
System log
Cluster management
Environment temperature
Operating temperature：0℃~40℃
Storage temperature：-40℃~70℃
Environment humidity
Operating humidity：5%~95% , non-condensing
Storage humidity：5%~95% , non-condensing
Environment protection
China RoHs, EEE
Power consumption
≤19W
≤23W
≤41W
≤230W
AC≤446W
DC≤790W
AC≤467W
DC≤807W
≤37W
PoE+
-
-
-
185W
AC 370W
DC 740W
AC 370W
DC 740W
-
Weight
≤2kg
<2.5kg
<3.5kg
≤4.5kg
≤6kg
≤6kg
<3kg
Input voltage range
AC: 100V～240V AC，50/60Hz；
DC: 220V
Dimensions (W × D x H)
330x230x43.6 mm
440x160x43.6 mm
440x230x43.6 mm
440x260x43.6 mm
440x400x43.6 mm
440x260x43.6 mm
-
