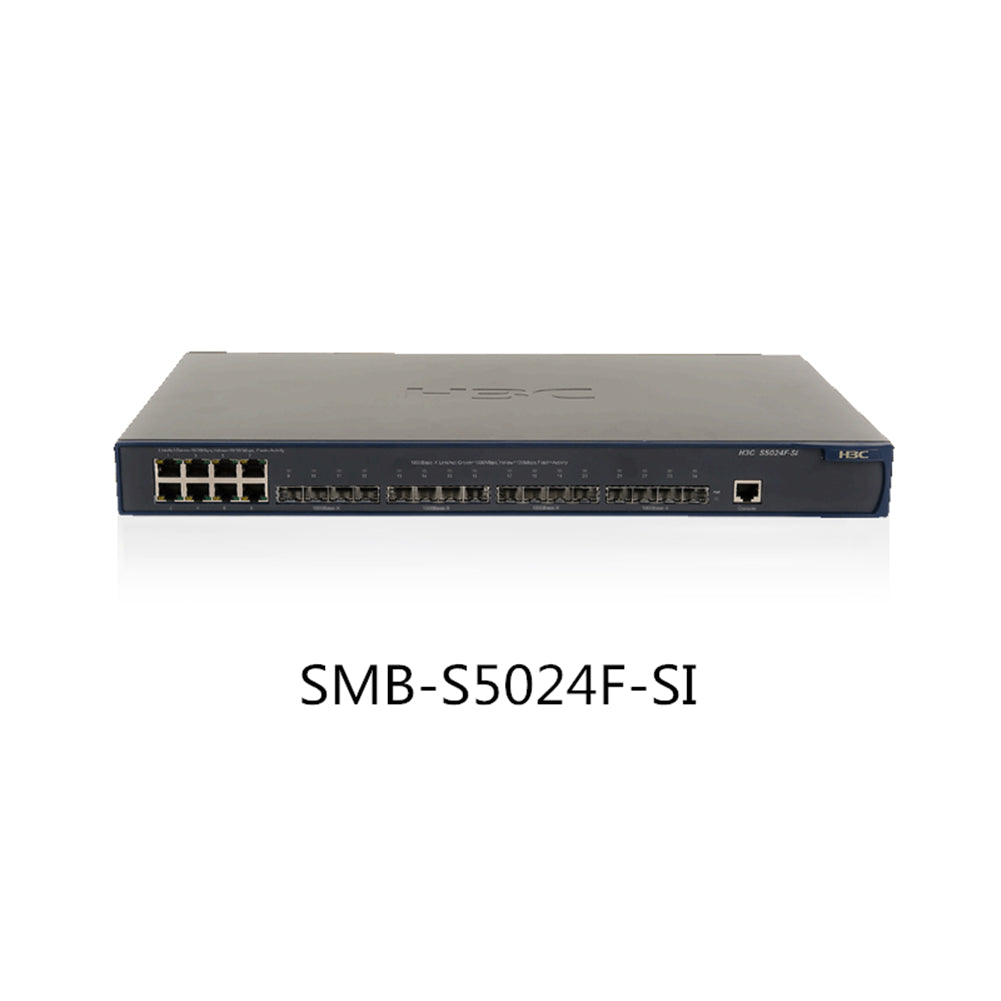

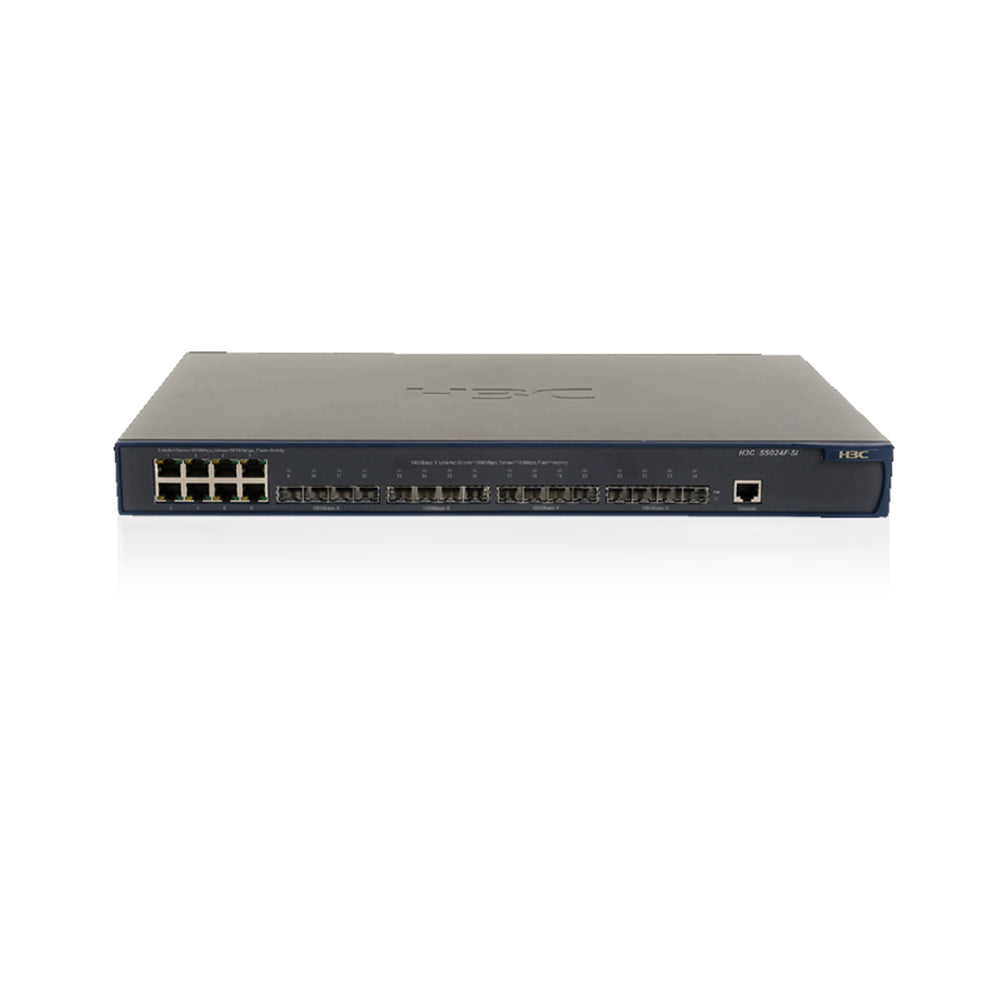

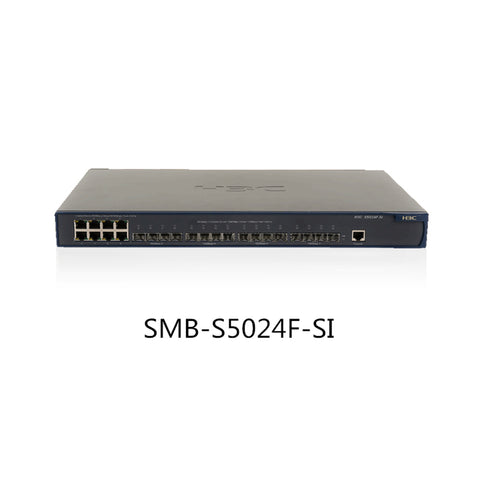

H3C S5024F-SI Ethernet Optical Port Switch 16 Gigabit Optical +8 Gigabit Electric Enterprise Gigabit Smart Switch

Save 8%

Quick Details:

Products Status:Stock


Transmission Rate:10/100/1000Mbps

Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support

Communication Mode:Full-Duplex & Half-Duplex


Brand Name:H3C

Model Number:SMB-S5024F-SI

Place of Origin:Guangdong, China


Dimensions (W x D x H):440*260*44mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :


1 - 1


Est. Time(days)


To be negotiated

Product Description:

IEEE 802.3 10BASE-T Ethernet
IEEE 802.3u 100BASE-TX Fast Ethernet
IEEE 802.3ab 1000BASE-T Gigabit Ethernet
IEEE 802.3z Gigabit Ethernet (fiber)
ANSI / IEEE 802.3 NWay auto-negotiation
IEEE 802.3x flow control
Fixed port
Eight 10/100 / 1000BASE-T adaptive Ethernet ports
16 independent 100Mbps / 1000Mbps SFP optical ports
1 Console port
Fixed port attributes
Connector type: RJ-45
Supports half-duplex, full-duplex, auto-negotiation working modes
Support MDI / MDI-X adaptive
Optional port attributes
Connector type: LC
Support 100 / 1000Mbit / s transmission rate
Indicator light
Per port: Link / Act
Per device: Power
Exchange mode
Store and forward mode
MAC address table
Support automatic address learning and automatic aging (aging time is 5 minutes)
Maximum support MAC (Media Access Control) address: 8K
Dimensions (length × width × height)
440mm × 260mm × 44mm
With mounting ears, rack mountable
Input voltage
100V~240V AC,50/60Hz
Power consumption
Lightning protection on the port
Protection capacity 7KV, lightning protection level 4
Operating temperature
Working humidity
Cooling method
Fan cooling
Safety features
Support management VLAN
Supports two levels of user management and password protection for advanced users
Support black hole address
Supports anti-MAC address flood attack
Support port-based and MAC-based 802.1X
Support port isolation
Supports AAA and Radius authentication
Supports up to 512 IEEE 802.1q compliant VLANs
Supports up to 24 port-based VLANs
Priority Queue (QoS)
Support 802.1p, DSCP priority
Supports 4 priority queues per port
Support WRR, HQ-WRR queue scheduling
Support STP / RSTP
IGMP Snooping (Internet Group Management Protocol Snooping)
Supports up to 256 multicast groups
Port security
Support 512 entries of static MAC address table / MAC address filtering table (512 entries are shared by static MAC address table
and MAC address filtering table)
Supports up to 512 port and MAC address binding entries (MAC address binding and static MAC addresses share 512 MAC entries)
Port aggregation
Support 8 groups of aggregation groups, each group has a maximum of 8 ports
Support manual and static LACP aggregation
Port mirroring
Supports port-based bidirectional mirroring
Port bandwidth control
Supports rate limiting of packet traffic to and from the port, with a granularity of 64Kbps
Broadcast storm suppression
Support broadcast storm suppression based on bandwidth percentage on all ports
Equipment management
Web management
Supports management through the Console port
Support Telnet remote management
Support DHCP-client
Supports SNMP v2c and RMON
Support H3C iMC intelligent network management system
Equipment maintenance
Support debugging information output
Support configuration file import and export
Support Syslog (System Log)
Support Ping
Support backup upgrade
Support VCT (Cable Diagnostics)

Full-speed Layer 2 switching

* Provides full-speed Layer 2 Gigabit switching, and all ports of the switch provide Layer 2 Gigabit wire-speed switching capabilities, ensuring that all ports forward packets without blocking.

Ample Gigabit fiber ports

* Provide 16 Gigabit SFP optical ports (100M / Gigabit self-adaptive) to realize 16-channel optical fiber long-distance high-speed connection.

Excellent safety performance

* Supports security functions such as 802.1x authentication, port and MAC address binding, MAC address flood attack, and AAA and Radius authentication.

Rich management methods

* Simple and convenient operation of the various functions of the switch through the web visual interface, while providing console port and Telnet command line configuration, and centralized network management of the device through SNMP network management tools, in addition to providing centralized authentication for management users Function, easy for equipment and user management and maintenance.
