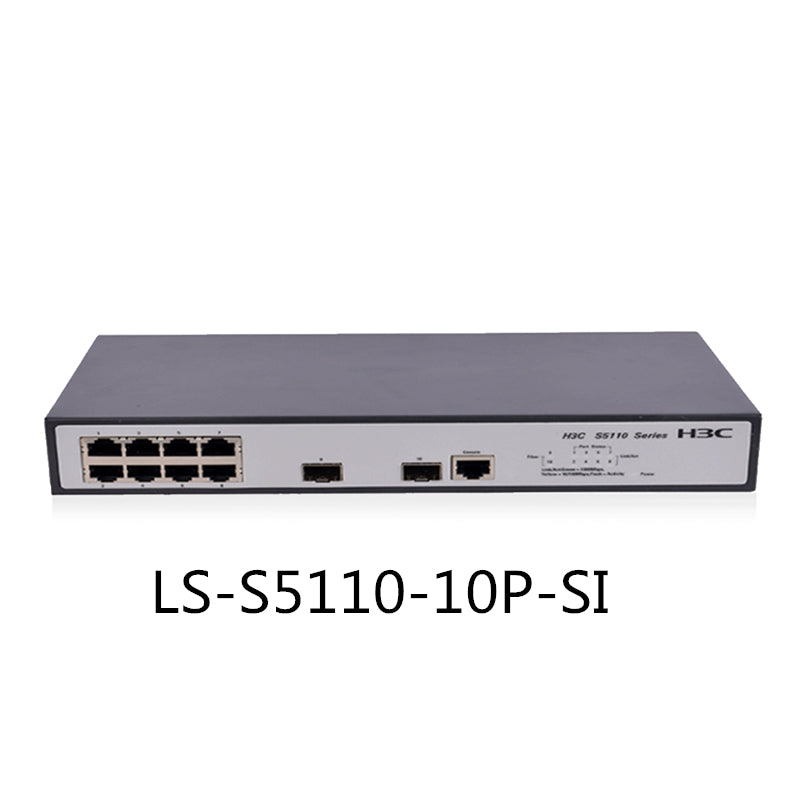

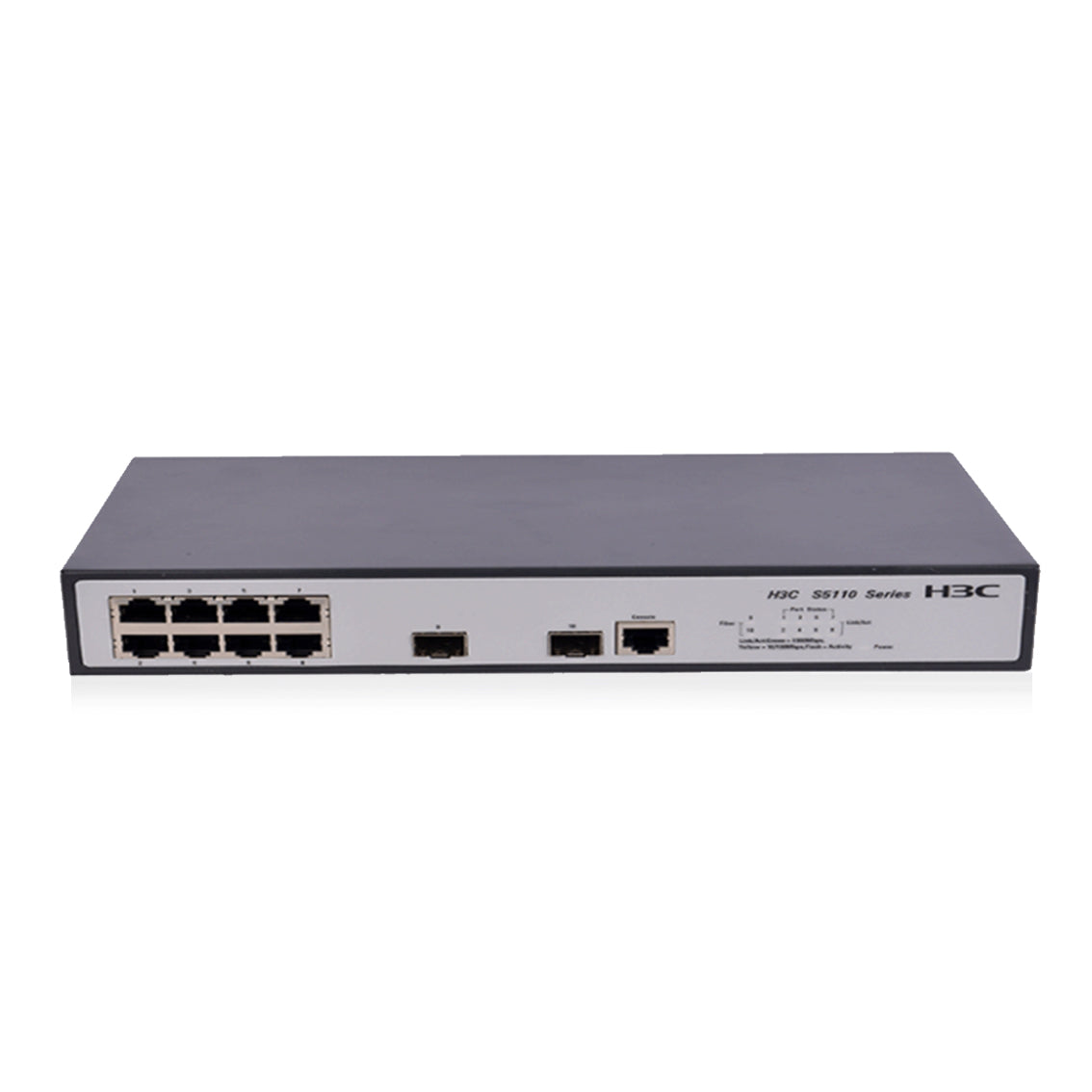

H3C S5110-10P-SI 8 port series green energy-saving Ethernet switch

Save 24%
SKU S5110-10P-SI

Quick Details:

Products Status:Stock

Ports:8 port

Transmission Rate:10/100/1000Mbps


Communication Mode:Full-Duplex


Switch Capacity:256Gbps

Brand Name:H3C

Model Number:S5110-10P-SI

Place of Origin:Guangdong, China


Dimensions (W x D x H):266*162*44mm

Packaging & Delivery:

Packaging Details:1.Anti-static bag for each hdd.
                               2.each goods use Foam buffer protect from friction
                               3.The goods be packed very well ,can ship to all over the world

Port:                      HongKong

Lead Time :


1 - 1


Est. Time(days)


To be negotiated

Product Description:

Exchange capacity
Packet forwarding rate
Management port
Fixed port
8 10/100/1000Base-T Ethernet ports
2 1000Base-X Ethernet ports
24 10/100/1000Base-T Ethernet ports
4 1000Base-X Ethernet ports
48 10/100/1000Base-T Ethernet ports
4 1000Base-X Ethernet ports
Port aggregation
Support LACP
Support manual aggregation
Supports up to 8 ports per aggregation group
Layer 2 ring network protocol
Support for port-based VLANs
Support for MAC-based VLANs
Support GVRP
Support DHCP Client
Support DHCP Relay
Support DHCP Snooping
Support DHCP Snooping Option82
IP routing
support static routing, RIP
Support IGMP Snooping and support fast leave
Support MLD Snooping
Support for multicast VLAN
Supports stacking of up to 32 devices
Support port mirroring
Support for flow mirroring
Support L2 ~ L4 packet filtering function, can match the first 80 bytes of the packet, providing source MAC address, destination
MAC address, source IP address, destination IP address, IP protocol type, TCP / UDP port, TCP / UDP port range , VLAN, etc. define
the ACL.
Supports port-based and VLAN-based ACLs.
Support for time range based ACLs
Support for hardware-based IPv6 ACLs and QoS
Support Diff-Serv QoS
8 output queues per port
Support 802.1p/DSCP priority mapping
Support queue scheduling mechanism
Support priority mark Mark/Remark
Support for stream-based packet filtering
Support for stream-based redirection
Support flow-based speed limit
User hierarchical management and password protection
Support Guest VLAN
Support IEEE 802.1X authentication / centralized MAC address authentication
Support AAA & RADIUS & HWTACACS authentication
Support MAC address learning limit
Support MAC address black hole
Support SSH 2.0 to provide secure encrypted channels for user login
Support SSL to ensure data transmission security
Support for HABP
Support port isolation
Support broadcast message suppression
Support primary and backup data backup mechanism
Supports IP+ port binding, IP+MAC binding, port+MAC binding, IP+MAC+ port binding, IP+MAC+port+VLAN binding
System Management
Support Console/AUX Modem/Telnet/SSH2.0 command line configuration
Support FTP, TFTP, Xmodem, SFTP file download management
Support SNMP V1/V2c/V3
Support RMON
Support NTP clock
Support system work log
Support for cluster management
Support H3C iMC Intelligent Management Center
Ambient temperature
Operating environment temperature: 0 ° C ~ 45 ° C
Storage environment temperature: -40 ° C ~ 70 ° C
environment humidity
Operating environment humidity: 5% to 95% (non-condensing)
Storage environment humidity: 5% to 95% (non-condensing)
Environmental protection
China RoHs,、EEE
Weight (full configuration)
≤ 1kg
≤ 2.2kg
≤ 3.4kg
Power consumption
≤ 9W
≤ 19W
≤ 32W
Input voltage
AC:100V~240V AC,50/60Hz
Dimensions (length × width × height) (unit: mm)

High performance and flexible expansion capabilities

The H3C S5110-SI series switches support line-speed forwarding on all ports to meet the high bandwidth requirements of users. The S5110-SI series switches support at least 2 or 4 ports of Gigabit uplinks, and the SFP ports can support 100 Mbps optical modules or Gigabit optical modules, which can reduce user costs and better consider subsequent upgrades. Actual demand. The H3C S5110-SI series switches support the stacking of 32 devices and the maximum expansion to 1664 100/1000M ports, supporting hybrid stacking of different port devices. With plug and play, single IP management. At the same time, the cost of system expansion is greatly reduced, and user investment is protected.

Enhanced multi-service capabilities

The H3C S5110-SI series switches support port rate limiting and traffic rate limiting to prevent malicious encroachment on network bandwidth and provide a means for fine-grained management of network bandwidth. The H3C S5110-SI series switches support a rich queue scheduling algorithm, which can put packets into the output queue of the port with different priorities. The H3C S5110-SI series switches support rich IPv6 management functions and support rich IPv6 service features.

Professional lightning protection

The H3C S5110-SI series switches adopt professional built-in lightning protection technology to support the lightning protection capability of the industry-leading 6KV service port, which can greatly reduce the damage rate of lightning strikes to equipment in the harsh working environment.

Green technology

The H3C S5110-SI series is a new generation of green energy-saving Ethernet switches of H3C. It adopts various green energy-saving designs, including auto-power-down. If the interface status is always down for a period of time, the system automatically stops. The interface is powered, automatically enters the energy-saving mode; supports one-button energy-saving mode, reduces energy consumption by controlling the indicator light on/off and port energy-saving status; supports EEE energy-saving function, if the port is idle for a continuous period of time, the system will The port is set to the energy-saving mode. When a packet is sent or received, the monitored stream is sent to the port to recover the service, which achieves the energy-saving effect and meets the EU RoHS standard for environmental protection and safety of materials.

Easy to use network management

The H3C S5110-SI series supports remote upgrade of devices through FTP and TFTP. It supports SNMP v1/v2/v3 and supports common network management platforms such as Open View and iMC intelligent management center. Support CLI command line, web network management, TELNET, making device management more convenient. And support encryption methods such as SSH2.0, making management more secure.

Three-tier function

The H3C S5110-SI series switches support simple Layer 3 functions, support static routing and RIP, and provide Layer 3 routing interfaces.
