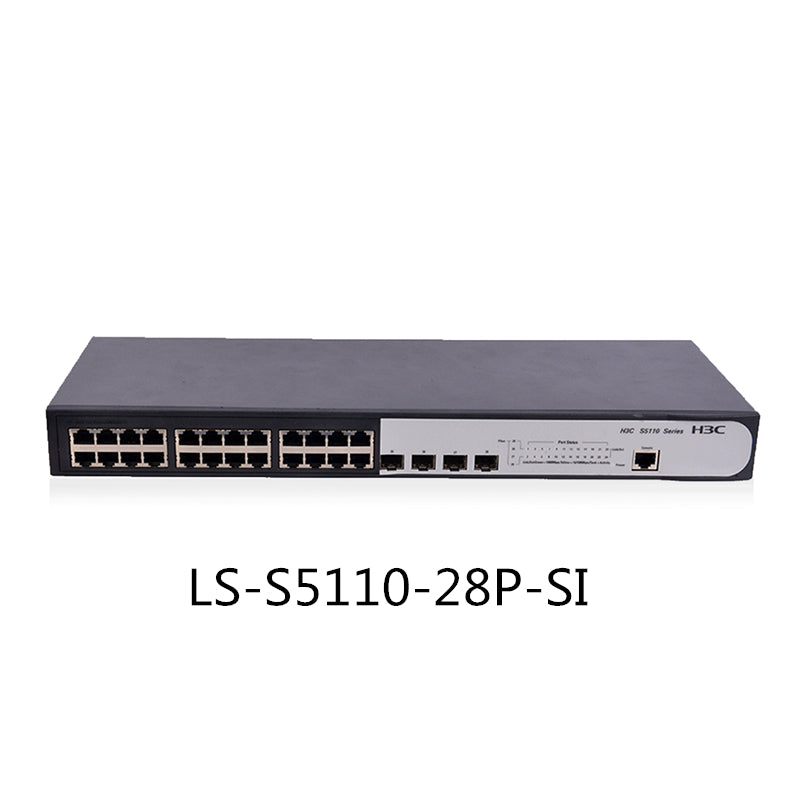

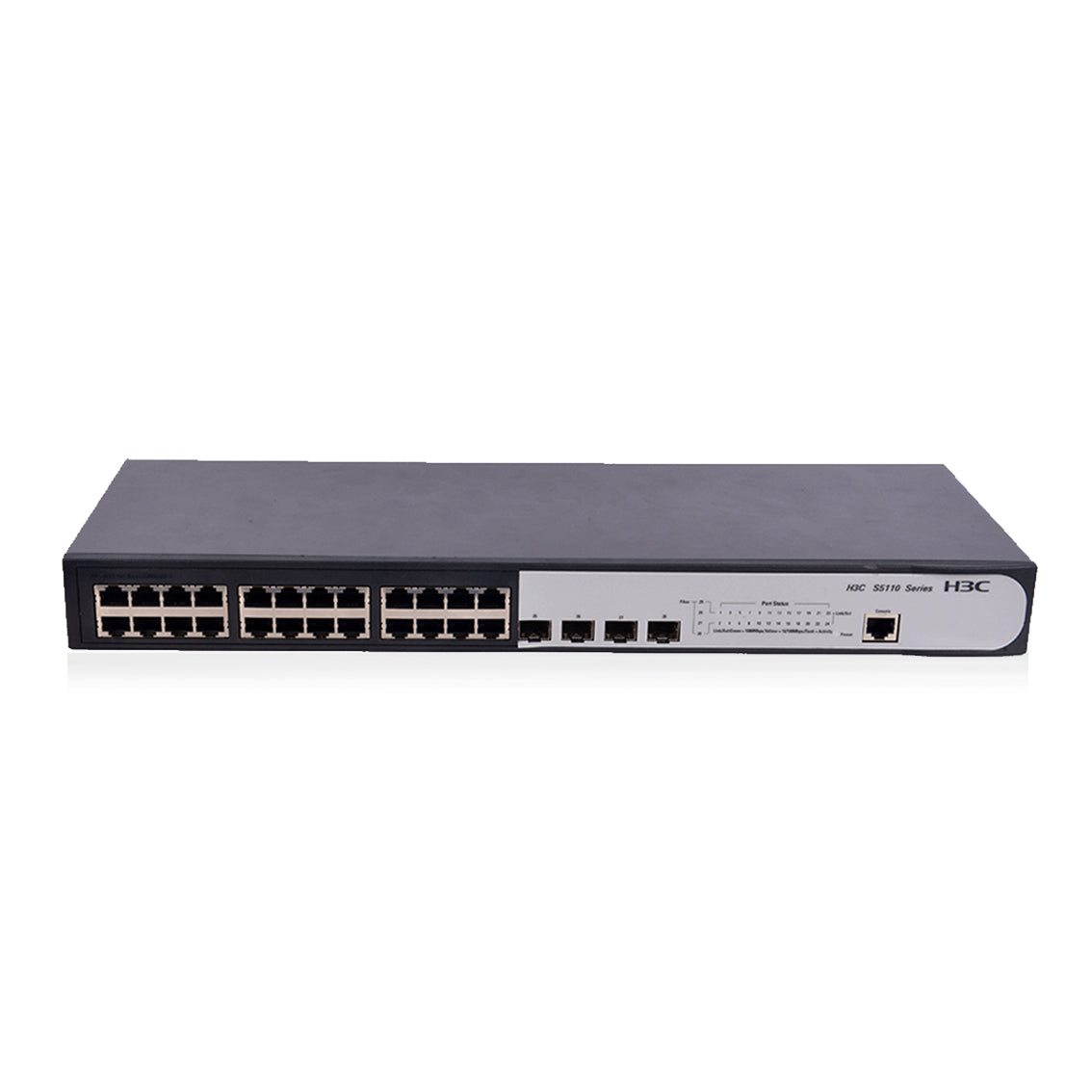

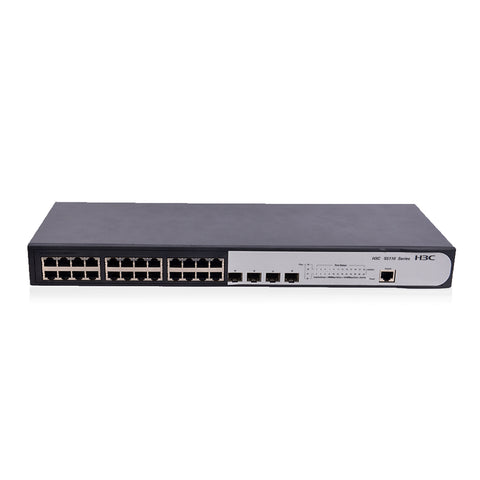

H3C S5110-28P-SI 24 Gigabit prot series green energy-saving Ethernet switch
Save 19%
$500.00
$407.00
SKU S5110-28P-SI
Quick Details:
Products Status:Stock
Ports:24 port
Transmission Rate:10/100/1000Mbps
Function:QoS
Communication Mode:Full-Duplex
Certification:RADIUS
Switch Capacity:256Gbps
Brand Name:H3C
Model Number:S5110-28P-SI
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*173*44mm
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
|
Features
|
S5110-10P-SI
|
S5110-28P-SI
|
S5110-52P-SI
|
|
Exchange capacity
|
256Gbps
|
||
|
Packet forwarding rate
|
17Mpps
|
66Mpps
|
102Mpps
|
|
Management port
|
1个Console口
|
||
|
Fixed port
|
8 10/100/1000Base-T Ethernet ports
2 1000Base-X Ethernet ports |
24 10/100/1000Base-T Ethernet ports
4 1000Base-X Ethernet ports |
48 10/100/1000Base-T Ethernet ports
4 1000Base-X Ethernet ports |
|
Port aggregation
|
Support LACP
Support manual aggregation Supports up to 8 ports per aggregation group |
||
|
Layer 2 ring network protocol
|
Support STP/RSTP/MSTP
|
||
|
VLAN
|
Support for port-based VLANs
Support for MAC-based VLANs Support GVRP Support GUEST VLAN |
||
|
DHCP
|
Support DHCP Client
Support DHCP Relay Support DHCP Snooping Support DHCP Snooping Option82 |
||
|
IP routing
|
support static routing, RIP
|
||
|
Multicast
|
Support IGMP Snooping and support fast leave
Support MLD Snooping Support for multicast VLAN |
||
|
Stacking
|
Supports stacking of up to 32 devices
|
||
|
Mirror
|
Support port mirroring
Support for flow mirroring |
||
|
ACL
|
Support L2 ~ L4 packet filtering function, can match the first 80 bytes of the packet, providing source MAC address, destination
MAC address, source IP address, destination IP address, IP protocol type, TCP / UDP port, TCP / UDP port range , VLAN, etc. define the ACL. Supports port-based and VLAN-based ACLs. Support for time range based ACLs Support for hardware-based IPv6 ACLs and QoS |
||
|
QoS
|
Support Diff-Serv QoS
8 output queues per port Support 802.1p/DSCP priority mapping Support queue scheduling mechanism Support priority mark Mark/Remark Support for stream-based packet filtering Support for stream-based redirection Support flow-based speed limit |
||
|
safety
|
User hierarchical management and password protection
Support Guest VLAN Support IEEE 802.1X authentication / centralized MAC address authentication Support AAA & RADIUS & HWTACACS authentication Support MAC address learning limit Support MAC address black hole Support SSH 2.0 to provide secure encrypted channels for user login Support SSL to ensure data transmission security Support for HABP Support port isolation Support broadcast message suppression Support primary and backup data backup mechanism Supports IP+ port binding, IP+MAC binding, port+MAC binding, IP+MAC+ port binding, IP+MAC+port+VLAN binding |
||
|
System Management
|
Support Console/AUX Modem/Telnet/SSH2.0 command line configuration
Support FTP, TFTP, Xmodem, SFTP file download management Support SNMP V1/V2c/V3 Support RMON Support NTP clock Support system work log Support for cluster management Support H3C iMC Intelligent Management Center |
||
|
Ambient temperature
|
Operating environment temperature: 0 ° C ~ 45 ° C
Storage environment temperature: -40 ° C ~ 70 ° C |
||
|
environment humidity
|
Operating environment humidity: 5% to 95% (non-condensing)
Storage environment humidity: 5% to 95% (non-condensing) |
||
|
Environmental protection
|
China RoHs,、EEE
|
||
|
Weight (full configuration)
|
≤ 1kg
|
≤ 2.2kg
|
≤ 3.4kg
|
|
Power consumption
|
≤ 9W
|
≤ 19W
|
≤ 32W
|
|
Input voltage
|
AC：100V～240V AC，50/60Hz
|
||
|
Dimensions (length × width × height) (unit: mm)
|
266×162×44
|
440×173×44
|
440×238×44
|
High performance and flexible expansion capabilities
The H3C S5110-SI series switches support line-speed forwarding on all ports to meet the high bandwidth requirements of users. The S5110-SI series switches support at least 2 or 4 ports of Gigabit uplinks, and the SFP ports can support 100 Mbps optical modules or Gigabit optical modules, which can reduce user costs and better consider subsequent upgrades. Actual demand. The H3C S5110-SI series switches support the stacking of 32 devices and the maximum expansion to 1664 100/1000M ports, supporting hybrid stacking of different port devices. With plug and play, single IP management. At the same time, the cost of system expansion is greatly reduced, and user investment is protected.
Enhanced multi-service capabilities
The H3C S5110-SI series switches support port rate limiting and traffic rate limiting to prevent malicious encroachment on network bandwidth and provide a means for fine-grained management of network bandwidth. The H3C S5110-SI series switches support a rich queue scheduling algorithm, which can put packets into the output queue of the port with different priorities. The H3C S5110-SI series switches support rich IPv6 management functions and support rich IPv6 service features.
Professional lightning protection
The H3C S5110-SI series switches adopt professional built-in lightning protection technology to support the lightning protection capability of the industry-leading 6KV service port, which can greatly reduce the damage rate of lightning strikes to equipment in the harsh working environment.
Green technology
The H3C S5110-SI series is a new generation of green energy-saving Ethernet switches of H3C. It adopts various green energy-saving designs, including auto-power-down. If the interface status is always down for a period of time, the system automatically stops. The interface is powered, automatically enters the energy-saving mode; supports one-button energy-saving mode, reduces energy consumption by controlling the indicator light on/off and port energy-saving status; supports EEE energy-saving function, if the port is idle for a continuous period of time, the system will The port is set to the energy-saving mode. When a packet is sent or received, the monitored stream is sent to the port to recover the service, which achieves the energy-saving effect and meets the EU RoHS standard for environmental protection and safety of materials.
Easy to use network management
The H3C S5110-SI series supports remote upgrade of devices through FTP and TFTP. It supports SNMP v1/v2/v3 and supports common network management platforms such as Open View and iMC intelligent management center. Support CLI command line, web network management, TELNET, making device management more convenient. And support encryption methods such as SSH2.0, making management more secure.
Three-tier function
The H3C S5110-SI series switches support simple Layer 3 functions, support static routing and RIP, and provide Layer 3 routing interfaces.
