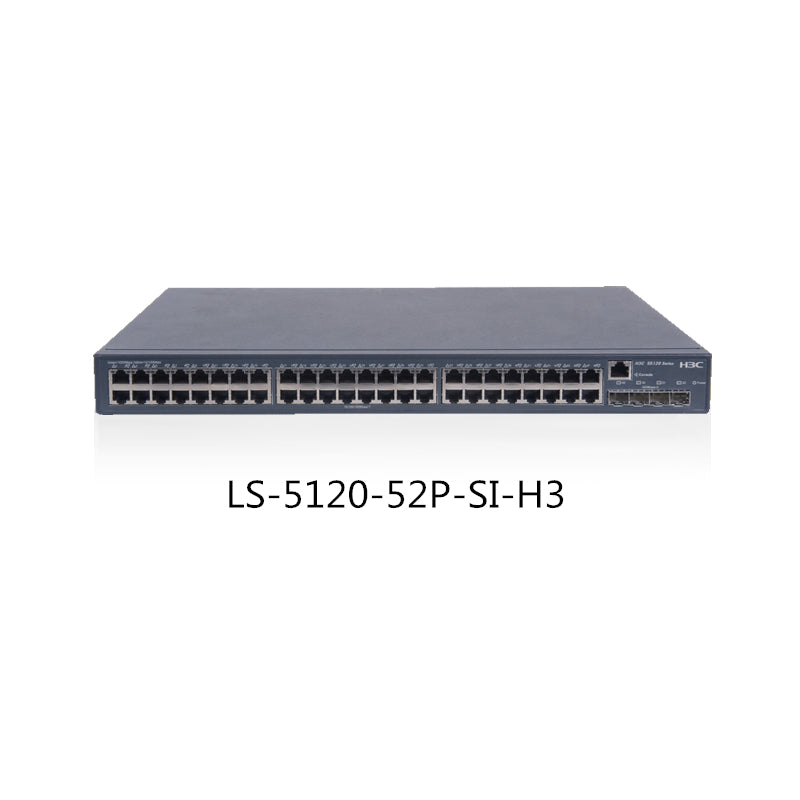

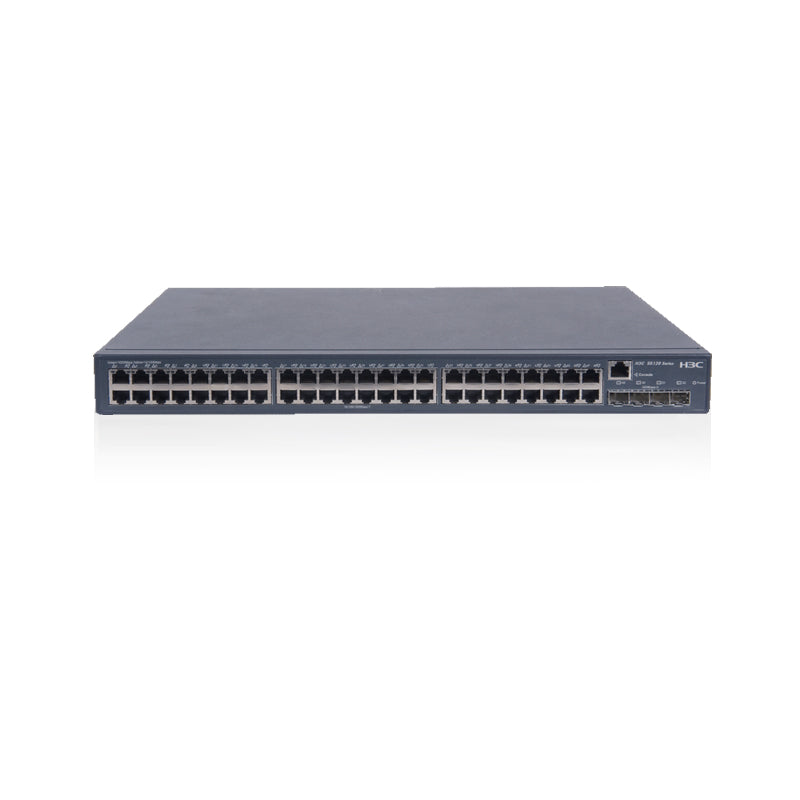

H3C S5120-52P-SI 48-port Gigabit switch 4 Gigabit SFP upstream optical port Layer 2 network management enterprise access switch
Save 10%
$1,500.00
$1,350.00
SKU LS-5120-52P-SI-H3
Quick Details:
Products Status:Stock
Ports:≥ 48
Transmission Rate:10/100/1000Mbps
Function:QoS
Communication Mode:Full-Duplex
Certification:RADIUS
Switch Capacity:256Gbps
Brand Name:H3C
Model Number:LS-5120-52P-SI-H3
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*260*43.6
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
|
Support features
|
S5120-9P-SI
|
S5120-20P-SI
|
S5120-28P-SI
|
S5120-52P-SI
|
|
Dimensions (length × width × height)
(Unit: mm) |
210×210×43.6
|
440×160×43.6
|
440×160×43.6
|
440×260×43.6
|
|
weight
|
≤2kg
|
<3kg
|
<3kg
|
<5kg
|
|
Management port
|
1 console port
|
|||
|
Service port
description |
8 10/100/1000
Base-T Ethernet port, 1 1000Base-XSFP Gigabit Ethernet port |
16
10/100/1000 Base-T Ethernet port, 4 1000Base-X SFP Gigabit Ethernet ports |
24 10/100/1000 Base-T Ethernet ports,
4 1000Base-X SFP Gigabit Ethernet ports |
48 10/100/1000 Base-T Ethernet ports,
4 1000Base-X SFP Gigabit Ethernet ports |
|
Exchange capacity
(full duplex) |
256Gbps
|
|||
|
Packet forwarding
rate (machine) |
15.75Mpps
|
39Mpps
|
51Mpps
|
87Mpps
|
|
Port aggregation
|
Support LACP link aggregation
|
|||
|
port
|
Support IEEE 802.3x flow control (full duplex)
Supports storm suppression based on port rate percentage Supports storm suppression based on port rate percentage, pps and bps |
|||
|
VLAN
|
Support for port-based VLANs (4K)
|
|||
|
DHCP
|
Support DHCP Server
Support DHCP Relay Support DHCP Client Support DHCP Snooping Support DHCP Snooping Option82 |
|||
|
IRF2
|
Support IRF2 intelligent flexible architecture
Support distributed device management, distributed link aggregation Support for stacking via standard Ethernet interfaces Support local stacking and remote stacking |
|||
|
IP routing
|
Supports IPv4 and IPv6 Layer 3 routing
Support RIP |
|||
|
Multicast
|
Support IGMP Snoopingv1/v2/v3, MLD Snooping
Support for multicast VLAN |
|||
|
Spanning tree
|
Support STP/RSTP/MSTP protocol
|
|||
|
ACL
|
Supports ACLs based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port
number, protocol type, VLAN, etc. Support for time-based ACLs Supports sending ACLs based on global, VLAN, and port (group) Support for hardware-based IPv6 ACLs |
|||
|
QoS
|
Support IEEE 802.1p/DSCP priority
Support priority mapping Support port trust mode Support port queue scheduling (SP/WRR/SP+WRR) |
|||
|
Mirror
|
Support port mirroring, support remote mirroring
|
|||
|
Safety features
|
Support user hierarchical management and password protection
Support Radius certification Support for SSH 2.0 Support 802.1X, centralized MAC address authentication Support Guest VLAN Support port isolation Support port security Support MAC address learning limit Support IP source address protection Support ARP intrusion detection Support IP+MAC+ port binding Support EAD Support for Triple authentication |
|||
|
Management and
maintenance |
Support XModem/FTP/TFTP load upgrade
Supports command line interface (CLI), Telnet, and console port configuration. Support SNMP, WEB network management Support RMON (Remote Monitoring) Support iMC Intelligent Management Center Support system log, hierarchical alarm, debugging information output Support HGMPv2 Support Modem remote dialing Support NTP Support Ping, Tracert Support Telnet remote maintenance Support VCT (Virtual Cable Test) cable detection function Support loopback-detection port loopback detection |
|||
|
Input voltage
|
Rated voltage range: 100V ~ 240V AC; 50/60Hz
Maximum voltage range: 90V ~ 264V AC; 47/63Hz |
|||
|
Power consumption
(at full load) |
14.4W
|
25.1W
|
31.5W
|
59.8W
|
|
PoE+ output power
|
NA
|
65W
|
||
|
Working temperature
|
0℃～45℃
|
|||
|
Working environment relative humidity
(non-condensing) |
10%～90%
|
|||
|
Support features
|
S5120-9P-PWR-SI
|
S5120-9P-HPWR-SI
|
S5120-28P-PWR-SI
|
S5120-28P-HPWR-SI
|
|
Dimensions (length × width × height)
(Unit: mm) |
300×260×43.6
|
300×260×43.6
|
440×420×43.6
|
440×420×43.6
|
|
weight
|
<3kg
|
<3kg
|
<7kg
|
<7kg
|
|
Management port
|
1 console port
|
|||
|
Service port
description |
8 10/100/1000
Base-T Ethernet port, 1 1000Base-XSFP Gigabit Ethernet port |
8 10/100/1000
Base-T Ethernet port, 1 1000Base-XSFP Gigabit Ethernet port |
24 10/100/1000 Base-T Ethernet ports (PoE), 4 1000Base-X SFP Gigabit Ethernet ports
|
24 10/100/1000 Base-T Ethernet ports (PoE),
4 1000Base-X SFP Gigabit Ethernet ports |
|
Exchange capacity
(full duplex) |
256Gbps
|
|||
|
Packet forwarding
rate (machine) |
15.75Mpps
|
15.75Mpps
|
51Mpps
|
51Mpps
|
|
Port aggregation
|
Support LACP link aggregation
|
|||
|
port
|
Support IEEE 802.3x flow control (full duplex)
Supports storm suppression based on port rate percentage Supports storm suppression based on port rate percentage, pps and bps |
|||
|
VLAN
|
Support for port-based VLANs (4K)
|
|||
|
DHCP
|
Support DHCP Server
Support DHCP Relay Support DHCP Client Support DHCP Snooping Support DHCP Snooping Option82 |
|||
|
IRF2
|
Support IRF2 intelligent flexible architecture
Support distributed device management, distributed link aggregation Support for stacking via standard Ethernet interfaces Support local stacking and remote stacking |
|||
|
IP routing
|
Supports IPv4 and IPv6 Layer 3 routing
Support RIP |
|||
|
Multicast
|
Support IGMP Snoopingv1/v2/v3, MLD Snooping
Support for multicast VLAN |
|||
|
Spanning tree
|
Support STP/RSTP/MSTP protocol
|
|||
|
ACL
|
Supports ACLs based on source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port
number, protocol type, VLAN, etc. Support for time-based ACLs Supports sending ACLs based on global, VLAN, and port (group) Support for hardware-based IPv6 ACLs |
|||
|
QoS
|
Support IEEE 802.1p/DSCP priority
Support priority mapping Support port trust mode Support port queue scheduling (SP/WRR/SP+WRR) |
|||
|
Mirror
|
Support port mirroring, support remote mirroring
|
|||
|
Safety features
|
Support user hierarchical management and password protection
Support Radius certification Support for SSH 2.0 Support 802.1X, centralized MAC address authentication Support Guest VLAN Support port isolation Support port security Support MAC address learning limit Support IP source address protection Support ARP intrusion detection Support IP+MAC+ port binding Support EAD Support for Triple authentication |
|||
|
Management and
maintenance |
Support XModem/FTP/TFTP load upgrade
Supports command line interface (CLI), Telnet, and console port configuration. Support SNMP, WEB network management Support RMON (Remote Monitoring) Support iMC Intelligent Management Center Support system log, hierarchical alarm, debugging information output Support HGMPv2 Support Modem remote dialing Support NTP Support Ping, Tracert Support Telnet remote maintenance Support VCT (Virtual Cable Test) cable detection function Support loopback-detection port loopback detection |
|||
|
Input voltage
|
Rated voltage range: 100V ~ 240V AC; 50/60Hz
Maximum voltage range: 90V ~ 264V AC; 47/63Hz |
|||
|
Power consumption
(at full load) |
93W
|
228W
|
255W
|
AC input:523W
DC input:832W |
|
PoE+ output power
|
65W
|
180W
|
170W
|
AC input:370W
DC input:740W |
|
Working temperature
|
0℃～45℃
|
|||
|
Working environment relative humidity
(non-condensing) |
10%～90%
|
|||
