Quick Details

• Products Status:Stock

• Ports:≥ 24

• Transmission Rate:10/100/1000Mbps

• Function:QoS, VLAN Support

• Communication Mode:Full-Duplex

• Certification:RADIUS

• Switch Capacity:598Gbps

• Brand Name:H3C

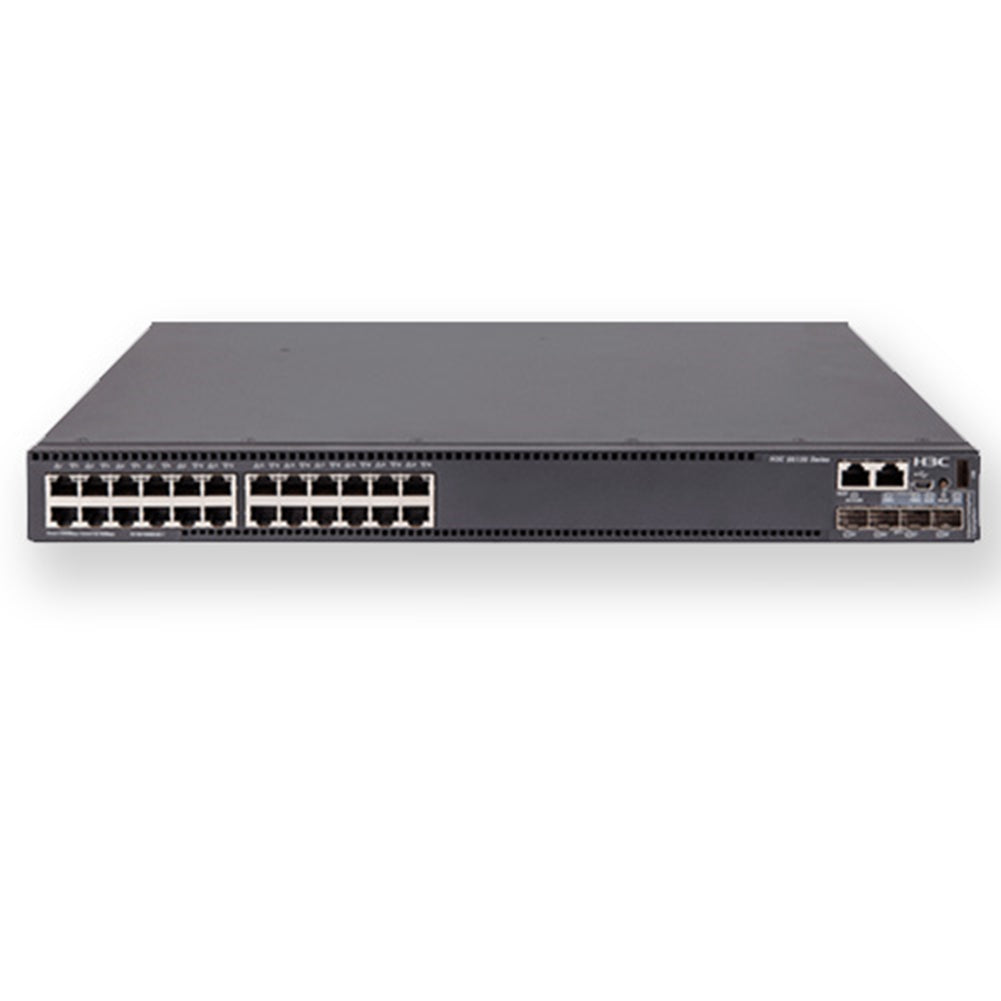

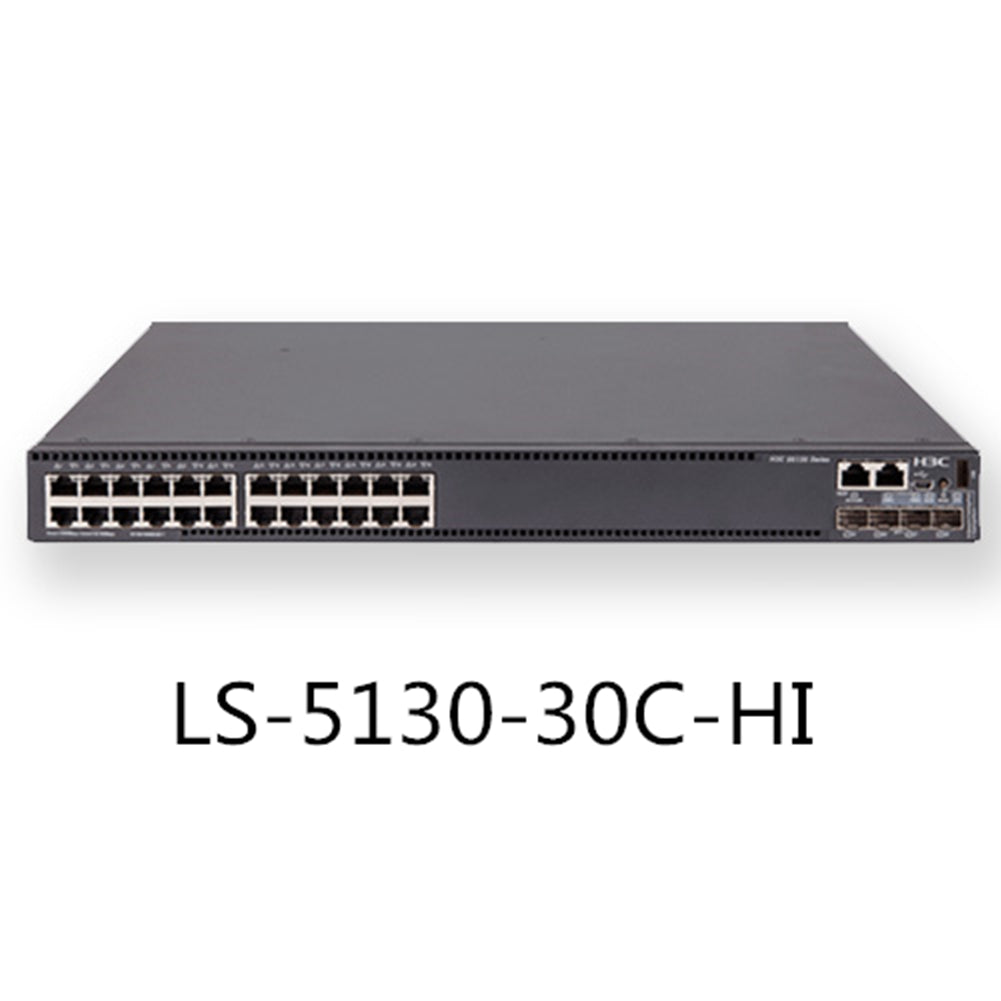

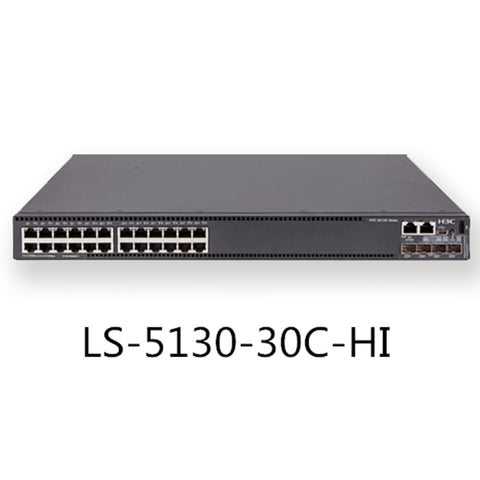

• Model Number:LS-S5130-30C-HI

• Place of Origin:Guangdong, China

• Warranty:1year

• Dimensions (W x D x H):440×360×43.6mm

Packaging & Delivery:

Packaging Details:

1.Anti-static bag for each hdd.

2.each goods use Foam buffer protect from friction

3.The goods be packed very well ,can ship to all over the world

Port:

HongKong

Lead Time :

Quantity(Pieces)	1 - 1	>1
Est. Time(days)	30	To be negotiated

Product Description:

Support features	S5130-54QS-HI	S5130-30C-HI	S5130-34C-HI	S5130-54C-HI
Exchange capacity	598Gbps/5.98Tbps
Packet forwarding rate	252Mpps	216Mpps	222Mpps	252Mpps
Dimensions (width × depth × height) (unit: mm)	440×260×43.6	440×360×43.6	440×360×43.6	440×360×43.6
weight	≤5kg
Front panel service  port description	48 10/100/1000 Base-T adaptive Ethernet port,  4 10 Gigabit SFP+ ports, 2 QSFP+ stack ports	24 10/100/1000 Base-T adaptive  Ethernet port,  4 10 Gigabit  SFP+ ports	28 10/100/1000 Base-T adaptive  Ethernet port, 8 cobo, 4 10 Gigabit  SFP+ ports	48 10/100/1000 Base-T adaptive Ethernet port, 4 10 Gigabit SFP+ ports
Expansion slot	no	1
Expansion board	no	2-port 10 Gigabit SFP+ interface card
		2-port 10 Gigabit electrical interface board
		2-port QSFP+ stack interface board
MAC address	32k
SDN/Openflow	Support OpenFlow 1.3 standard
	Support multiple controllers (EQUAL mode, active/standby mode)
	Support multi-table pipeline
	Support Group table
	Support Meter
Port aggregation	Support GE port aggregation
	Support 10GE port aggregation
	Support static aggregation
	Support dynamic aggregation
	Support cross-device aggregation
Port characteristics	Support IEEE802.3x flow control (full duplex)
	Supports storm suppression based on port rate percentage
	Support PPS-based storm suppression
	Support bps-based storm suppression
MAC address table	Support black hole MAC address
	Supports setting the maximum number of port MAC addresses.
VLAN	Support for port-based VLANs
	Support for MAC-based VLANs
	Protocol-based VLAN
	IP subnet-based VLAN
	Support QinQ, flexible QinQ
	Support VLAN mapping
	Support for Voice VLAN
	Support GVRP
Layer 2 ring  network protocol	Support STP/RSTP/MSTP
	Support SmartLink
	Support RRPP
	Support ERPS Ethernet Ring Protection Protocol (G.8032)
DHCP	DHCP Client
	DHCP Snooping
	DHCP Relay
	DHCP Server
	DHCP Snooping option82/DHCP Relay option82
IRF2 intelligent  flexible architecture	Support IRF2 intelligent flexible architecture
	Support distributed device management, distributed link aggregation, distributed elastic routing
	Support stacking through standard Ethernet interfaces, etc.
	Support local stacking and remote stacking
routing	Support IPv4/IPv6 static routing
	Support RIPv1/v2, RIPng
	Support OSPFv1/v2, OSPFv3
	Support BGP4, BGP4+ for IPv6
	Support for ISIS/ISISv6
	Support equal cost routing, policy routing
	Support VRRP/VRRPv3
Multicast	Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2
	Support PIM Snooping
	Support MLD Proxy
	Support for multicast VLAN
	Support PIM SM PIM DM
	Support MSDP
	Support for two-way PIM
Mirror	Support for flow mirroring
	Support N: 4 port mirroring
	Support for local and remote port mirroring
OAM	Support 802.1ag
	Support 802.3ah
Support ACL\QoS	Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, providing source MAC address, destination MAC address, source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, VLAN traffic classification
	Support Time Range ACL
	Supports two-way ACL policies in the inbound and outbound directions
	Supports sending ACLs based on VLANs.
	Limits the rate at which packets are received on the port  and the rate at which packets are sent. The minimum granularity is 8 Kbps.
	Support packet redirection
	Supports 802.1p and DSCP priority re-marking of packets
	Support CAR (Committed Access Rate) function
	Each port supports 8 output queues, and the CPU port supports 48 queues.
	Supports flexible queue scheduling algorithms, which can be set based on ports and queues simultaneously. It supports five modes: SP, WRR, WFQ, SP+WRR, and WDRR.
	Support WRED
Safety features	Support user hierarchical management and password protection
	Support 802.1X authentication/centralized MAC address authentication
	Support Guest VLAN
	Support RADIUS authentication
	Support for SSH 2.0
	Support port isolation
	Support port security
	Support PORTAL certification
	Support EAD
	DHCP snooping can be supported to prevent fraudulent DHCP servers
	Support dynamic ARP detection to prevent man-in-the-middle attacks and ARP denial of service
	Support BPDU guard, Root guard
	Support uRPF (unicast reverse path detection), eliminate IP source address spoofing, prevent viruses and attacks
	Support IP/Port/MAC binding function
	Support MD5 cipher text authentication
	Support PKI (Public Key Infrastructure)
	Support CPU protection
Management and  maintenance	Support XModem/FTP/TFTP load upgrade
	Supports command line interface (CLI), Telnet, and console port configuration.
	Support SNMPv1/v2/v3, WEB network management
	Support RMON (Remote Monitoring) alarms, events, history
	Support iMC Intelligent Management Center
	Support system log, hierarchical alarm, debugging information output
	Support NTP
	Support power supply alarm function, temperature alarm
	Support Ping, Tracert
	Support VCT (Virtual Cable Test) cable detection function
	Supports the Device Link Detection Protocol (DLDP)  unidirectional link detection protocol.
	Support LLDP
	Support loopback-detection port loopback detection
green technology	Support EEE (802.3az)
	Port automatic power down function
	Port timing down function (Schedule job)
Input voltage	Non-PoE type input power supply: AC: rated voltage range: 100V ~ 240V AC, 50/60Hz DC: Input rated voltage range -36V to -72V DC
	PoE type input power supply: 360W AC: 100V~240V, 50Hz~60Hz 720W AC: 100V~240V, 50Hz~60Hz 1110W AC: 115V ~ 240V, 50Hz ~ 60Hz
Power consumption  (static)	SingleAC：58W	Single AC:37W	Single AC:37W	Single AC:45W
	DC：62W	DC:37W	DC:37W	DC:47W
	DualAC：63W	Dual AC:42W	Dual AC:42W	Dual AC:50W
	DC：67W	DC:42W	DC:42W	DC:54W
Power consumption  (at full load)	Single AC:90W	Single AC:72W	Single AC:72W	Single AC:83W
	Single DC:92W	Single DC:74W	Single DC:74W	Single DC:84W
	Dual AC：94W	Dual AC:77W	Dual AC:77W	Dual AC:88W
	Dual DC：100W	Dula DC:80W	Dula DC:80W	Dual DC:93W
Working temperature	0°C～45°C
Working environment relative humidity (non-condensing)	5% to 95%

Support features	S5130-30F-HI	S5130-30C-PWR-HI	S5130-54C-PWR-HI
Exchange capacity	598Gbps/5.98Tbps
Packet forwarding rate	216Mpps	216Mpps	252Mpps
Dimensions (width × depth × height) (unit: mm)	440×360×43.6	440×460×43.6	440×460×43.6
weight	≤5kg	≤10kg	≤10.5kg
Front panel service  port description	24 100/1000 Base-X SFP optical port, 8 multiplexed 10/100/1000Base-T Ethernet ports, 4 10 Gigabit SFP+ ports	24 10/100/1000 Base-T adaptive Ethernet port (PoE+), 4 10 Gigabit SFP+ ports	48 10/100/1000 Base-T adaptive Ethernet port (PoE+), 4 10 Gigabit SFP+ ports
Expansion slot	1
Expansion board	2-port 10 Gigabit SFP+ interface card
	2-port 10 Gigabit electrical interface board
	2-port QSFP+ stack interface board
MAC address	32k
SDN/Openflow	Support OpenFlow 1.3 standard
	Support multiple controllers (EQUAL mode, active/standby mode)
	Support multi-table pipeline
	Support Group table
	Support Meter
Port aggregation	Support GE port aggregation
	Support 10GE port aggregation
	Support static aggregation
	Support dynamic aggregation
	Support cross-device aggregation
Port characteristics	Support IEEE802.3x flow control (full duplex)
	Supports storm suppression based on port rate percentage
	Support PPS-based storm suppression
	Support bps-based storm suppression
MAC address table	Support black hole MAC address
	Supports setting the maximum number of port MAC addresses.
VLAN	Support for port-based VLANs
	Support for MAC-based VLANs
	Protocol-based VLAN
	IP subnet-based VLAN
	Support QinQ, flexible QinQ
	Support VLAN mapping
	Support for Voice VLAN
	Support GVRP
Layer 2 ring  network protocol	Support STP/RSTP/MSTP
	Support SmartLink
	Support RRPP
	Support ERPS Ethernet Ring Protection Protocol (G.8032)
DHCP	DHCP Client
	DHCP Snooping
	DHCP Relay
	DHCP Server
	DHCP Snooping option82/DHCP Relay option82
IRF2 intelligent  flexible architecture	Support IRF2 intelligent flexible architecture
	Support distributed device management, distributed link aggregation, distributed elastic routing
	Support stacking through standard Ethernet interfaces, etc.
	Support local stacking and remote stacking
routing	Support IPv4/IPv6 static routing
	Support RIPv1/v2, RIPng
	Support OSPFv1/v2, OSPFv3
	Support BGP4, BGP4+ for IPv6
	Support for ISIS/ISISv6
	Support equal cost routing, policy routing
	Support VRRP/VRRPv3
Multicast	Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2
	Support PIM Snooping
	Support MLD Proxy
	Support for multicast VLAN
	Support PIM SM PIM DM
	Support MSDP
	Support for two-way PIM
Mirror	Support for flow mirroring
	Support N: 4 port mirroring
	Support for local and remote port mirroring
OAM	Support 802.1ag
	Support 802.3ah
Support ACL\QoS	Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, providing source MAC address, destination MAC address,  source IP (IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, VLAN traffic classification
	Support Time Range ACL
	Supports two-way ACL policies in the inbound and outbound directions
	Supports sending ACLs based on VLANs.
	Limits the rate at which packets are received on the port and  the rate at which packets are sent. The minimum granularity is 8 Kbps.
	Support packet redirection
	Supports 802.1p and DSCP priority re-marking of packets
	Support CAR (Committed Access Rate) function
	Each port supports 8 output queues, and the CPU port supports 48 queues.
	Supports flexible queue scheduling algorithms, which can be set based on ports and queues simultaneously. It supports five modes: SP, WRR, WFQ, SP+WRR, and WDRR.
	Support WRED
Safety features	Support user hierarchical management and password protection
	Support 802.1X authentication/centralized MAC address authentication
	Support Guest VLAN
	Support RADIUS authentication
	Support for SSH 2.0
	Support port isolation
	Support port security
	Support PORTAL certification
	Support EAD
	DHCP snooping can be supported to prevent fraudulent DHCP servers
	Support dynamic ARP detection to prevent man-in-the-middle attacks and ARP denial of service
	Support BPDU guard, Root guard
	Support uRPF (unicast reverse path detection), eliminate IP source address spoofing, prevent viruses and attacks
	Support IP/Port/MAC binding function
	Support MD5 cipher text authentication
	Support PKI (Public Key Infrastructure)
	Support CPU protection
Management and  maintenance	Support XModem/FTP/TFTP load upgrade
	Supports command line interface (CLI), Telnet,  and console port configuration.
	Support SNMPv1/v2/v3, WEB network management
	Support RMON (Remote Monitoring) alarms, events, history
	Support iMC Intelligent Management Center
	Support system log, hierarchical alarm, debugging information output
	Support NTP
	Support power supply alarm function, temperature alarm
	Support Ping, Tracert
	Support VCT (Virtual Cable Test) cable detection function
	Supports the Device Link Detection Protocol (DLDP)  unidirectional link detection protocol.
	Support LLDP
	Support loopback-detection port loopback detection
green technology	Support EEE (802.3az)
	Port automatic power down function
	Port timing down function (Schedule job)
Input voltage	Non-PoE type input power supply: AC: rated voltage range: 100V ~ 240V AC, 50/60Hz DC: Input rated voltage range -36V to -72V DC
	PoE type input power supply: 360W AC: 100V~240V, 50Hz~60Hz 720W AC: 100V~240V, 50Hz~60Hz 1110W AC: 115V ~ 240V, 50Hz ~ 60Hz
Power consumption  (static)	SingleAC：34W	Single：AC:44W DC：55W	Single：AC:53W DC：60W
	DC：35W
	DualAC：39W	Dual：AC：53W DC：73W	Dual：AC：61W DC：79W
	DC：42W
Power consumption  (at full load)	SingleAC：68W	AC: 1000W (including 740W PoE output) Single 560W: 420W (PoE is 360W) Double 560W: 910W (PoE is 810W)	AC 1800W (including 1440W PoE output) Single 560W: 420W (PoE is 360W) Double 560W: 910W (PoE is 810W)
	SingleDC：69W
	Dual DC：73W
	Dual DC：78W
Working temperature	0°C～45°C
Working environment relative humidity (non-condensing)	5% to 95%

MACsec hardware encryption

Macsec is a link layer security protocol for Hop by Hop that is very suitable for Ethernet. It implements the following three functions:

1) Message Encryption: The encryption text and the key are used to change the plaintext into garbled ciphertext, which is difficult to decrypt even if it is eavesdropped.

2) Anti-replay attack: Prevents hackers from intercepting the packets received by the destination host and sending them to the destination host again to achieve the purpose of deceiving the destination host, such as identity authentication.

3) Anti-tampering: Prevent hackers from tampering with the original message content to achieve ulterior motives.

Macsec implementation is divided into two modes:

1) Host-oriented mode: The first hop protection for the terminal to access the network.

2) Device-oriented mode: protection of interconnected links between user equipments.

H3C S5130-HI series switch hardware integrates MACsec security encryption function, and combines our inode smart client and core switch (S10500, S75E) to build a complete MACsec solution;

SmartMC (Intelligent Management Center)

* As the size of the network increases, the network edge needs to use a large number of access devices, which makes the management of these devices very cumbersome. The main purpose of SmartMC is to solve the centralized management problem of a large number of distributed network devices. It is designed to solve the operation and maintenance tasks of small enterprises based on switches. SmartMC realizes unified operation and maintenance and management of the network by means of built-in and graphical operation of the device.

SmartMC's four business segments simplify the operation and management of small and medium-sized parks:

* `Intelligent management:

It mainly includes device role selection, FTP server configuration, global configuration, and network management port configuration.

* Intelligent operation and maintenance:

Mainly includes group management, device or group upgrade backup, monitoring and equipment failure replacement, etc.

* Visualization:

It mainly includes network topology visualization and management, device list display, etc.

* Intelligent business:

It mainly includes user management, etc.: After the network access class users are created and successfully activated, these users can access the inside of the SmartMC network through the one-button arm.

* The H3C S5130-HI series switches can be used as the management device of the SmartMC. You can manage the entire network by logging in to the SmartMC network through the S5130-HI.

* The H3C S5130-HI series switch can also be used as a managed device of the SmartMC. It can be easily connected to the SmartMC network as a managed device.

Open multi-service architecture (OAP card)

The H3C S5130-HI series switches are based on the H3C Open Service Architecture (OAA). They not only provide the functions of traditional switches, but also integrate high-performance OAP module cards including FW, IPS, and load balancing to make the S5130HI switch a converged. Multi-service hosting platform.

High-performance IPv4/IPv6 service capabilities

The H3C S5130-HI series switches implement a hardware-based IPv4/IPv6 dual-stack platform, rich IPv4 and IPv6 Layer 3 routing protocols, multicast technologies, and policy-based routing mechanisms to provide users with a complete IPv4/IPv6 solution.

IRF2 (Second Generation Intelligent Resilient Architecture)

The H3C S5130-HI series switches support IRF2 (second-generation intelligent elastic architecture) technology, which connects multiple physical devices to each other and makes them virtual as a logical device. That is, users can view these multiple devices as one. A single device is managed and used. IRF can bring the following benefits to users:

* After simplifying the management of the IRF architecture, you can connect to any port of any device to log in to a unified logical device, and manage the entire intelligent elastic system and all member devices in the system by configuring a single device. They are configured and managed separately without physically connecting to each member device.

* The various control protocols running in the logical device formed by the simplified service IRF are also operated as a single device. For example, the routing protocol is uniformly calculated as a single device, and the application of the cross-device link aggregation technology can replace the original one. The spanning tree protocol eliminates the interaction of a large number of protocol packets between devices, simplifies network operations, and shortens the convergence time during network turbulence.

* Flexible expansion It can be flexibly expanded according to user needs to ensure user investment. The newly added device can be hot swapped when it joins or leaves the IRF architecture, and does not affect the normal operation of other devices.

* High reliability The high reliability of IRF is reflected in three aspects: link, device and protocol. The physical port of the member device supports the aggregation function. The physical connection between the IRF system and the upper and lower devices also supports the aggregation function. This improves the reliability of the link through multi-link backup. The IRF system consists of multiple member devices. Once the master device fails, the system will automatically elect a new master to ensure that the service through the system is not interrupted, thus achieving device-level 1:N backup; the IRF system will have real-time protocol hot backup function responsible for the configuration information of the protocol. Back up to all other member devices to achieve 1:N protocol reliability.

* High performance For high-end switches, performance and port density increases are limited by the hardware architecture. The performance and port density of the IRF system is the sum of the performance and port count of all devices within the IRF. Therefore, the IRF technology can easily increase the switching capacity of the device and the density of the user port by several times, thereby greatly improving the performance of the device.

IRF3 (vertical virtualization)

The H3C S5130-HI series switches support the IRF3 (Intelligent Resilient Framework 3) vertical virtualization technology. By adding the access device as a remote interface card to the primary device system, the core device and the access layer device are virtualized in the vertical dimension. A logical device to achieve extended I/O port capabilities and centralized control management. IRF3 technology can simplify management, greatly reduce network management nodes; simplify wiring and compression network hierarchy, and finally realize data forwarding plane virtualization. IRF3 vertical virtualization technology can bring the following benefits to users:

* Unified management: After the IRF3 architecture is formed, connecting to the master device can centrally configure and manage all members of the architecture without physically connecting to each member device for separate configuration.

* Unified security policy: The security policy of the entire network only needs to be configured on the primary device, which avoids potential policy conflicts caused by configuring the entire network device one by one, and greatly reduces the workload of security deployment.

* Simplify the network level: support the large-scale remote interface board expansion capability. The traditional network architecture that requires a three-layer network architecture can be simplified to Layer 2 networking through IRF3. The physical and logical layers of the network are simplified and the wiring is simpler.

* Simplified service: The various service configurations in the IRF3 architecture are configured based on a single logical device, which greatly simplifies the planning considerations such as VLAN, IP, routing, and Mpls of the entire network.

* Convenient maintenance: The configurations and software versions of all access devices are automatically assigned by the master device. The hot swappable and zero configurations can be implemented when the new device is added or removed. This does not affect the normal operation of other devices. Troubleshooting is also a single point.

SDN (software defined network)

Software Defined Network (SDN) is an innovative network architecture system. Its core technology Openflow passes the control layer of the network and The data forwarding layer is separated, which greatly simplifies the management and maintenance of the network. More importantly, it realizes flexible control of network traffic and provides innovation for core networks and applications. Provide a good network platform.

The S5130-HI series switches support large-scale flow tables. The H3C SDN controller can easily implement large-scale Layer 2 architecture networking and provide rapid addition to existing networks. The function of the user; the cost of network maintenance can be significantly reduced while greatly simplifying the difficulty of network management.

Complete security control strategy

The H3C S5130-HI series switches support the EAD (Terminal Admission Control) function. The back-end system can integrate terminal security measures such as terminal anti-virus and patch repair with network security measures such as network access control and access control to form a coordinated security. The system, through the inspection, isolation, repair, management and monitoring of the network access terminal, makes the entire network become passive defense for active defense, change single point defense for comprehensive defense, and decentralized management for centralized policy management, improving network to virus The overall defense capabilities of emerging security threats such as worms.

The H3C S5130-HI series switches support centralized MAC address authentication, 802.1x authentication, and PORTAL authentication. They support dynamic or static binding of user IDs such as user accounts, IP, MAC, VLAN, and port, and implement user policies (VLAN, QoS). Dynamic release of ACLs; support for real-time management of online users with H3C's iMC system, timely diagnosis and disintegration of network illegal behavior.

The H3C S5130-HI series switches provide enhanced ACL control logic, support for large-capacity ingress and egress port ACLs, and support VLAN-based ACL delivery. This simplifies the user configuration process and avoids the waste of ACL resources. In addition, the S5130-HI series will also support unicast reverse path lookup technology (uRPF). The principle is that when a packet is received on an interface of the device, the path is reversely searched to verify whether there is a packet from the receiving interface. The routing between the source addresses is verified, and the authenticity is verified. If it does not exist, the data packet is deleted, so that we can effectively eliminate the increasingly widespread source address spoofing in the network.

Professional lightning protection

The H3C S5130-HI series switches adopt professional built-in lightning protection technology to support the lightning protection capability of the industry-leading 10KV service port, which can greatly reduce the damage rate of lightning strikes on equipment in the harsh working environment.

Multiple reliability protection

The S5130-HI series switches have multiple reliability protections at the device level and link level.

The S5130-HI series switches support pluggable AC and DC power modules and pluggable dual-fan reliability. The AC or DC power modules can be flexibly configured according to the needs of the actual environment. In addition, the S6130-HI series supports power and fans. Fault detection and alarms can automatically adjust the fan speed according to temperature changes. These designs make the equipment more reliable.

In addition to device-level reliability, the product also supports a variety of link-level reliability technologies, including protection protocols such as LACP/STP/RSTP/MSTP/Smart Link/RRPP fast ring network protection mechanism, and supports IRF2 intelligent elastic architecture. : N redundancy backup, which supports ring stacking and supports link aggregation across devices. This greatly improves network reliability. When the network carries multiple services and large traffic, it does not affect the convergence time of the network.

Rich QoS strategy

The H3C S5130-HI series switches support L2 (Layer 2) to L4 (Layer 4) packet filtering, providing source MAC address, destination MAC address, source IP address, destination IP address, TCP/UDP port number, protocol type, and VLAN traffic classification. Provides a flexible pair scheduling algorithm that can be set based on ports and queues at the same time. It supports five modes: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR, WFQ, and WDRR. Supports the CAR (Committed Access Rate) function with a minimum granularity of 8Kbps. Supports port mirroring in both directions. It is used to monitor packets on the specified port and copy the packets on the port to the monitoring port for network detection and troubleshooting.

Enhanced Power over Ethernet (PoE+)

H3C S5130-HI series switches support 802.3af/802.3at enhanced Ethernet power supply function, single port maximum 30W output power, can be 802.11n wireless access point, visible IP phone, high power surveillance camera and more The terminal device provides Ethernet power supply capability, and supports multiple types of PoE power supply modules to achieve flexible PoE output capability. It can also provide 1440W PoE power supply capability for a single port, and achieve 48-port PoE+ full power supply.

Our Certificates

Product packaging

1. DHL / UPS / FedEx / TNT , Door-to-Door.

2. By Air or by Sea , for FCL; Airport/ Port receiving.
3. Customers Specifying Freight Forwarders or Negotiable Shipping Methods.
We will choose the best and safe packaging material to make sure your orders won't be
damaged during delivery.
