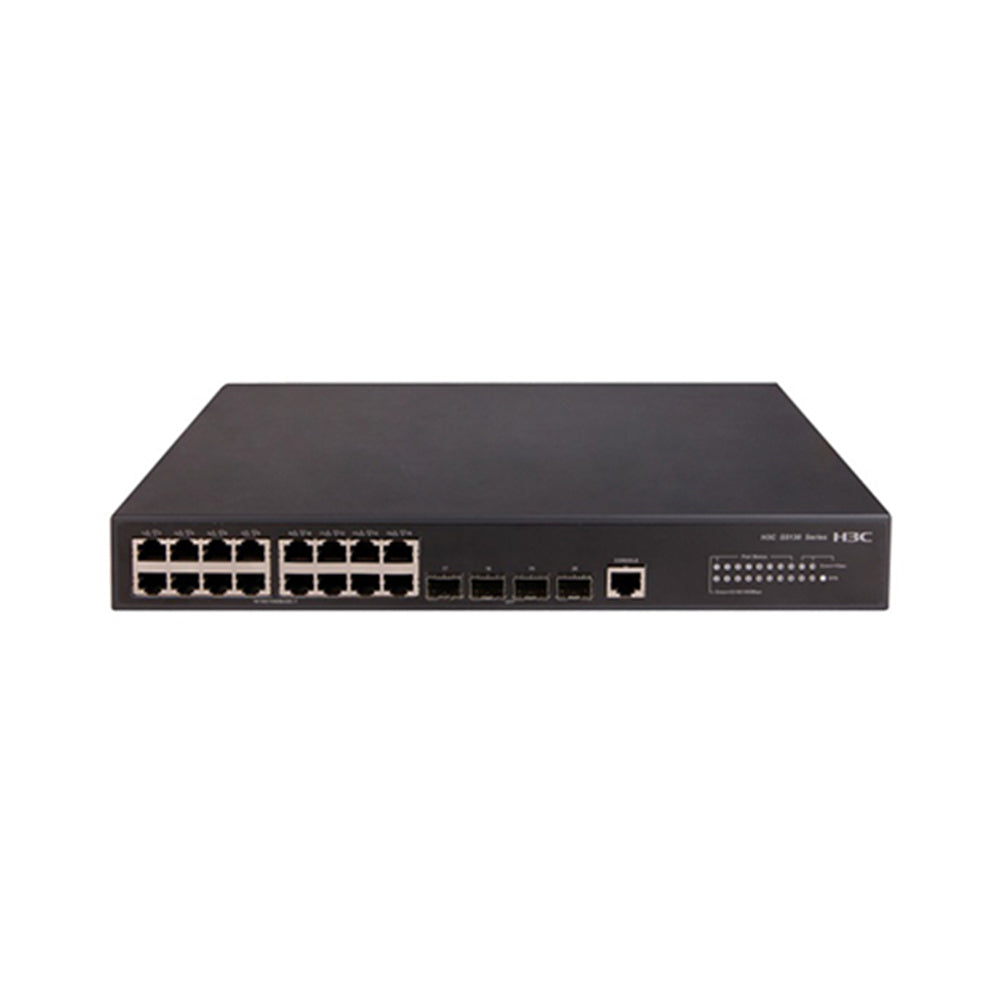

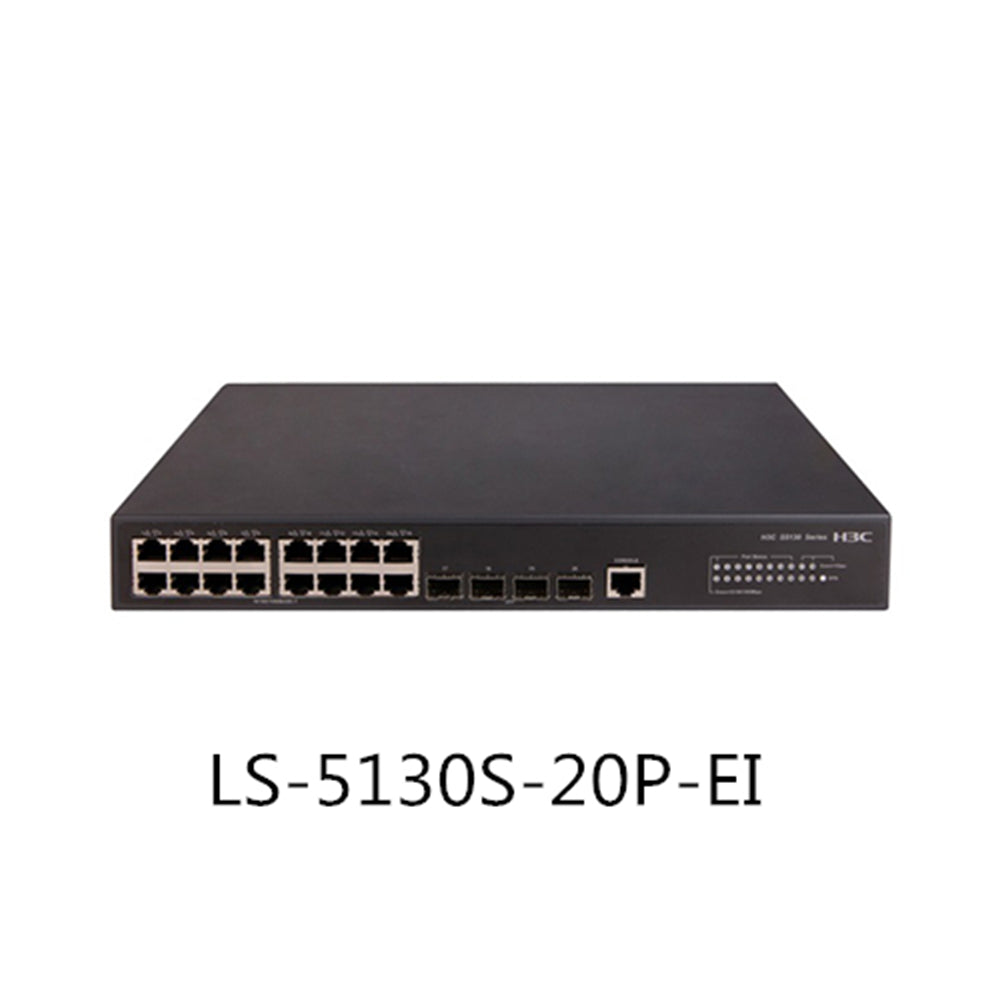

H3C S5130S-20P-EI Ethernet Switch 16 Gigabit Electric 4 Gigabit Optical SFP Network Management Switch
Save 2%
$350.00
$343.00
SKU LS-5130S-20P-EI
Quick Details:
-
Products Status:Stock, Used
-
Ports:20
-
Transmission Rate:10/100/1000Mbps
-
Function:LACP, POE, QoS, SNMP, Stackable, VLAN Support
-
Communication Mode:Full-Duplex
-
Certification:Radius
-
Switch Capacity:336Gbps
-
Brand Name:H3C
-
Model Number:LS-5130S-20P-EI
-
Place of Origin:Guangdong, China
-
Warranty:One Year
-
Dimensions (W x D x H):330*230*43.6mm
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time:
| Quantity(Pieces) | 1 - 1 | >1 |
| Est. Time(days) | 30 | To be negotiated |
Product Description:
|
Supporting features
|
S5130S-20P-EI
|
|
Switching capacity (full duplex)
|
336Gbps/3.36Tbps
|
|
Packet forwarding rate
(Whole machine) |
30Mpps/102Mpps
|
|
Dimensions
(W × D × H) (Unit: mm) |
330×230×43.6
|
|
Weight
|
≤3kg
|
|
Management port
|
1 Console port
|
|
Service port description
|
16 10/100 /
1000Base-T adaptive Ethernet port 4 Gigabit SFP ports |
|
Input voltage
|
AC:
Rated voltage range: 100V ～ 240V A.C, 50 / 60Hz |
|
Machine power consumption
|
AC
MIX:9W MAX:19W |
|
Working temperature
|
-5℃～45℃
|
|
Relative humidity
(Non-condensing) |
5%～95%
|
|
Link aggregation
|
Support GE port aggregation
Support 10GE port aggregation Support for static aggregation Supports dynamic aggregation Support cross-device aggregation |
|
Flow control
|
Support 802.3x flow control and half-duplex back pressure flow control
|
|
Jumbo Frame
|
Support
|
|
MAC address table
|
Support black hole MAC address
Support setting the maximum number of port MAC address learning |
|
SDN/Openflow
|
Supports OpenFlow 1.3 standard
Support multiple controllers (EQUAL mode, active / standby mode) Support multi-table pipeline Support Group table Support Meter |
|
VLAN
|
Support port-based VLAN
Support QinQ and selective QinQ Support Voice VLAN Support protocol VLAN Support MAC VLAN |
|
ARP
|
Supports free ARP
Support ARP Detection function (can check based on DHCP snooping security entries, 802.1x entries, or IP / MAC static binding entries) Support ARP rate limit |
|
ND
|
Support ND
Support ND Snooping |
|
VLAN virtual interface
|
Support
|
|
DHCP
|
Support DHCP Client
Support DHCP Snooping Support DHCP Relay Support DHCP Server Supports DHCP Option82 |
|
DNS
|
Supports static domain name resolution
Support for dynamic domain name resolution clients Supports IPv4 and IPv6 addresses |
|
Unicast routing
|
Support IPv4 / IPv6 static routing
Support RIP / RIPng, OSPF |
|
Multicast
|
Support IGMP Snooping
Support MLD Snooping Supports multicast VLAN |
|
Broadcast / Multicast /
Unicast storm suppression |
Support storm suppression based on port rate percentage
Support PPS-based storm suppression Supports bps-based storm suppression |
|
Layer 2 ring
network protocol |
Support STP / RSTP / MSTP protocol
Support STP Root Protection Supports BPDU Protection Support G.8032 Ethernet ring protection protocol ERPS, switching time ≤50ms, compatible with other products supporting this protocol Support RRPP |
|
SmartLink
|
Support
|
|
QoS/ACL
|
Support 802.1p / DSCP priority marking
Support packet filtering function Support SP / WRR / SP + WRR queue scheduling Support port-based rate limiting Supports stream-based redirects Support time period |
|
Mirror
|
Support port mirroring
Support remote mirroring |
|
Safety features
|
Support user hierarchical management and password protection
Support AAA authentication Support Radius authentication Support HWTACACS Support SSH2.0 Support port isolation Support 802.1X Support port security Support MAC address authentication Supports IP Source Guard Supports HTTPs Support PKI (Public Key Infrastructure, Public Key Infrastructure) Support EAD |
|
802.1X
|
Support 802.1X authentication
Support port-based authentication and MAC-based authentication Guest VLAN support Support TRUNK port authentication Support 802.1x dynamic delivery of QoS / ACL / VLAN |
|
Loading and upgrading
|
Support XModem protocol for loading upgrade
Support FTP (File Transfer Protocol) loading and upgrading Support TFTP (Trivial File Transfer Protocol) loading and upgrading |
|
Management
|
Support command line interface (CLI) configuration
Support Telnet remote configuration Support configuration through console port Supports SNMP (EImple Network Management Protocol) Support RMON (Remote Monitoring) alarm, event, history Support iMC network management system Support WEB network management Support system log Support hierarchical alarm Support IRF Support NTP Support power, fan, temperature alarm |
|
Maintain
|
Support debugging information output
Support Ping, Tracert Support Telnet remote maintenance Support NQA Support 802.1ag Support 802.3ah Support DLDP Supports Virtual Cable Test |
