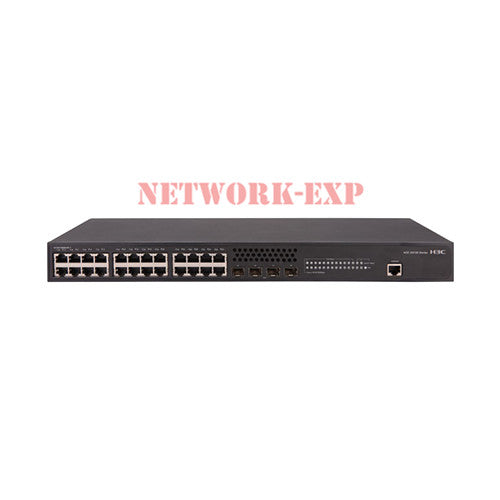

H3C S5130S-28P-EI-GL Ethernet Switch

Name: H3C S5130S-28P-EI-GL Ethernet Switch
Brand: Network Exp
Price: 363.0 USD
Availability: InStock

$363.00

SKU

Product Feature

Software Defined Network (SDN)
Intelligent Resilient Framework 2 (IRF2)
Intelligent Resilient Framework 3.1 (IRF3.1)
Comprehensive Security Control Policies
Abundant QoS
Excellent manageability
Smart Management Center (SmartMC)
High Availability
Professional Anti-lightning

Quantity

Description
Reviews

Click here to jump to Amazon to buy

Overview

H3C S5130S-EI Switch Series –A simple, cost-effective and easy to deploy Layer 2+ access switching solution with POE+ that offers enhanced security, high-density GEand 10GbE uplinks, static route, RIP, OSPF, SDN and IRF enabled, flexible management, which meet the requirements for SME access, enterprise desktop access and high density campus access.

Click Here to Download Datasheet

Hardware Specifications

Feature	S5130 S-10P- EI	S5130 S-12TP-EI	S5130 S-20P-EI	S5130 S-28P- EI	S5130 S-52P- EI	S5130 S-10P-HPWR-EI	S5130 S-12TP-HPWR-EI	S5130 S-20P- PWR- EI	S5130S-28P-PWR- EI	S5130S-28P-HPWR-EI	S5130S-52P-PWR- EI
Switching capacity	20Gbps	24Gbps	40Gbps	56Gbps	104Gbps	20Gbps	24Gbps	40Gbps	56Gbps	56Gbps	104Gbps
Forwarding capacity	15 Mpps	18 Mpps	30 Mpps	42 Mpps	78 Mpps	15 Mpps	18 Mpps	30 Mpps	42 Mpps	42 Mpps	78 Mpps
Dimensions (W × D × H)	266× 161× 43.6	266× 161× 43.6	330× 230× 43.6	440× 160× 43.6	440× 230× 43.6	330× 230× 43.6	330× 230× 43.6	330× 230× 43.6	440× 260× 43.6	440× 260× 43.6	440× 400× 43.6
Weight	≤1.5 kg	≤1.5 kg	≤2 kg	≤2.5 kg	≤3.5 kg	≤3kg	≤3kg	≤3kg	≤4kg	≤4.5kg	≤6kg
10/100/1000B ase-T port	8	8+2 (Combo with first 2 SFP ports)	16	24	48	8	8+2 (Combo with first 2 SFP port)	16	24	24	48
SFP port	2	4	4	4	4	2	4	4	4	4 (Combo)	4
Input voltage	AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range -54V～-57V DC (S5130S-52P-PWR-EI, S5130S-28P-HPWR-EI with RPS1600-A)
Flash/SDRAM	256MB/512MB
Power consumption (full configuration)	12W	15W	19W	23W	41W	153W (includ- ing 125W PoE)	156W (include- ing 125W PoE)	263W (include- ing 210W PoE)	240W (include-ing 190W PoE)	446W (include-ing 370W PoE)	467W (include-ing 370W PoE)
Operating temperature	0°C~45°C
Operating relative humidity(noncondensing)	5%~95%
