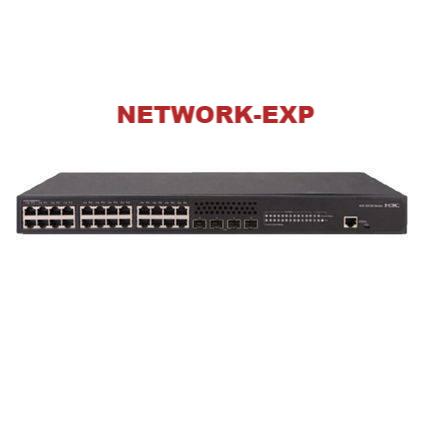

H3C S5130S-28S-LI L2 Ethernet Switch
H3C S5130S-28S-LI L2 Ethernet Switch
Couldn't load pickup availability
Product Feature
- Abundant Service Capabilities
- IRF2 (Intelligent Resilient Framework 2)
- Abundant QoS Policies
- Comprehensive security control policies
- Excellent Manageability
- Rich Layer 3 routing features
- **Power NEEDED to utilize the product**
- **One power must work with at least one fan, two recommended**
[qiege]
Product Overview
H3C S5130S-LI is the latest development of Gigabit speed Layer 2 Ethernet switch. It’s the second generation intelligent managed switches designed for networks requiring high performance, high port density, high uplink bandwidth and easy to use. H3C S5130S-LI series switch offers Gigabit connectivity and large uplink bandwidth with10/100/1000 autosensing ports and 10G SFP+ uplink. H3C S5130S-LI series switch includes two models as follows:
- S5130S-28S-LI: 24-port 10/100/1000TX Ethernet, 4-port SFP+
Click Here to Download Datasheet
Hardware Specifications
|
Item |
S5130S-28S-LI |
S5130S-52S-LI |
|
Switching capacity |
128Gbps |
176Gbps |
|
Packet forwarding rate |
96Mpps |
132 Mpps |
|
Dimensions (H × W × D) |
43.6 × 440 × 160 mm |
43.6 × 440 × 230 mm |
|
Weight |
< 2.5 kg |
< 3.5 kg |
|
Console ports |
1 |
|
|
Service ports |
24-port 10/100/1000Base-T 4-port SFP+ |
48-port 10/100/1000Base-T 4-port SFP+ |
|
Input voltage range |
100 VAC to 240 VAC @ 50 Hz/60 Hz |
|
|
Power consumption |
MIN AC: 10W MAX AC: 24W |
MIN AC: 19W MAX AC: 44W |
|
Operating temperature |
0ºC to 45ºC |
|
|
Operating humidity |
10% RH to 90% RH, non-condensing |
|
|
Stacking |
Intelligent Resilient Framework 2 (IRF2) |
|
|
Link aggregation |
GE/10GE port aggregation Static aggregation Dynamic aggregation M-LAG |
|
|
Jumbo frame |
Supported |
|
|
MAC address table |
Blackhole MAC address MAC learning limit |
|
|
Flow control |
802.3x flow control and half-duplex backpressure |
|
|
VLAN |
Port-based VLAN QinQ Voice VLAN MAC VLAN |
|
|
ARP |
ARP Detection ARP speed limit |
|
|
ND |
Supported |
|
|
VLAN virtual port |
Supported |
|
|
DHCP |
DHCP Client DHCP Snooping DHCP Relay DHCP Server DHCP Option82 |
|
|
DNS |
Static and Dynamic DNS IPV4 and IPV6 |
|
|
Routing protocols |
IPV4/IPV6 static routing RIP/RIPng, OSPFV1/V2/V3 |
|
|
Strom suppression |
Storm suppression based on port bandwidth percentage Storm suppression based on PPS |
|
|
Layer 2 ring network protocol |
STP/RSTP/MSTP STP Root Protection Smart Link RRPP |
|
|
Mirroring |
Flow mirroring Port mirroring |
|
|
QoS/ACL |
Packet filter Flexible queue scheduling algorithms based on ports and queues, including SP, WRR and SP+WRR Bidirectional ACL Port-based speed limit Flow redirection Time-range |
|
|
Layer 2 ring network protocol |
STP/RSTP/MSTP STP Root Protection Smart Link RRPP |
|
|
Security |
Hierarchical user management and password protection MAC-based authentication 802.1X SSH2.0 Port isolation IP source guard HTTPs EAD |
|
|
Loading and upgrading |
Loading and upgrading through FTP/TFTP |
|
|
Management and maintenance |
Configuration from CLI Login through Telnet, and the console port Simple Network Management Protocol (SNMP) Remote Monitoring (RMON) IMC network management system WEB management System log Alarming based on severity IRF NTP Debugging information output Telnet-based remote maintenance NQA DLDP Virtual Cable Test |
|
