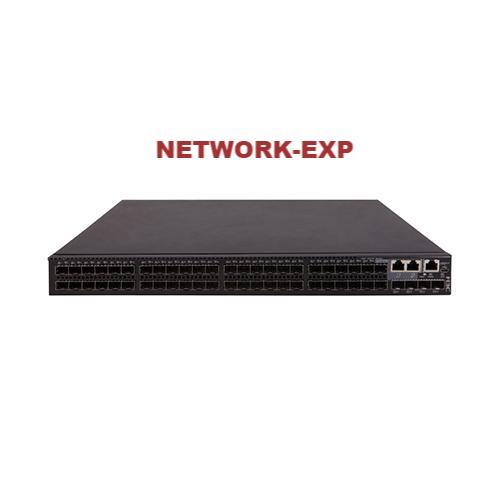

H3C S5130S-52F-EI L2 Ethernet Switch
H3C S5130S-52F-EI L2 Ethernet Switch
Couldn't load pickup availability
Product Feature
- Software Defined Network (SDN)
- Intelligent Resilient Framework 2 (IRF2)
- Intelligent Resilient Framework 3.1 (IRF3.1)
- Comprehensive Security Control Policies
- Abundant QoS
- Excellent manageability
- Smart Management Center (SmartMC)
- High Availability
- Professional Anti-lightning
[qiege]
Click here to jump to Amazon to buy
Overview
H3C S5130S-EI Switch Series –A simple, cost-effective and easy to deploy Layer 2+ access switching solution with POE+ that offers enhanced security, high-density GEand 10GbE uplinks, static route, RIP, OSPF, SDN and IRF enabled, flexible management, which meet the requirements for SME access, enterprise desktop access and high density campus access.
Click Here to Download Datasheet
Hardware Specifications (continued)
|
Feature |
S5130S-28S-EI |
S5130S-52S-EI |
S5130S-28F-EI |
S5130S-52F-EI |
S5130S-28TP-EI |
S5130S-52TP-EI |
S5130S-28S- PWR-EI |
S5130S-28S- HPWR-EI |
S5130S-52S- PWR-EI |
|
Switching capacity |
128Gbps |
176Gbps |
128Gbps |
176Gbps |
56Gbps |
104Gbps |
128Gbps |
128Gbps |
176Gbps |
|
Forwarding capacity |
96Mpps |
132Mpps |
96Mpps |
132Mpps |
42Mpps |
78Mpps |
96Mpps |
96Mpps |
132Mpps |
|
Dimensions (W × D × H) |
440×160 ×43.6 |
440×230 ×43.6 |
440×360 ×43.6 |
440×360 ×43.6 |
440×160 ×43.6 |
440×260 ×43.6 |
440×260 ×43.6 |
440×260 ×43.6 |
440×400 ×43.6 |
|
Weight |
≤ 2.5kg |
≤3.5 kg |
≤6kg |
≤6.5kg |
≤2kg |
≤3.5kg |
≤4kg |
≤4.5kg |
≤6kg |
|
10/100/1000 Base-T port |
24 |
48 |
8(Combo) |
2 (Combo) |
24 (2 Combo) |
48 (2 Combo) |
24 |
24 |
48 |
|
SFP port |
- |
- |
24 |
48 |
4 |
4 |
- |
4 (Combo) |
- |
|
SFP+ port |
4 |
4 |
4 |
4 |
- |
- |
4 |
4 |
4 |
|
Input voltage |
AC: Rated voltage range: 100V~240V AC, 50/60Hz DC: Rated voltage range -48V～-60V (For S5130S-52F-EI with PSR150-D1) DC: Rated voltage range -54V～-57V DC (For S5130S-52P-PWR-EI, S5130S-28P-HPWR-EI with RPS1600-A) |
||||||||
|
Flash/SDRAM |
256MB/512MB |
||||||||
|
Power consumption (full configuration) |
24W |
44W |
Single AC: 48W Single DC: 51W Dual AC: 55W Dual DC: 57W |
Single AC: 74W Single DC: 84W Dual AC: 95W Dual DC: 95W |
24W |
42W |
245W (including 190W PoE) |
451W (including 370w PoE) |
478W (including 370w PoE) |
|
Operating temperature |
0°C~45°C |
||||||||
|
Operating relative humidity(noncondensing) |
5%~95% |
||||||||
