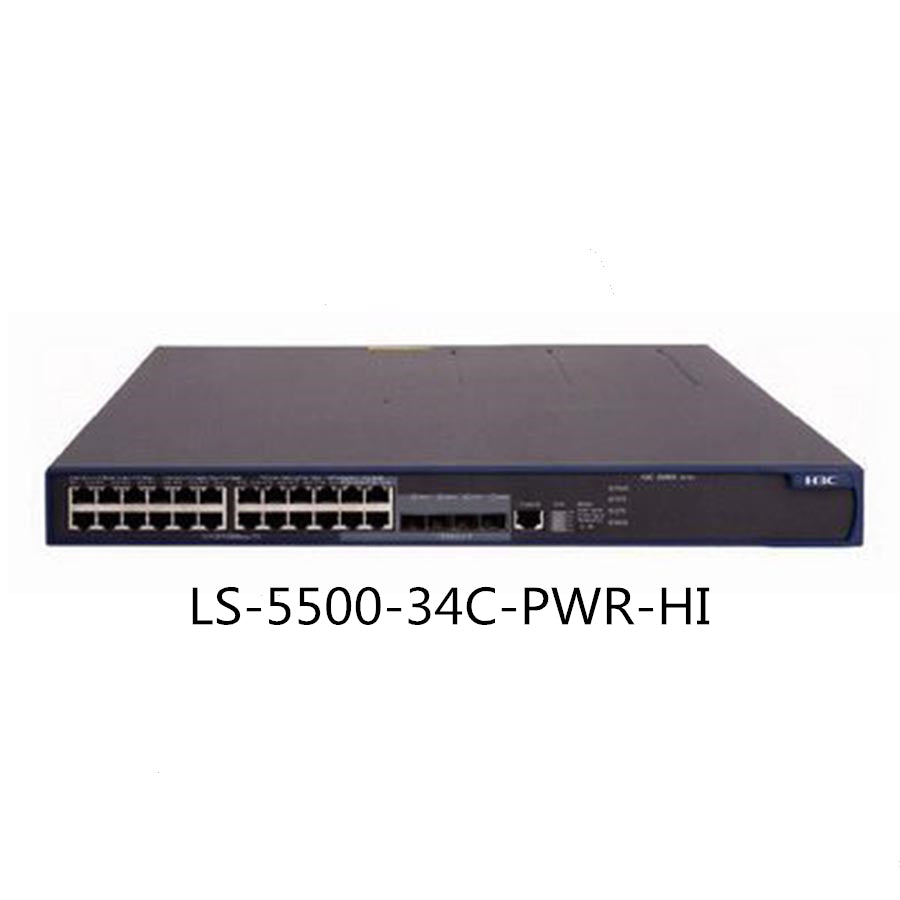

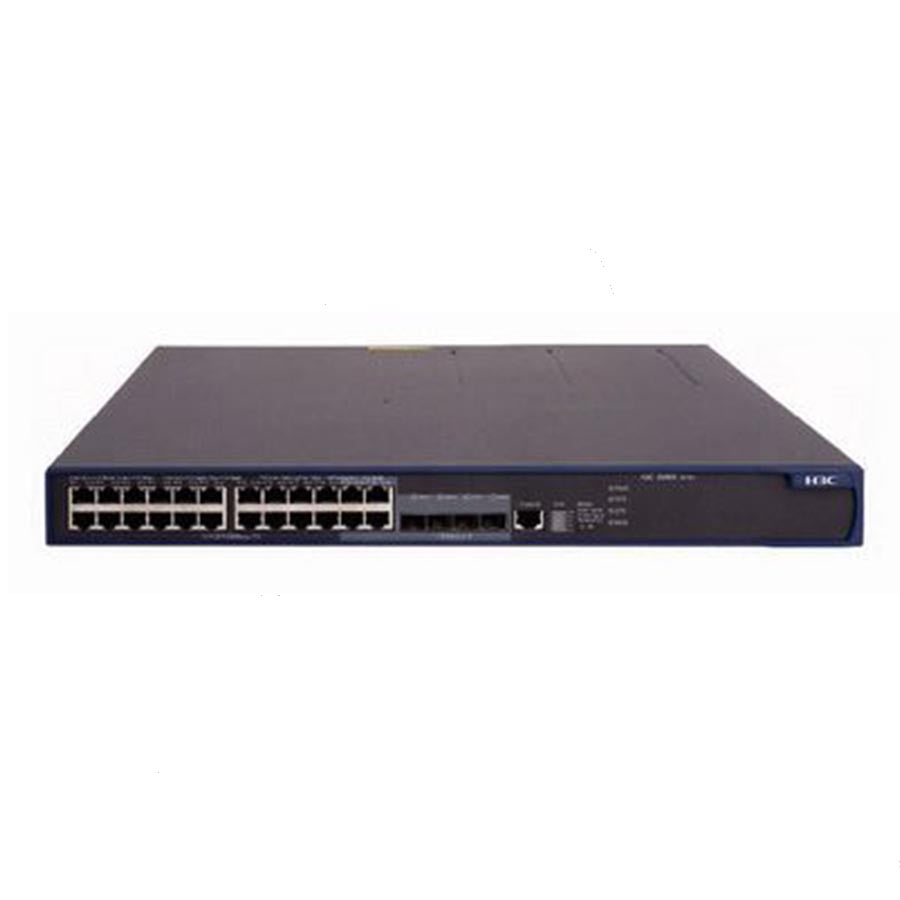

H3C S5500-34C-PWR-HI 24-port PoE switch Ethernet POE Switch Host
Save 14%
$3,000.00
$2,580.00
SKU LS-5500-34C-PWR-HI
Quick Details:
Products Status:Stock
Ports:24 port
Transmission Rate:10/100/1000Mbps
Function:QoS
Communication Mode:Full-Duplex
Certification:RADIUS
Switch Capacity:368Gbps/3.68T
Brand Name:H3C
Model Number:LS-5500-34C-PWR-HI
Place of Origin:Guangdong, China
Warranty:1year
Dimensions (W x D x H)：440*360*43.6mm
Packaging & Delivery:
Packaging Details:1.Anti-static bag for each hdd.
2.each goods use Foam buffer protect from friction
3.The goods be packed very well ,can ship to all over the world
Port: HongKong
Lead Time :
Quantity(Pieces) |
1 - 1 |
>1 |
Est. Time(days) |
30 |
To be negotiated |
Product Description:
|
Support features
|
S5500-34C-HI /S5500-34C-PWR-HI
|
S5500-58C-HI/ S5500-58C-PWR-HI
|
S5500-34F-HI
|
||
|
Exchange capacity
|
368Gbps/3.68T
|
||||
|
Packet forwarding rate (machine)
|
132Mpps
|
168Mpps
|
132Mpps
162Mpps* |
||
|
Dimensions (length × width × height)
(Unit: mm) |
440×360×43.6
|
440×420 ×43.6
|
440×360×43.6
|
||
|
weight
|
7.5kg/9.5kg
|
8.5kg/10.5kg
|
< 7.5kg
|
||
|
Management port
|
1 console port, 1 outlet port
|
||||
|
Service port description
|
24 10/100/1000Base-T Ethernet ports
4 1000Base-X Gigabit SFP ports 2 SFP + ports |
48 10/100/1000Base-T Ethernet ports
4 1000Base-X Gigabit SFP ports 2 SFP + ports |
24 100/1000Base-X Gigabit SFP ports
4 10/100/1000Base-T Ethernet ports 2 SFP+ ports |
||
|
Expansion slot
|
2 expansion slots
|
||||
|
Optional interface module
|
Single port 10GE XFP interface module
Two-port 10GE XFP interface module Two-port 10GE CX4 interface module Two-port SFP+ interface module Two-port SFP interface module Eight-port SFP interface module (S5500-34C-HI is only supported by Slot1) Eight-port 10/100/1000Base-T electrical interface module (S5500-34C-HI is only supported by Slot1) |
||||
|
Power over Ethernet
|
Support 802.3af and 802.3at (PWR models only)
|
Support 802.3af and 802.3at (PWR models only)
|
Support 802.3af and 802.3at (PWR models only)
|
||
|
Port aggregation
|
Support LACP
Support manual aggregation Supports up to 128 aggregation groups, each supporting up to 8 GE or 4 10GE ports |
||||
|
Port characteristics
|
Support IEEE802.3x flow control (full duplex)
Supports storm suppression based on port rate percentage Support PPS-based storm suppression |
||||
|
MAC address table
|
Support 32K MAC address
Support black hole MAC address Supports setting the maximum number of port MAC addresses. |
||||
|
VLAN
|
Support for port-based VLANs (4K)
Support for MAC-based VLANs Protocol-based VLAN IP subnet-based VLAN Support QinQ, flexible QinQ Support VLAN mapping Support for Voice VLAN Support GVRP |
||||
|
Layer 2 ring network protocol
|
Support STP/RSTP/MSTP
Support RRPP |
||||
|
DHCP
|
DHCP Client
DHCP Snooping DHCP Relay DHCP Server DHCP Snooping option82/DHCP Relay option82 |
||||
|
IRF2
Intelligent flexible architecture |
Support IRF2 intelligent flexible architecture
Support distributed device management, distributed link aggregation, distributed elastic routing Support stacking through standard Ethernet interfaces, etc. Support local stacking and remote stacking |
||||
|
IP routing
|
Support static routing
Support RIPv1/v2, RIPng Support OSPFv1/v2, OSPFv3 Support BGP4, BGP4+ for IPv6 Support equal cost routing, policy routing Support VRRP/VRRPv3 |
||||
|
IPv6
|
Support ND (Neighbor Discovery)
Support PMTU Support IPv6-Ping, IPv6-Tracert, IPv6-Telnet, IPv6-TFTP Support manual configuration of the tunnel Support 6to4 tunnel Support for ISATAP tunnel Support IPv6 in IPv6 tunnel Support IPv4 in IPv6 tunnel Support GRE tunnel |
||||
|
Multicast
|
Supports IGMP Snooping v1/v2/v3, MLD Snooping v1/v2
Support PIM Snooping Support MLD Proxy Support for multicast VLAN Support IGMP v1/v2/v3, MLD v1/v2 Support PIM-DM, PIM-SM, PIM-SSM Support MSDP, MSDP for IPv6 Support MBGP, MBGP for Ipv6 |
||||
|
MPLS
|
Support MPLS forwarding, including MPLS LER/MPLS LSR
Support LSP Support LDP Support MPLS TE Support L2VPN Support L3VPN Support VPLS Support MCE |
||||
|
Mirror
|
Support for flow mirroring
Support N: 4 port mirroring Support for local and remote port mirroring |
||||
|
Support ACLQoS
|
Support L2 (Layer 2) ~ L4 (Layer 4) packet filtering function, providing source MAC address, destination MAC address, source IP
(IPv4/IPv6) address, destination IP (IPv4/IPv6) address, TCP/UDP port number, VLAN traffic classification Support Time Range ACL Supports two-way ACL policies in the inbound and outbound directions Supports sending ACLs based on VLANs. Support HQOS |
||||
|
Limits the rate at which packets are received on the port and the rate at which packets are sent.
Support packet redirection Support CAR (Committed Access Rate) function Each port supports 8 output queues, and the CPU port supports 48 queues. Supports flexible queue scheduling algorithms, which can be set based on ports and queues simultaneously, and supports SP, WRR, and SP+WRR modes. Supports 802.1p and DSCP priority re-marking of packets |
|||||
|
Safety features
|
Support user hierarchical management and password protection
Support 802.1X authentication/centralized MAC address authentication Support Guest VLAN Support RADIUS authentication Support for SSH 2.0 Support port isolation Support port security Support PORTAL certification Support EAD DHCP snooping can be supported to prevent fraudulent DHCP servers Support dynamic ARP detection to prevent man-in-the-middle attacks and ARP denial of service Support BPDU guard, Root guard Support uRPF (unicast reverse path detection), eliminate IP source address spoofing, prevent viruses and attacks Support IP/Port/MAC binding function Supports plain text and MD5 cipher text authentication for OSPF and RIPv2 packets. |
||||
|
Management and maintenance
|
Support XModem/FTP/TFTP load upgrade
Supports command line interface (CLI), Telnet, and console port configuration. Support SNMPv1/v2/v3, WEB network management Support RMON (Remote Monitoring) alarms, events, history Support iMC Intelligent Management Center Support system log, hierarchical alarm, debugging information output Support HGMPv2 Support NTP Support power supply alarm function, fan, temperature alarm Support Ping, Tracert Support VCT (Virtual Cable Test) cable detection function Supports the Device Link Detection Protocol (DLDP) unidirectional link detection protocol. Support LLDP Support loopback-detection port loopback detection Support IPFIX Support one-click energy saving Support Ethernet time synchronization 1588v2 |
||||
|
powered by
|
interflow
|
Rated voltage range: 100V ~ 240V AC, 50/60Hz
Maximum voltage range: 90V ~ 264V AC, 47/63Hz |
|||
|
DC
|
Rated voltage range:
-48V to -60V DC |
||||
|
Power consumption (at full load)
|
Non-POE model: 141W
POE model: AC power supply: The maximum power consumption is 920W, of which the system power consumption is 200W, and the POE external power supply is 720W. |
Non-POE model: 191W
POE model: AC power supply: The maximum power consumption is 1820W, of which the system power consumption is 380W, and the external power supply of the POE is 1440W. |
135W
|
||
|
Working temperature
|
-5℃～50℃
|
||||
|
Working environment relative humidity (non-condensing)
|
10%～90%
|
||||
